Diagram image not available

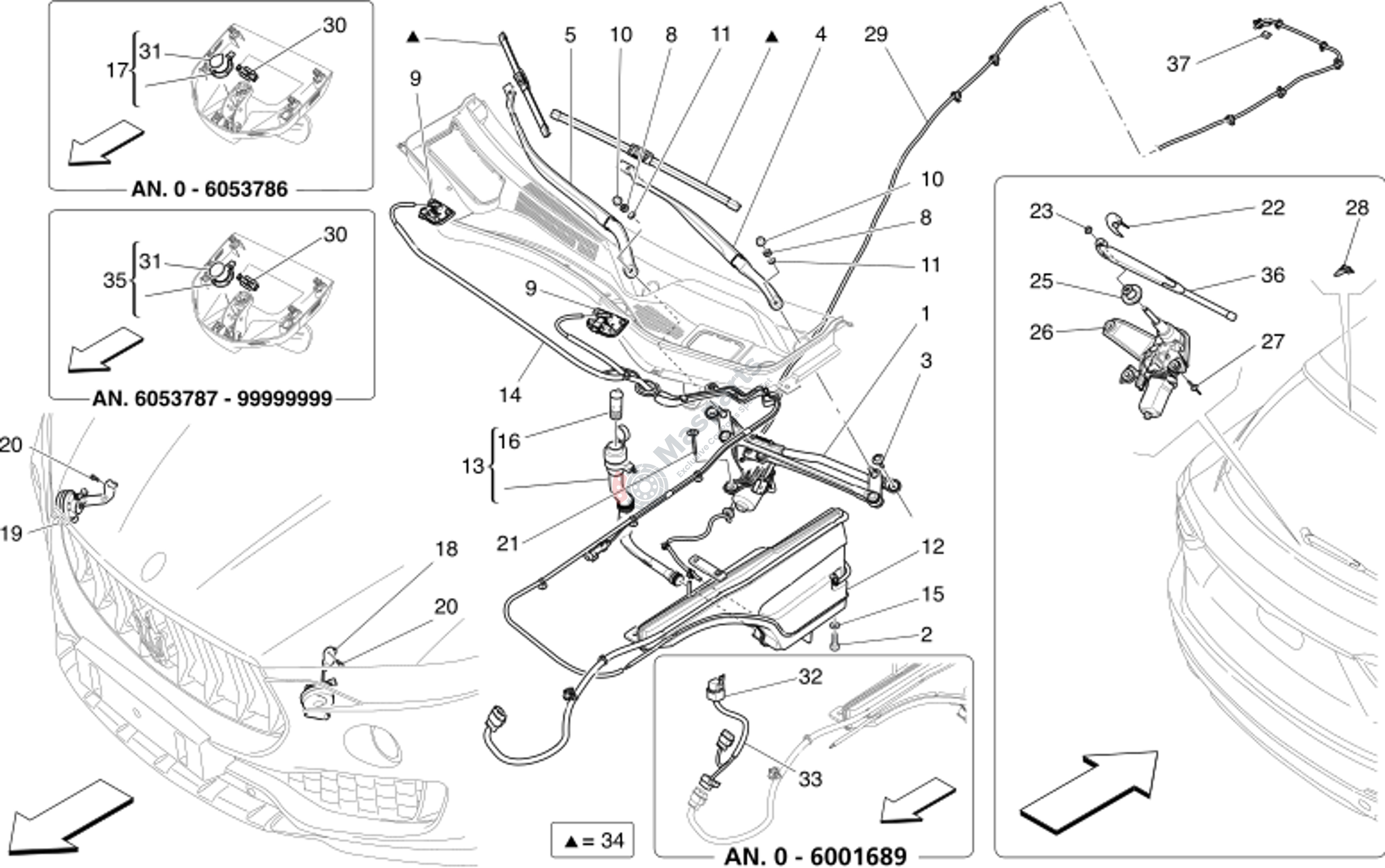

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105984 | Windshield Wiper Motor |
$412.75 |
|
|
| 2 | M-670030635 | Screw |
$2.09 |
|
|
| 3 | M-670005392 | Screw |
$3.87 |
|
|
| 4 | M-670032335 | Lh Windscreen Wiper Arm |
$166.27 |
|
|
| 5 | M-670032336 | Passenger Side Windscreen Wiper Arm |
$147.91 |
|
|
| 8 | M-675000175 | Nut |
$1.00 |
|
|
| 10 | M-670007188 | Protection Boot. |
$1.11 |
|
|
| 11 | M-675000176 | Washer |
$1.13 |
|
|
| 12 | M-670034637 | Windscreen Washer Tank |
$227.18 |
|
|
| 13 | M-670032344 | Windshield Washer Hose |
$42.40 |
|
|
| 14 | M-670037605 | Windshield Washer Hose |
$106.34 |
|
|
| 15 | M-670030893 | Special Washer |
$2.92 |
|
|
| 20 | M-675000433 | Screw |
$1.66 |
|
|
| 21 | M-670005392 | Screw |
$3.87 |
|
|
| 22 | M-670037445 | Cap |
$10.13 |
|
|
| 23 | M-675000582 | Nut |
$1.25 |
|
|
| 25 | M-670035110 | Gasket |
$11.21 |
|
|
| 26 | M-675000620 | Rear Liftgate Windscreen Wip |
$106.61 |
|
|
| 27 | M-675000593 | Rivet |
$1.50 |
|
|
| 28 | M-675000581 | Rear Window Washer Jets M161 |
$4.72 |
|
|
| 29 | M-670033525 | Hose Liftgate Washer |
$40.24 |
|
|
| 30 | M-675000651 | Clip Rain Sensor |
$5.71 |
|
|
| 34 | M-673013657 | Lhd Wiper Set |
$60.05 |
|
|
| 36 | M-670107927 | Rear Liftgate Window Wiper A |
$45.05 |
|
|
| 37 | M-675002230 | Clip |
$3.24 |
|
