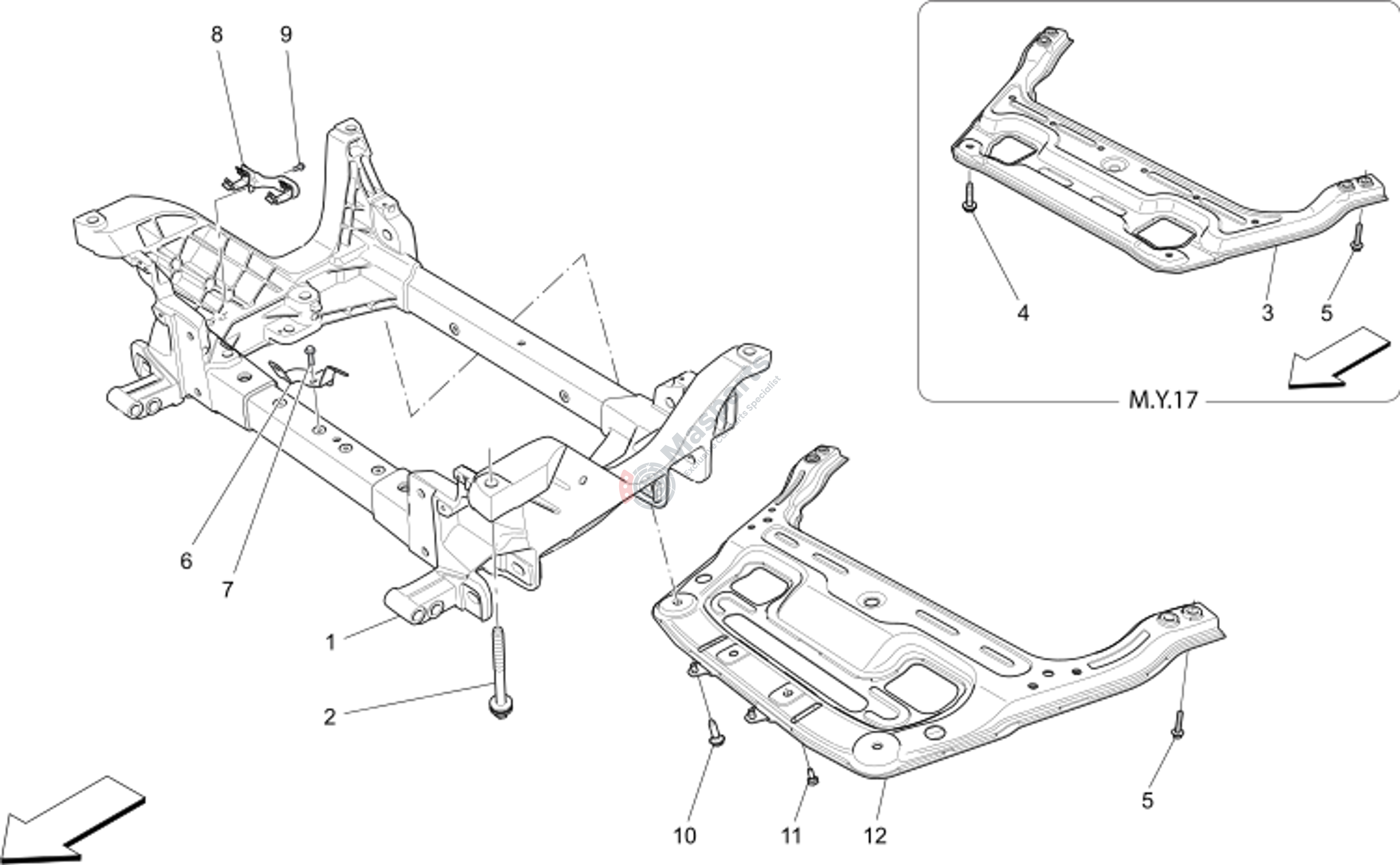

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670175137 | Front Suspension Frame M161 |
$2,226.94 |
|
|
| 2 | M-670002915 | Screw |
$14.19 |
|
|
| 5 | M-670035436 | Screw ˇ |
$2.44 |
|
|
| 6 | M-670102975 | Bracket |
$6.30 |
|
|
| 7 | M-670101724 | Screw & Washer Captive |
$3.87 |
|
|
| 8 | M-670100023 | Water Pump Fastening Bracket |
$5.02 |
|
|
| 9 | M-670101724 | Screw & Washer Captive |
$3.87 |
|
|
| 10 | M-670102972 | Screw & Washer Caprive |
$3.06 |
|
|
| 11 | M-670102973 | Screw |
$4.97 |
|
|
| 12 | M-670105640 | Crossmember Reinforcement |
$469.59 |
|
