Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

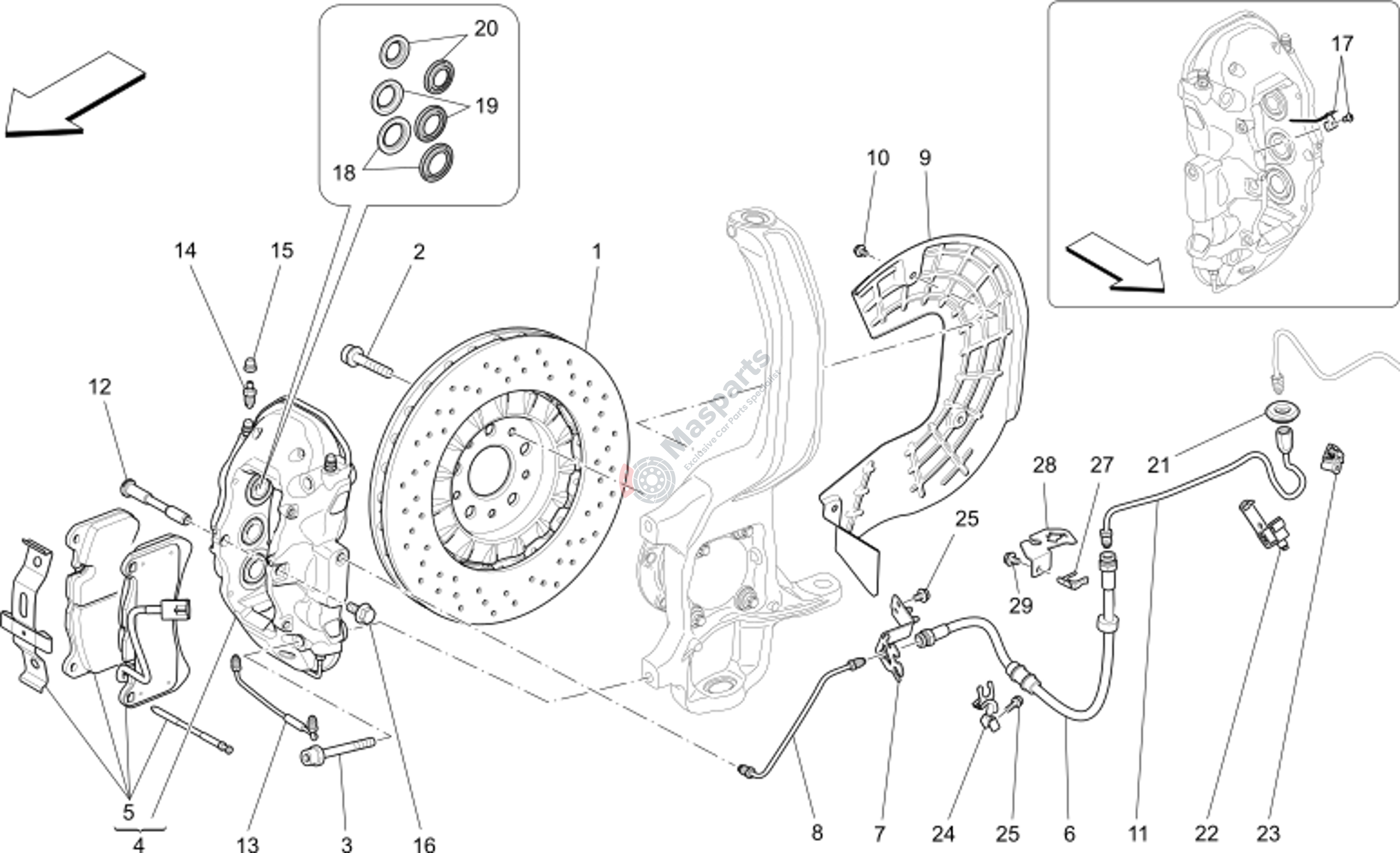

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670217883 | Shw Brake Disc |
$346.86 |
|
|
| 2 | M-675000081 |
Screw
|
$5.02 |
|
|
| 3 | M-670005714 | Screw |
$6.70 |
|
|
| 6 | M-670155394 | Flexible Pipe To Front Calip |
$15.40 |
|
|
| 7 | M-670001817 | Right Front Flexible Brake P |
$4.52 |
|
|
| 8 | M-670032073 | Rh Front Caliper Rigid Pipe |
$14.49 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$7.01 |
|
|
| 10 | M-675000126 | Screw |
$1.64 |
|
|
| 11 | M-670039841 | Pipe |
$25.22 |
|
|
| 12 | M-198015 | Tie Rod |
$51.61 |
|
|
| 13 | M-673000025 | R.H.Rigid Pipe |
$82.27 |
|
|
| 14 | M-152954 | Bleeding Screw |
$39.89 |
|
|
| 15 | M-215666 | Cap |
$27.07 |
|
|
| 16 | M-198014 | Screw |
$22.29 |
|
|
| 17 | M-673000054 | Bracket And Screw |
$48.78 |
|
|
| 18 | M-182121 | Cap |
$75.72 |
|
|
| 19 | M-215664 | Cap |
$51.93 |
|
|
| 20 | M-215663 | Cap |
$51.93 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.39 |
|
|
| 22 | M-670039674 | Clip |
$2.43 |
|
|
| 23 | M-675000272 | Retaining Clip |
$5.08 |
|
|
| 24 | M-670007373 | Bracket |
$8.75 |
|
|
| 25 | M-675000126 | Screw |
$1.64 |
|
|
| 27 | M-675000276 | Plate |
$0.96 |
|
|
| 28 | M-670037128 | Rh Brake Pipe Bracket |
$3.66 |
|
|
| 29 | M-675000621 | Screw (M6X18) |
$0.88 |
|
