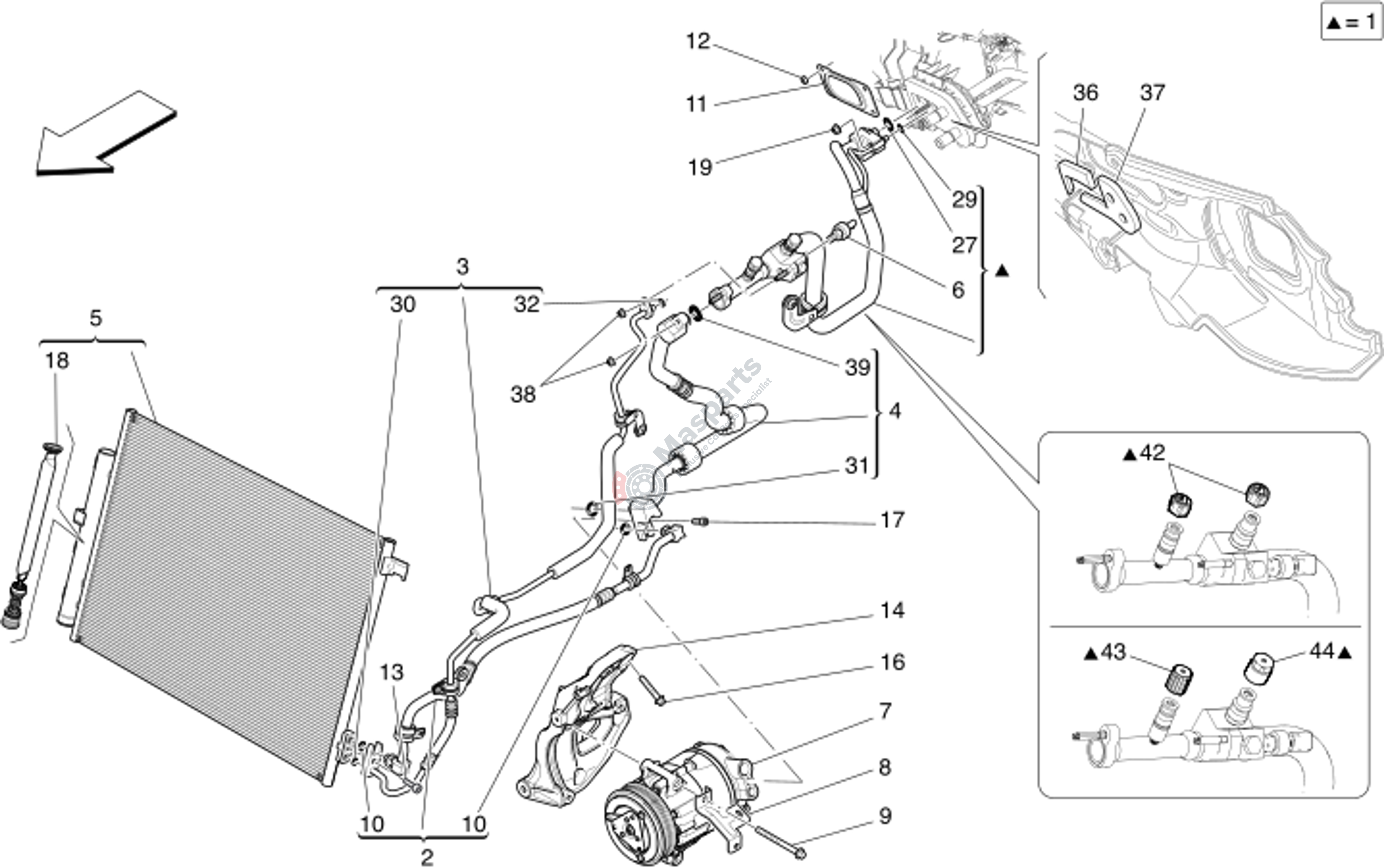

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033078 | Pipe From Evapourator To Uni |
$248.84 |
|
|
| 2 | M-670033074 | Pipe A.C. - Compressor |
$135.55 |
|
|
| 3 | M-670033082 | Pipe Between Condenser And J |
$373.74 |
|
|
| 4 | M-670033075 | Pipe From Compressor To Unio |
$445.39 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$796.86 |
|
|
| 6 | M-675000557 | Pressostat |
$69.36 |
|
|
| 7 | M-954108 | A/C Compressor |
$1,352.62 |
|
|
| 8 | M-673001244 | Bracket |
$25.48 |
|
|
| 9 | M-46328708 | Flange Bolt |
$3.67 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.78 |
|
|
| 11 | M-670005087 | Plug |
$16.41 |
|
|
| 12 | M-675000315 | Nut |
$1.75 |
|
|
| 13 | M-675000456 | Screw |
$4.64 |
|
|
| 14 | M-46328310 | Bracket |
$111.09 |
|
|
| 16 | M-46328715 | Flange Bolt |
$2.52 |
|
|
| 17 | M-675000249 | Screw |
$1.39 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$231.41 |
|
|
| 19 | M-675000328 | Nut |
$1.38 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.20 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.16 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.16 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.20 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.96 |
|
|
| 36 | M-670100149 | Lhd Upper Plenum Acoustic Li |
$7.89 |
|
|
| 37 | M-670039321 | Lhd Lower Plenum Acoustic Li |
$17.06 |
|
|
| 38 | M-675000315 | Nut |
$1.75 |
|
|
| 39 | M-675000306 | O-Ring 136X243 |
$1.93 |
|
|
| 42 | M-673009426 | Gas Cap |
$28.26 |
|
