Diagram image not available

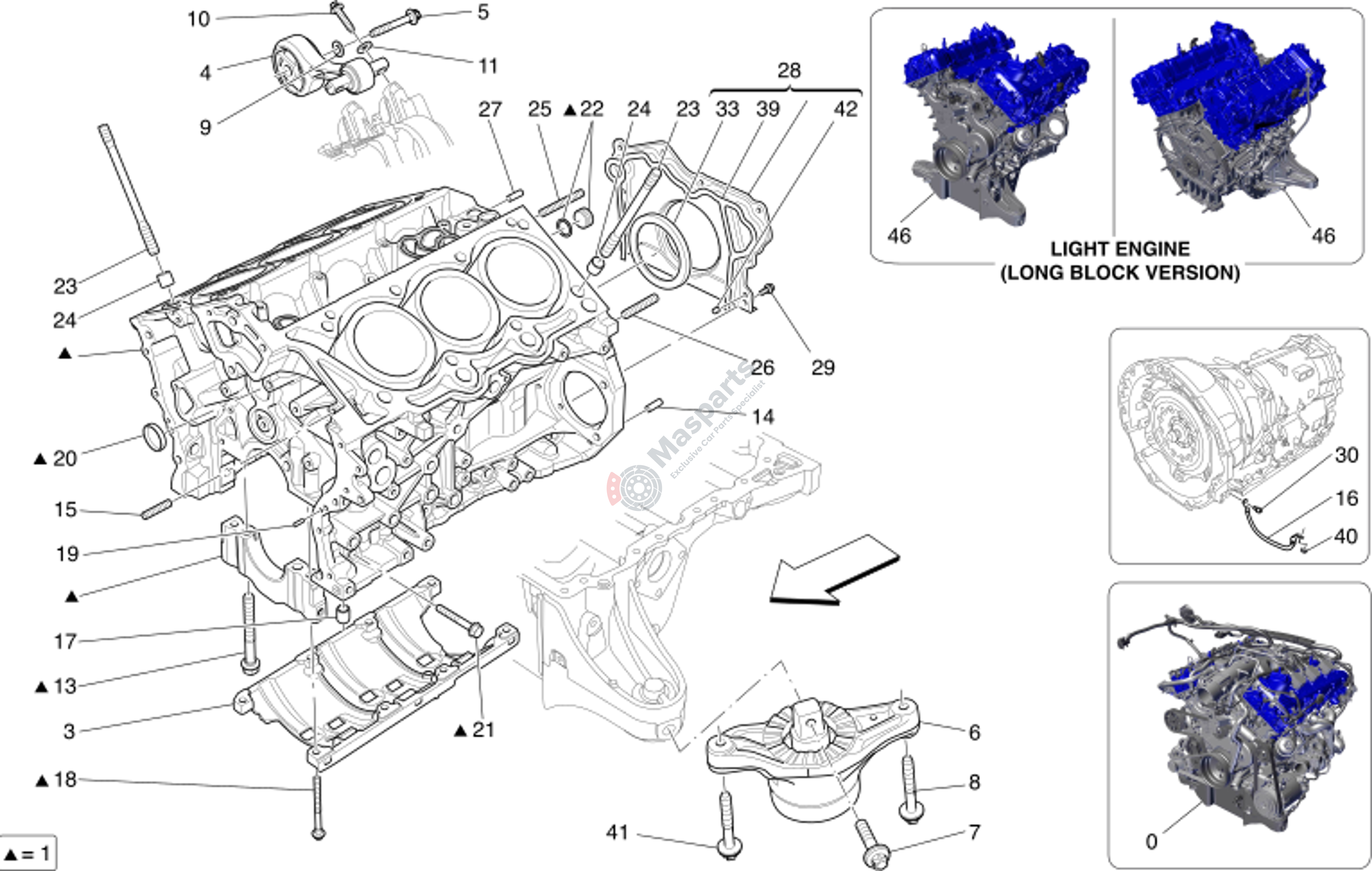

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-767001 | V6 Crackshaft Cpl Supports ( |
$5,628.14 |
|
|
| 3 | M-275361 | Shield |
$76.99 |
|
|
| 4 | M-670032042 | High Link Rod |
$90.97 |
|
|
| 5 | M-670007895 | Special Screw |
$7.64 |
|
|
| 6 | M-670003628 | Rh Engine Bushing |
$328.64 |
|
|
| 7 | M-670038507 | Special Screw |
$5.75 |
|
|
| 8 | M-670103984 | Screw |
$8.07 |
|
|
| 9 | M-675000096 | Washer |
$1.16 |
|
|
| 10 | M-670035412 | Screw |
$5.01 |
|
|
| 11 | M-675000247 | Washer |
$1.66 |
|
|
| 14 | M-10337710 | Pin |
$9.47 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$182.74 |
|
|
| 17 | M-300476 | Centering Dowel D.15X17 |
$4.65 |
|
|
| 19 | M-279025 | Centering Dowel |
$82.93 |
|
|
| 22 | M-313719 | Threaded Plug With Cu Washer |
$129.98 |
|
|
| 23 | M-306027 | Stud |
$25.26 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.39 |
|
|
| 25 | M-303590 | Stud M10X15X26 Stem54 M10X12 |
$6.66 |
|
|
| 26 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.59 |
|
|
| 27 | M-10337710 | Pin |
$9.47 |
|
|
| 28 | M-335495 | Rear Plate (Assy) Post-Chang |
$341.32 |
|
|
| 29 | M-231617 | Socket Head Screw With Washe |
$2.44 |
|
|
| 30 | M-675000383 | Screw |
$1.22 |
|
|
| 33 | M-334627 | Crankshaft Rear Gasket |
$75.77 |
|
|
| 39 | M-326558 | Cranckshaft Rear Plate Seal |
$10.14 |
|
|
| 40 | M-675000505 | Nut |
$3.01 |
|
|
| 41 | M-670035588 | Fastening Screw |
$9.58 |
|
|
| 42 | M-102725 | Centring Dowel D.8X8 |
$1.72 |
|
