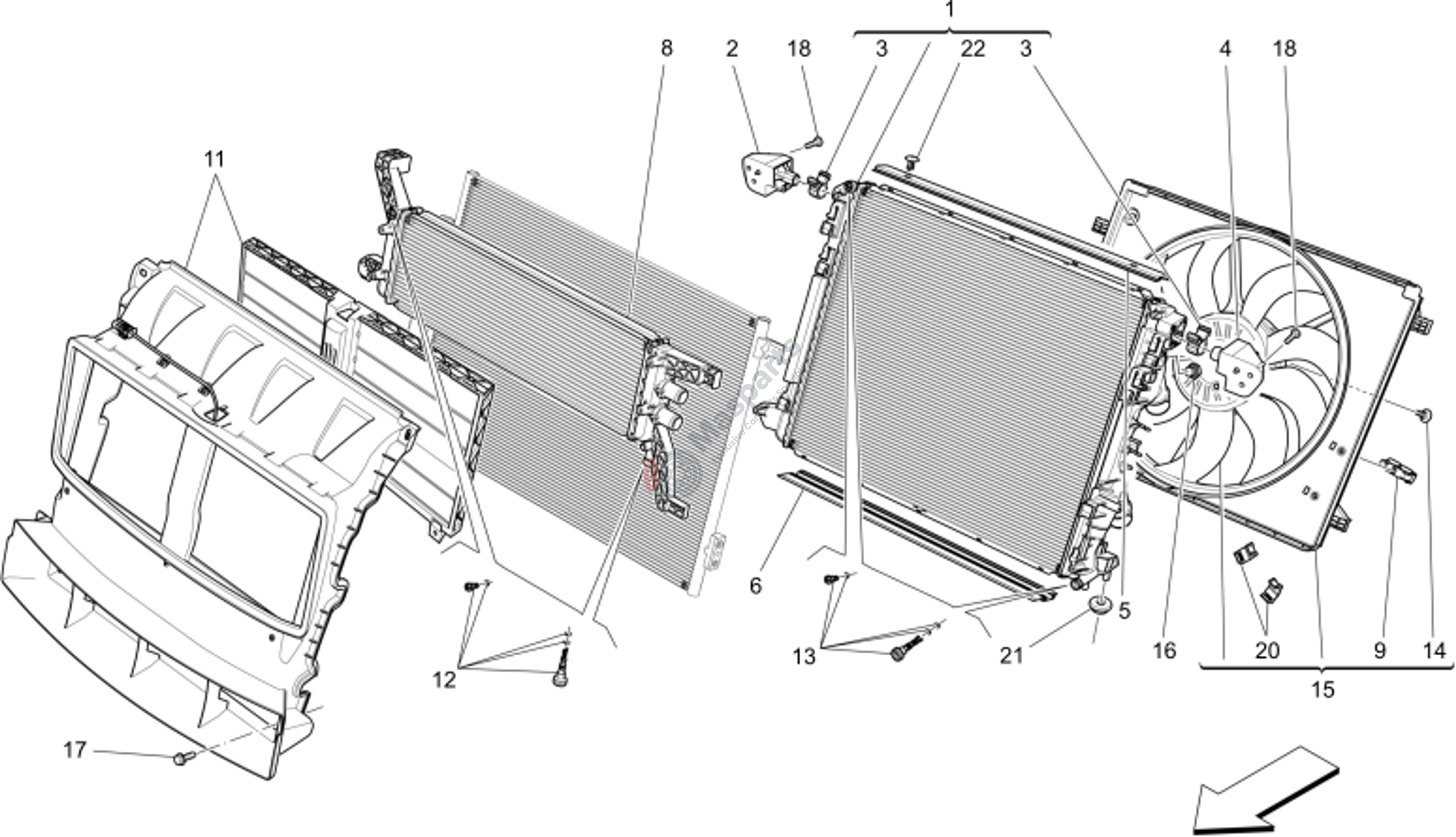

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670109996 | Water Radiator |
$717.44 |
|
|
| 2 | M-670001324 | Cpl Radiator Upper Rh Suppor |
$25.94 |
|
|
| 3 | M-670107327 | Rubber Bushing For Water Rad |
$68.16 |
|
|
| 4 | M-670001323 | Cpl Radiator Upper Lh Suppor |
$25.94 |
|
|
| 5 | M-670005012 | Upper Profile |
$66.96 |
|
|
| 6 | M-670005011 | Lower Profile |
$51.56 |
|
|
| 8 | M-670009821 | Gearbox Oil Radiator |
$397.15 |
|
|
| 9 | M-670003405 | Clip |
$39.89 |
|
|
| 12 | M-673000009 | Bleeding / Degas Kit |
$54.16 |
|
|
| 13 | M-673000009 | Bleeding / Degas Kit |
$54.16 |
|
|
| 14 | M-673000013 | Motor Fastening Screw |
$35.23 |
|
|
| 15 | M-670107328 | Cpl 850W Electrofan |
$1,640.20 |
|
|
| 16 | M-673000017 | Temperature Sensor Protectio |
$95.40 |
|
|
| 17 | M-675000354 | Screw |
$2.73 |
|
|
| 18 | M-675000468 | Screw |
$2.29 |
|
|
| 20 | M-673000015 | Cable Fastening Clip |
$44.16 |
|
|
| 21 | M-675000545 | Rubber Bushing |
$2.87 |
|
|
| 22 | M-670030111 | Fastening Plug |
$21.93 |
|
