Diagram image not available

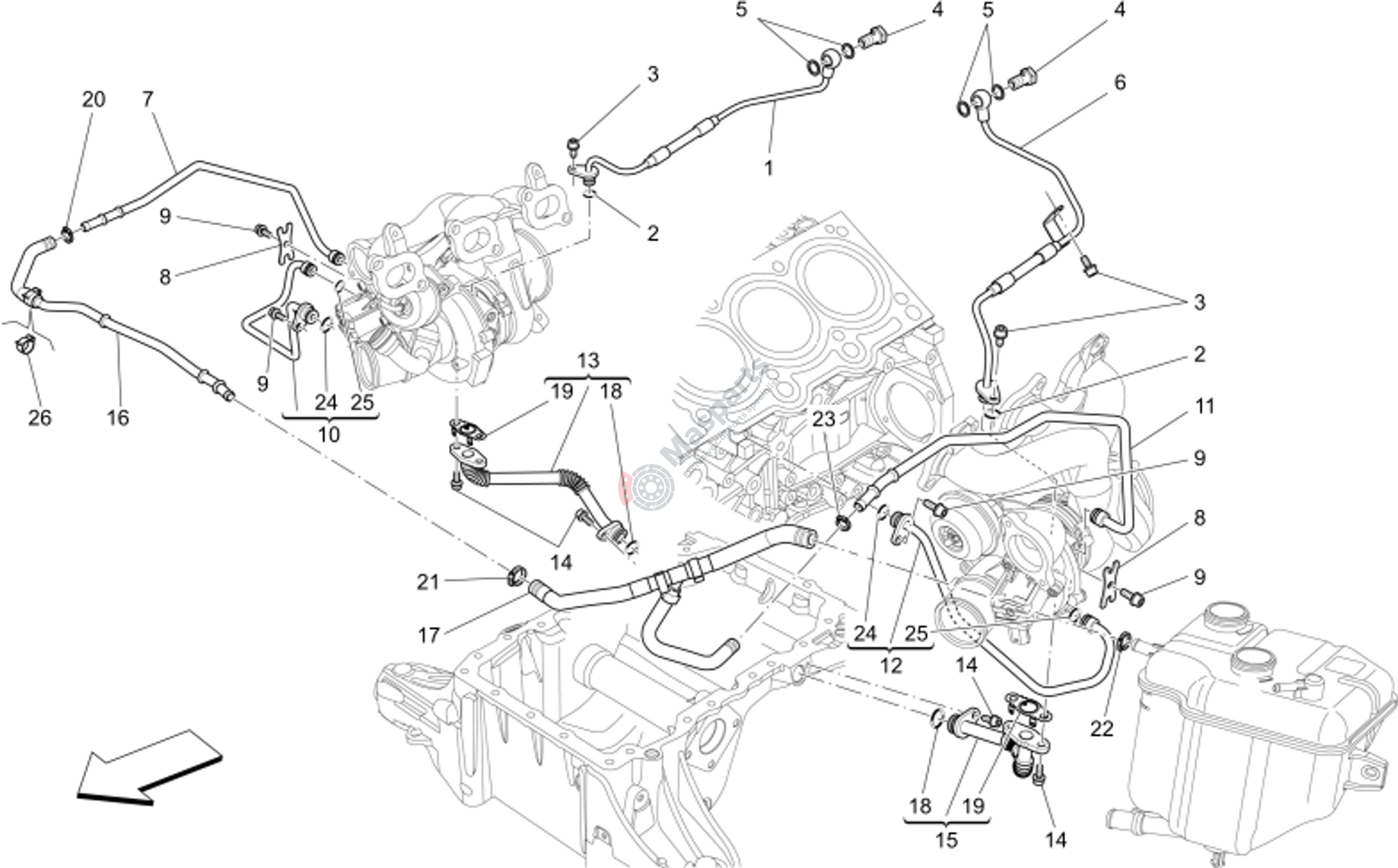

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-312328 | R.H. Oil Pipe Delivery To Tu |
$233.89 |
|
|
| 2 | M-191269 | Gasket |
$3.00 |
|
|
| 3 | M-231616 | Screw |
$2.09 |
|
|
| 4 | M-319864 | Filler Neck |
$14.09 |
|
|
| 5 | M-10261060 | Gasket 12- 16X 1.5 |
$1.17 |
|
|
| 6 | M-308075 | L.H. Oil Pipe Delivery To Tu |
$233.89 |
|
|
| 7 | M-300423 | Water Pipe Return From R.H T |
$110.58 |
|
|
| 8 | M-283437 | Fork |
$3.90 |
|
|
| 9 | M-248334 | Screw |
$2.93 |
|
|
| 10 | M-297624 | R.H. Water Pipe Delivery To |
$99.82 |
|
|
| 11 | M-300424 | Water Pipe Return From L.H.T |
$110.58 |
|
|
| 12 | M-286030 | L.H. Water Pipe Delivery To |
$92.11 |
|
|
| 13 | M-282368 | R.H. Recovery Oil Pipe To T |
$112.54 |
|
|
| 14 | M-248334 | Screw |
$2.93 |
|
|
| 15 | M-282369 | L.H. Recovery Oil Pipe To T |
$112.54 |
|
|
| 16 | M-670031849 | Turbocharger Cooling Circuit |
$79.66 |
|
|
| 17 | M-670031950 | Water Pipe From Turbine To N |
$94.34 |
|
|
| 18 | M-287722 | O-R Gasket |
$2.37 |
|
|
| 19 | M-271457 | Gasket On Oil Drain Pipe |
$3.56 |
|
|
| 20 | M-675000373 | Strap Collar |
$1.87 |
|
|
| 21 | M-675000374 | Strap Collar |
$1.95 |
|
|
| 22 | M-675000344 | Strap Collar |
$2.36 |
|
|
| 23 | M-675000369 | Strap Collar |
$1.65 |
|
|
| 24 | M-256627 | O-R Gasket |
$2.48 |
|
|
| 25 | M-127816 | O-R Gasket |
$2.37 |
|
|
| 26 | M-675000552 | Snap-On Hose Band Clamp D.14 |
$1.98 |
|
