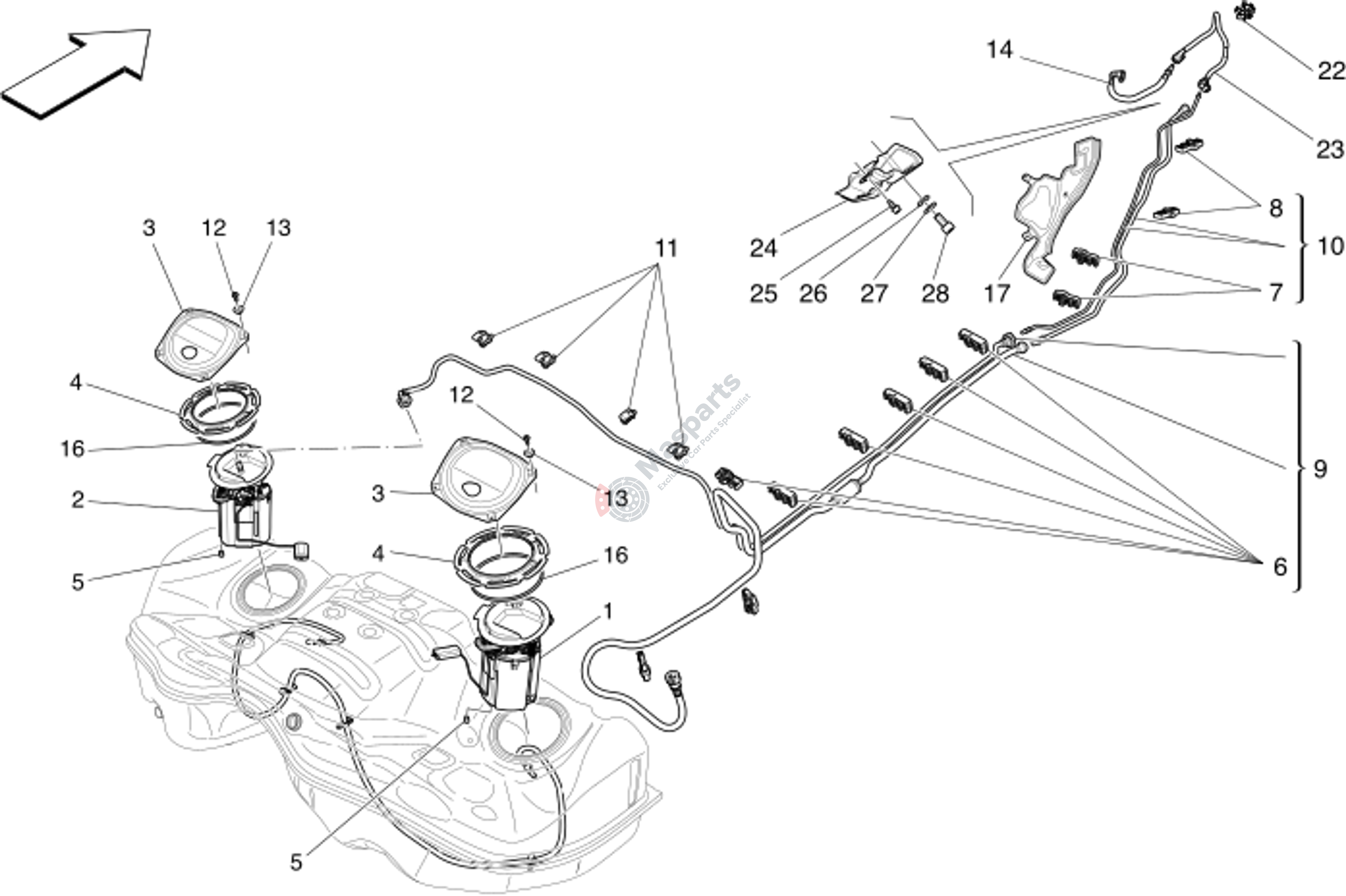

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003733 | Rh Fuel Level Indicator (V8 |
$436.40 |
|
|
| 2 | M-670178911 | Lh Fuel Pump (V6 Gasoline) |
$552.39 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
$17.30 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
$43.77 |
|
|
| 5 | M-670009292 | Fuel Adjustment Dowel |
$3.17 |
|
|
| 6 | M-670033279 | Clip |
$2.75 |
|
|
| 7 | M-670033280 | Clip |
$5.53 |
|
|
| 8 | M-670101810 | Clip |
$47.51 |
|
|
| 9 | M-670105399 | Pipe |
$181.61 |
|
|
| 10 | M-670103707 | Front Underfloor Fuel Pipes |
$150.39 |
|
|
| 11 | M-670005082 | Spring |
$1.50 |
|
|
| 12 | M-675000465 | Screw |
$1.19 |
|
|
| 13 | M-675000452 | Small Block Trim Screw Retai |
$1.19 |
|
|
| 14 | M-670031641 | Petrol Supply Pipe To Hp Pum |
$20.43 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
$19.62 |
|
|
| 17 | M-670103709 | Front Fuel Pipe Guard |
$93.06 |
|
|
| 22 | M-670100118 | Clip |
$2.69 |
|
|
| 23 | M-670105401 | Gasoline Pipe Section |
$36.48 |
|
|
| 24 | M-670030163 | Front Fuel Pipe Guard |
$8.61 |
|
|
| 25 | M-675000173 | Screw |
$1.97 |
|
|
| 26 | M-675000007 | Washer 10X21 |
$4.48 |
|
|
| 27 | M-11198374 | Washer |
$2.60 |
|
|
| 28 | M-675000796 | Screw |
$2.76 |
|
