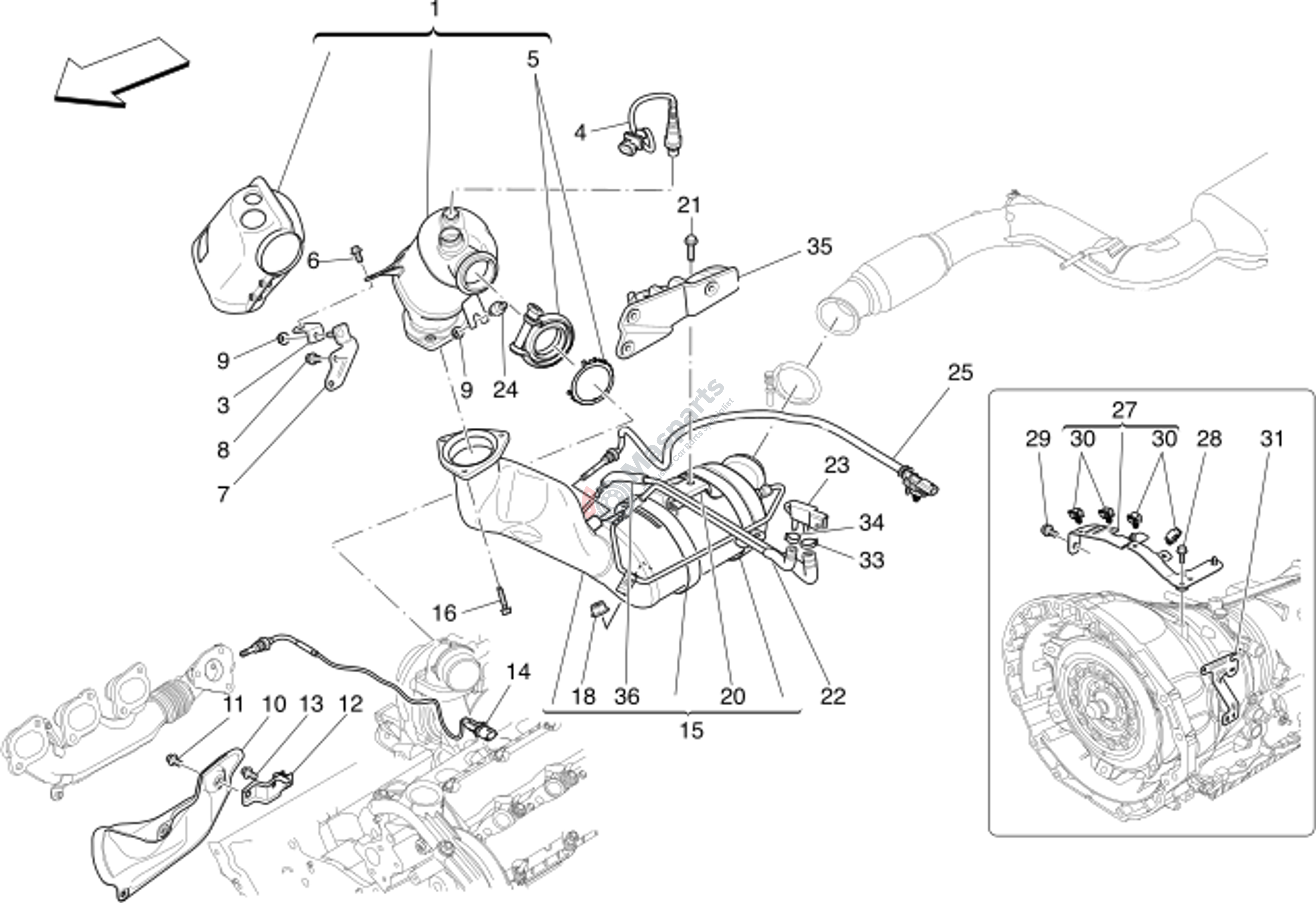

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328817 | Kit Catalytic Converter With |
$3,936.72 |
|
|
| 3 | M-46328329 | Support Bracket |
$27.22 |
|
|
| 4 | M-46328330 | Sensore Gas Scarico |
$673.64 |
|
|
| 5 | M-670034503 | V-Clamp |
$79.07 |
|
|
| 6 | M-46328732 | Vite Flangiata |
$2.89 |
|
|
| 7 | M-46328279 | Support Bracket |
$28.04 |
|
|
| 8 | M-46328697 | Flange Bolt |
$2.16 |
|
|
| 9 | M-675000566 | Self Lock Nut Flange |
$2.78 |
|
|
| 10 | M-46328344 | Guard |
$176.29 |
|
|
| 11 | M-46328698 | Flange Bolt |
$2.48 |
|
|
| 12 | M-46328260 | Bracket |
$6.50 |
|
|
| 13 | M-46328697 | Flange Bolt |
$2.16 |
|
|
| 14 | M-46333806 | Exhaust Gas Temperature Sens |
$217.80 |
|
|
| 15 | M-670034577 | Diesel Particulate Filter |
$2,246.44 |
|
|
| 16 | M-675000540 | Screw M8X40 |
$1.75 |
|
|
| 18 | M-675000091 | Nut |
$1.24 |
|
|
| 22 | M-670033068 | Dpf Pipe |
$100.97 |
|
|
| 23 | M-675000335 | Delta-Pressure Sensor |
$83.26 |
|
|
| 24 | M-46328278 | Catalytic Conv. Fastening St |
$31.13 |
|
|
| 25 | M-670033060 | Dpf Temperature Sensor |
$165.76 |
|
|
| 27 | M-670009383 | Diff.Pressure Sensor Bracket |
$40.11 |
|
|
| 28 | M-675000509 | Screw |
$1.23 |
|
|
| 29 | M-675000510 | Screw |
$1.43 |
|
|
| 30 | M-670009081 | Fastening Clip |
$9.86 |
|
|
| 31 | M-670006413 | Temp. Sensor Cable Bracket |
$11.86 |
|
|
| 33 | M-675000369 | Strap Collar |
$1.66 |
|
|
| 34 | M-675000368 | Strap Collar |
$1.89 |
|
|
| 35 | M-670034567 | Bracket |
$139.18 |
|
|
| 36 | M-673005302 | Dpf-Side Inlet Siliconic Hos |
$6.97 |
|
