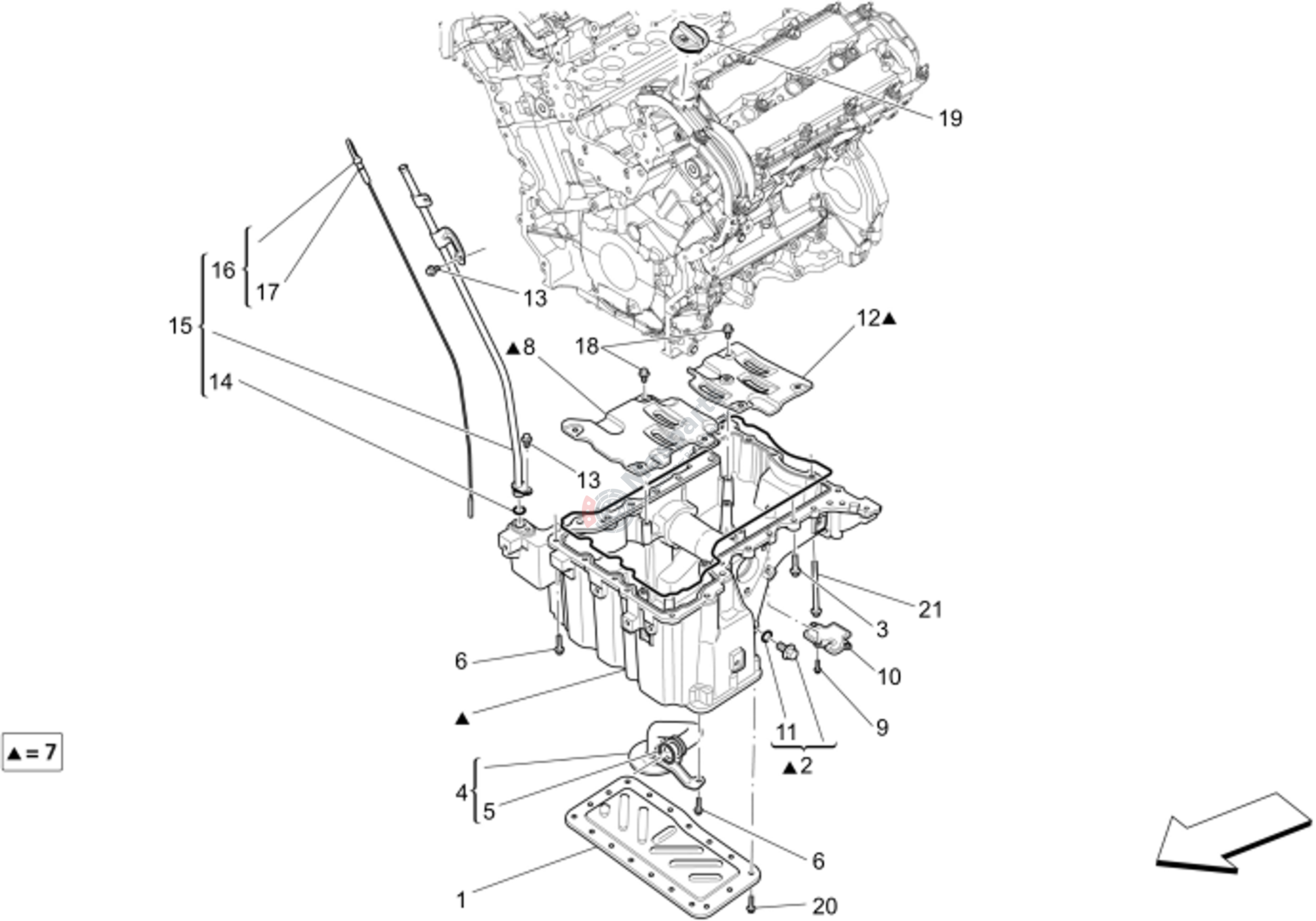

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328813 | Oil Suction Cover |
$106.54 |
|
|
| 2 | M-46328396 | Oil Drain Plug |
$34.24 |
|
|
| 3 | M-46328698 | Flange Bolt |
$2.53 |
|
|
| 4 | M-46328800 | Oil Suction Pipe |
$174.46 |
|
|
| 5 | M-46328352 | O.R. Gasket |
$6.12 |
|
|
| 6 | M-46328812 | Flange Bolt |
$3.79 |
|
|
| 7 | M-46334922 | Oil Sump |
$1,261.15 |
|
|
| 8 | M-46328809 | Front Oil Sump Shield |
$39.72 |
|
|
| 9 | M-46328681 | Flange Bolt |
$2.64 |
|
|
| 10 | M-46328816 | Sensor Cover |
$33.49 |
|
|
| 11 | M-46334870 | Oil Plug Seal |
$2.47 |
|
|
| 12 | M-46328810 | Rear Oil Sump Shield |
$39.72 |
|
|
| 13 | M-46328683 | Flange Bolt |
$1.16 |
|
|
| 14 | M-46328364 | O.R. Gasket |
$1.90 |
|
|
| 15 | M-46332202 | Oil Level Rod Tube |
$183.23 |
|
|
| 16 | M-46332201 | Oil Level Dipstick |
$28.31 |
|
|
| 17 | M-46328365 | O.R. Gasket |
$0.95 |
|
|
| 18 | M-46328684 | Flange Bolt |
$4.96 |
|
|
| 20 | M-46328687 | Flange Bolt |
$2.22 |
|
|
| 21 | M-46328709 | Flange Bolt |
$4.96 |
|
