Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

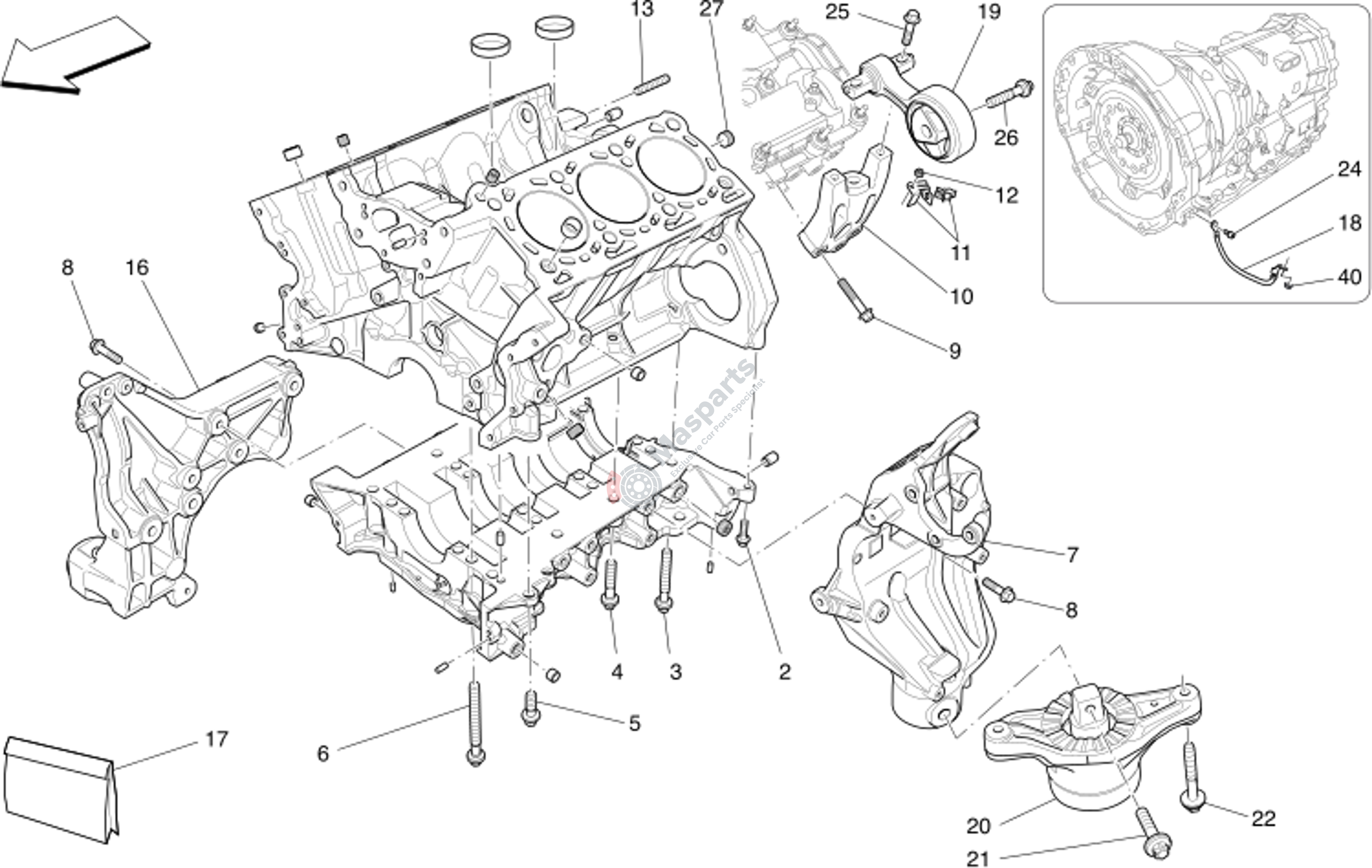

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-46328701 | Flange Bolt |
$3.65 |
|
|
| 3 | M-46328083 | Screw |
$11.27 |
|
|
| 4 | M-46328082 | Screw |
$9.39 |
|
|
| 5 | M-46328084 | Screw |
$11.89 |
|
|
| 6 | M-46328081 | Screw |
$12.52 |
|
|
| 7 | M-46334924 | Lh Engine Support Bracket |
$524.72 |
|
|
| 8 | M-46328720 | M10X60 Screw |
$5.64 |
|
|
| 9 | M-46328719 | Flange Bolt |
$3.97 |
|
|
| 10 | M-46328132 | Rod Bracket |
$317.13 |
|
|
| 11 | M-46328794 | Pipe Bracket |
$29.62 |
|
|
| 12 | M-673001154 | Flange Nut |
$1.50 |
|
|
| 13 | M-46328349 | Stud |
$4.49 |
|
|
| 16 | M-46328820 | Support Bracket |
$1,080.74 |
|
|
| 17 | M-673000963 | Plugs And Pins Kit For Crank |
$133.53 |
|
|
| 18 | M-670007404 | Ground Cable For Engine-Fram |
$180.40 |
|
|
| 19 | M-670004297 | High Connecting Rod |
$94.48 |
|
|
| 20 | M-670003628 | Rh Engine Bushing |
$324.43 |
|
|
| 21 | M-670038507 | Special Screw |
$5.67 |
|
|
| 22 | M-670035588 | Fastening Screw |
$9.46 |
|
|
| 24 | M-675000383 | Screw |
$1.20 |
|
|
| 25 | M-675000252 | Screw |
$5.16 |
|
|
| 26 | M-675000146 | Screw |
$5.74 |
|
|
| 27 | M-46328351 | Seal Plug |
$3.65 |
|
|
| 40 | M-675000505 | Nut |
$2.97 |
|
