The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

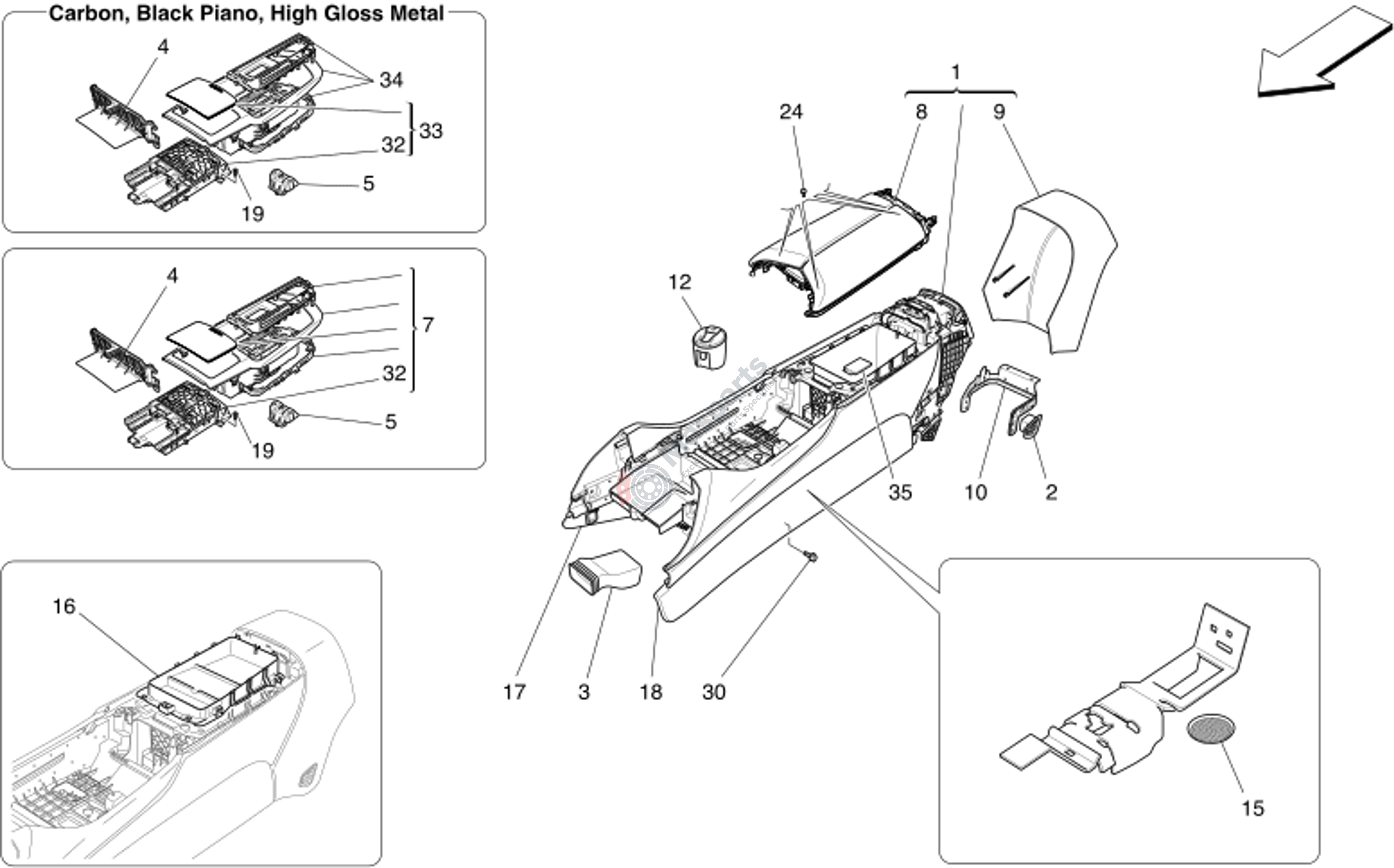

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670001703 | Connecting Duct Between Rear |
$33.68 |
|
|
| 10 | M-670034477 | Rear Bracket |
$12.98 |
|
|
| 16 | M-673005491 | Housing Storage Box Hvac |
$143.51 |
|
|
| 19 | M-670035713 | Fastening Screw |
$1.73 |
|
|
| 24 | M-673009079 | Plug |
$2.46 |
|
|
| 30 | M-675000199 | Screw |
$2.37 |
|
