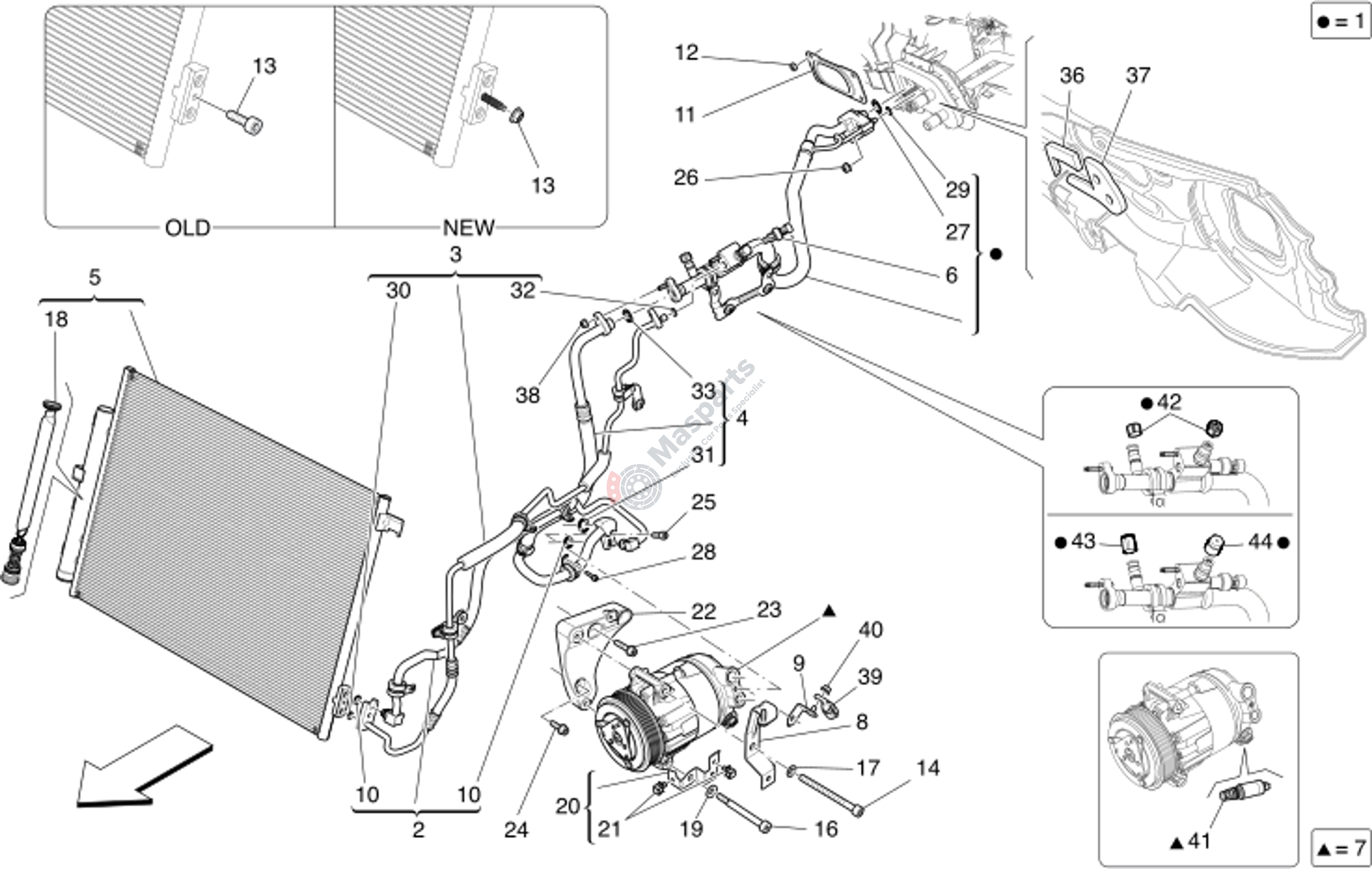

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038664 | Pipe From Evapourator To Uni |
$244.96 |
|
|
| 2 | M-670032308 | Pipe A.C. - Compressor |
$116.19 |
|
|
| 3 | M-670003216 | Pipe From Condenser To Union |
$136.52 |
|
|
| 4 | M-670032309 | Pipe From Compressor To Unio |
$176.22 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$796.86 |
|
|
| 6 | M-670038668 | Pressostat |
$59.80 |
|
|
| 7 | M-954108 | A/C Compressor |
$1,352.62 |
|
|
| 8 | M-291575 | Bracket |
$10.67 |
|
|
| 9 | M-299601 | Bracket |
$12.05 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.78 |
|
|
| 11 | M-670005087 | Plug |
$16.41 |
|
|
| 12 | M-675000315 | Nut |
$1.75 |
|
|
| 13 | M-675000456 | Screw |
$4.64 |
|
|
| 14 | M-14307124 | Socket Head Screw M 8X 90 |
$17.92 |
|
|
| 16 | M-246208 | Screw |
$18.02 |
|
|
| 17 | M-11193874 | Washer |
$1.34 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$231.41 |
|
|
| 19 | M-11186374 | Washer |
$2.55 |
|
|
| 20 | M-320345 | Bracket Cpl. |
$31.12 |
|
|
| 21 | M-283287 | Clip |
$1.70 |
|
|
| 22 | M-311689 | A.C. Sys. Compressor Support |
$89.85 |
|
|
| 23 | M-265097 | Screw |
$5.66 |
|
|
| 24 | M-231629 | Socket Head Screw With Washe |
$2.43 |
|
|
| 25 | M-675000249 | Screw |
$1.39 |
|
|
| 26 | M-675000328 | Nut |
$1.38 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.20 |
|
|
| 28 | M-675000314 | Screw |
$1.37 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.16 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.16 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.20 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.96 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
$1.93 |
|
|
| 36 | M-670100149 | Lhd Upper Plenum Acoustic Li |
$7.89 |
|
|
| 37 | M-670039321 | Lhd Lower Plenum Acoustic Li |
$17.06 |
|
|
| 38 | M-675000315 | Nut |
$1.75 |
|
|
| 39 | M-244219 | Clip |
$6.56 |
|
|
| 40 | M-14058421 | Nut |
$2.06 |
|
|
| 41 | M-673015590 | Ecv Valve + Seeger Ring |
$77.15 |
|
|
| 42 | M-673009426 | Gas Cap |
$28.26 |
|
