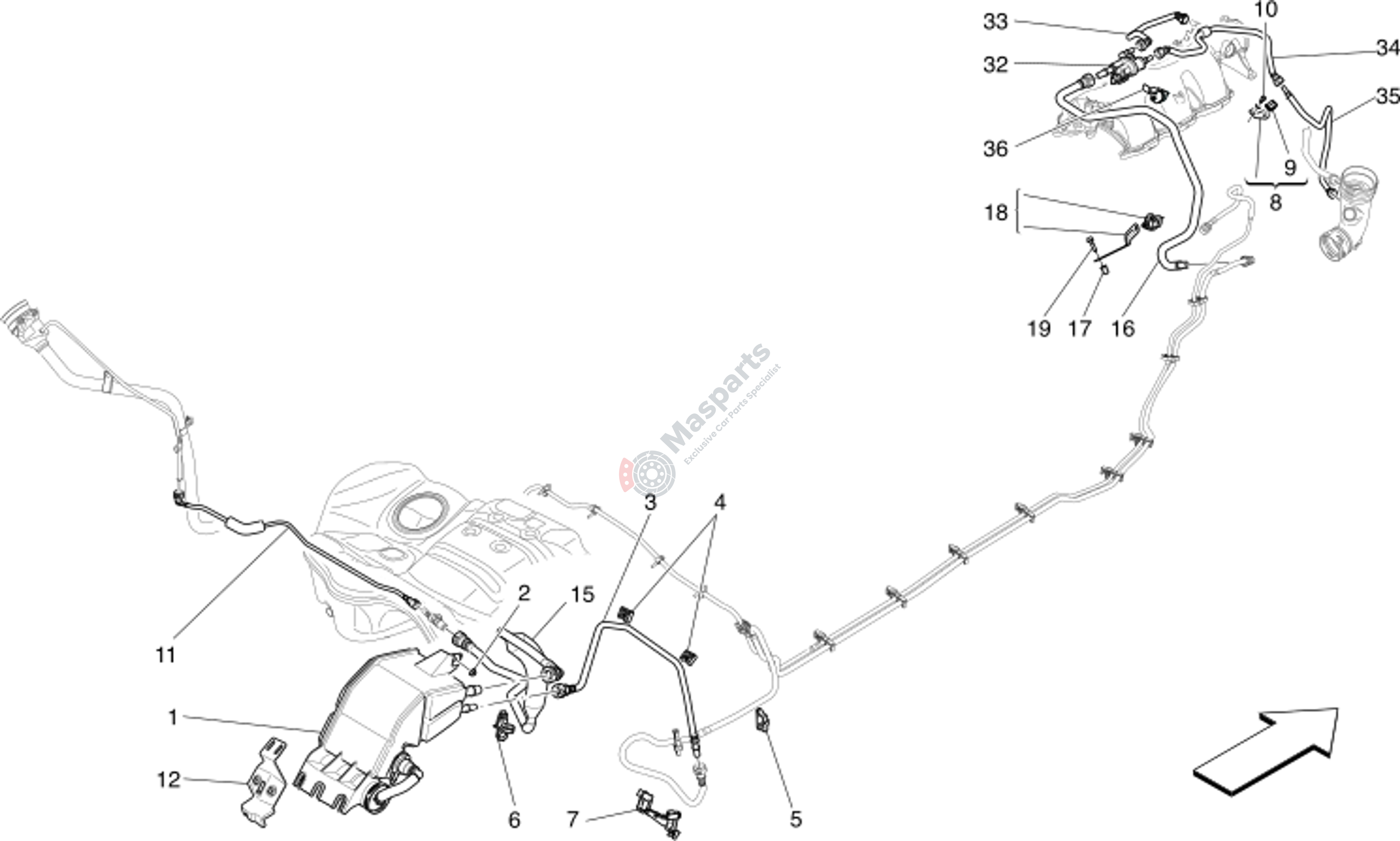

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033287 | Fuel Vapour Filter |
$200.19 |
|
|
| 2 | M-675000114 | Nut |
$1.28 |
|
|
| 3 | M-670033294 | Canister Pipe |
$32.88 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-675000055 | Clip |
$1.28 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.19 |
|
|
| 7 | M-670031947 | Vapour System Clip |
$10.17 |
|
|
| 8 | M-670005045 | Cpl Bracket |
$6.06 |
|
|
| 9 | M-675000132 | Clip |
$1.18 |
|
|
| 10 | M-675000191 | Screw |
$2.03 |
|
|
| 11 | M-670033572 | Flexible Vapour Pipe |
$35.98 |
|
|
| 12 | M-670034699 | Canister Bracket |
$18.39 |
|
|
| 15 | M-670033274 | Vent Pipe |
$93.64 |
|
|
| 16 | M-670033126 | Vapour Pipe To Intake Manifo |
$44.08 |
|
|
| 17 | M-675000576 | Rivet |
$1.20 |
|
|
| 18 | M-670035380 | Canister Pipe Bracket |
$8.12 |
|
|
| 19 | M-675000242 | Screw |
$3.40 |
|
|
| 32 | M-670162028 | Solenoid Valve |
$39.88 |
|
|
| 33 | M-670033129 | Vapour Pipe |
$32.79 |
|
|
| 34 | M-670033130 | Vapour Pipe |
$52.07 |
|
|
| 35 | M-670033133 | Vapour Pipe |
$33.29 |
|
