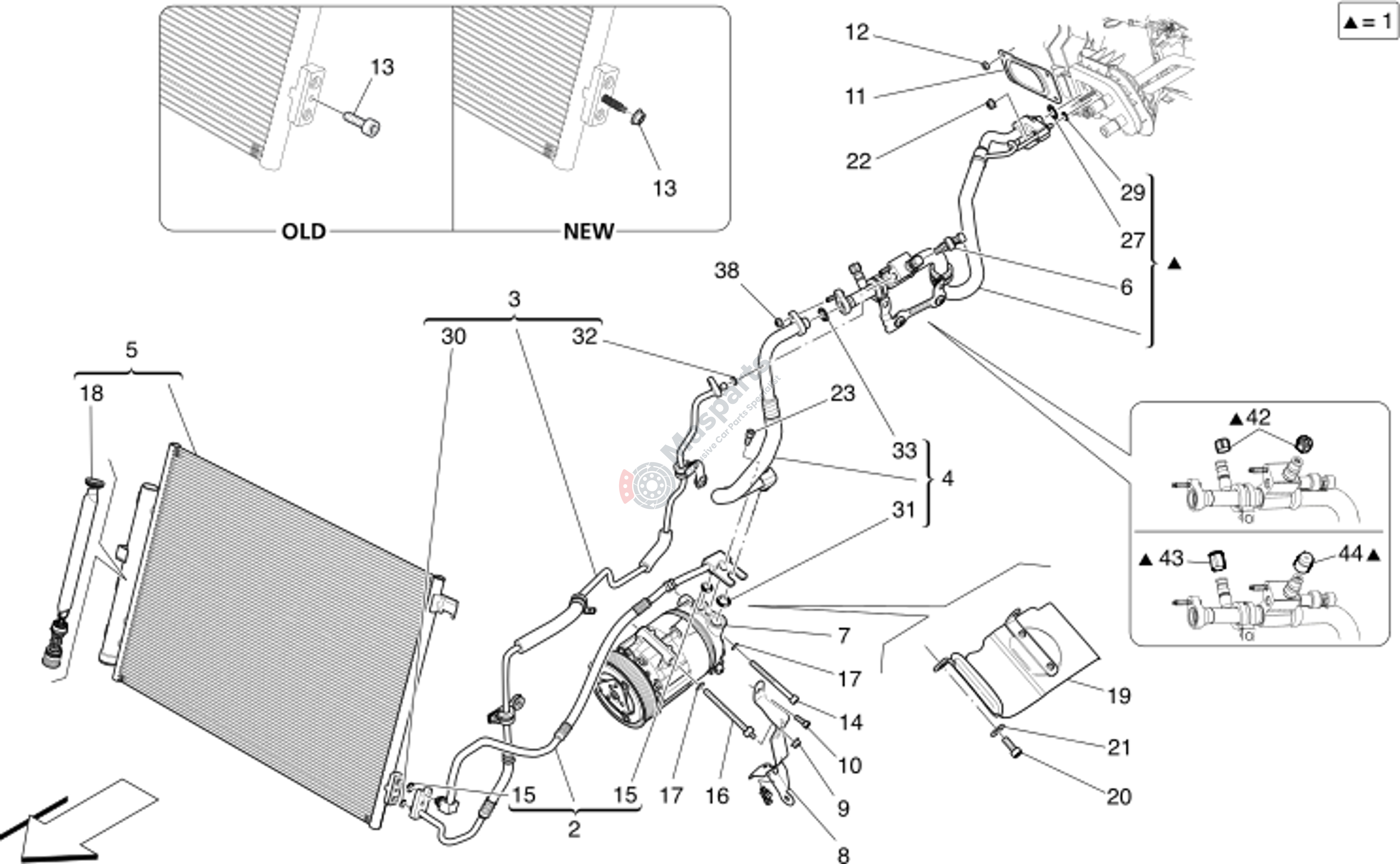

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038664 | Pipe From Evapourator To Uni |
$250.68 |
|
|
| 2 | M-670104392 | Pipe A.C. - Compressor |
$110.97 |
|
|
| 3 | M-670003216 | Pipe From Condenser To Union |
$139.71 |
|
|
| 4 | M-670104394 | Pipe From Compressor To Unio |
$115.93 |
|
|
| 5 | M-670296020 | Ac Condenser |
$745.12 |
|
|
| 6 | M-670038668 | Pressostat |
$61.20 |
|
|
| 7 | M-954109 | Ac Compressor V8 |
$1,541.75 |
|
|
| 8 | M-819174 | Bracket |
$43.65 |
|
|
| 9 | M-14059211 | Nut |
$1.50 |
|
|
| 10 | M-675000314 | Screw |
$1.39 |
|
|
| 11 | M-670005087 | Plug |
$16.79 |
|
|
| 12 | M-675000315 | Nut |
$1.79 |
|
|
| 13 | M-675000456 | Screw |
$4.74 |
|
|
| 14 | M-14307224 | Screw |
$3.97 |
|
|
| 15 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.96 |
|
|
| 16 | M-286687 | Column |
$34.08 |
|
|
| 17 | M-11193874 | Washer |
$1.37 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$236.81 |
|
|
| 22 | M-675000328 | Nut |
$1.40 |
|
|
| 23 | M-675000249 | Screw |
$1.43 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.40 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.31 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.31 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.40 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$2.01 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
$1.97 |
|
|
| 38 | M-675000315 | Nut |
$1.79 |
|
|
| 42 | M-673009426 | Gas Cap |
$28.92 |
|
