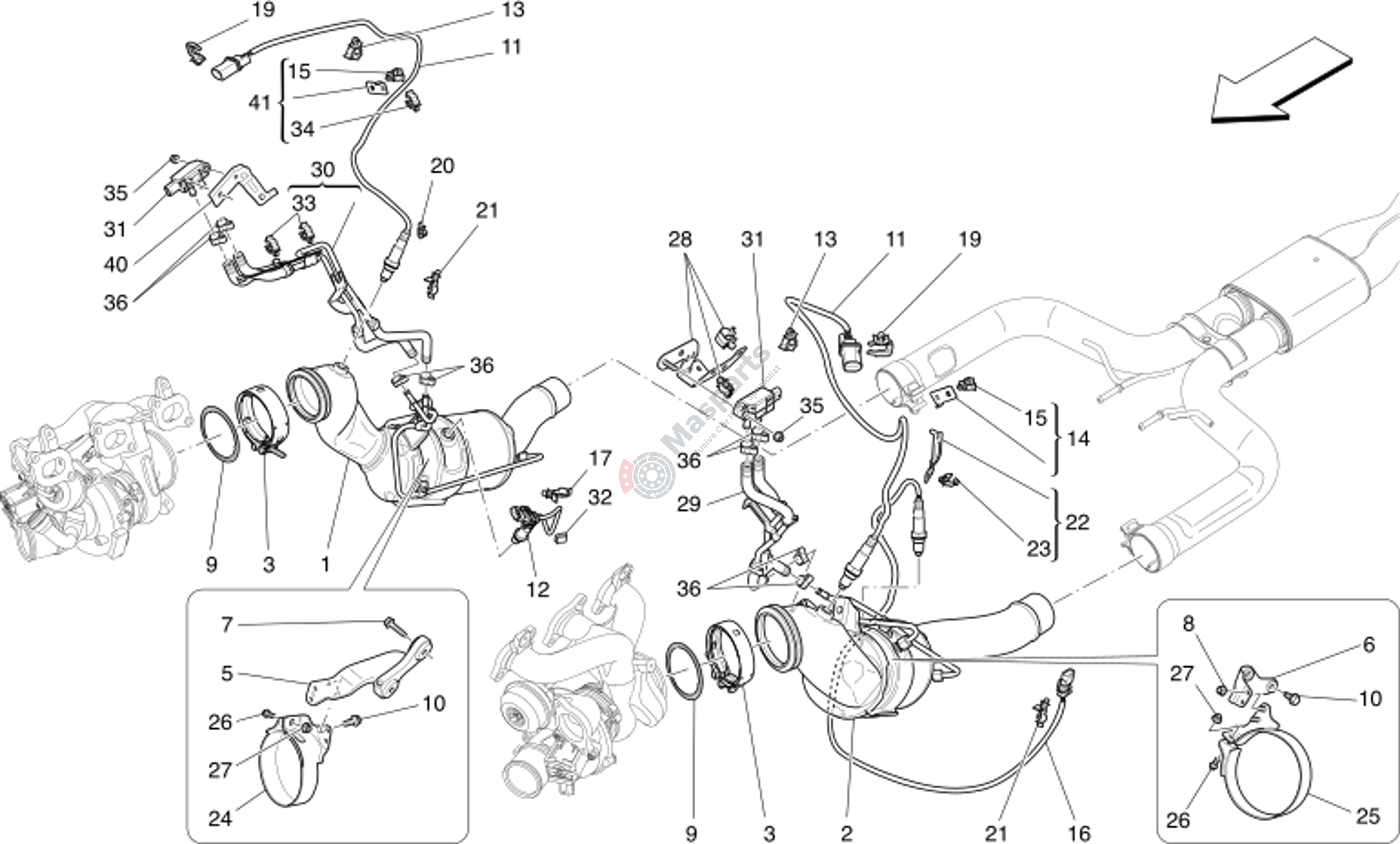

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154496 | Cpl Rh Catalytic Converter |
$2,913.85 |
|
|
| 2 | M-670154494 | Cpl Lh Catalytic Converter |
$2,995.70 |
|
|
| 3 | M-675000060 | Collar |
$29.64 |
|
|
| 5 | M-670104017 | Rh Bracket |
$89.68 |
|
|
| 6 | M-670104016 | Lh Bracket |
$82.10 |
|
|
| 7 | M-675000397 | Screw |
$9.27 |
|
|
| 8 | M-675000780 | Nut |
$2.45 |
|
|
| 9 | M-675000052 | Gasket |
$8.65 |
|
|
| 11 | M-670104046 | Lambda Sensor |
$124.22 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$124.22 |
|
|
| 13 | M-670005126 | Clip |
$1.12 |
|
|
| 14 | M-670002259 | Bracket |
$6.80 |
|
|
| 15 | M-675000134 | Clip |
$6.03 |
|
|
| 16 | M-670104045 | Rear Lambda Sensor |
$124.22 |
|
|
| 17 | M-675000143 | Clip |
$0.99 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.73 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.73 |
|
|
| 21 | M-675000143 | Clip |
$0.99 |
|
|
| 22 | M-670104048 | Bracket Assembly |
$14.61 |
|
|
| 27 | M-675000779 | Nut |
$2.87 |
|
|
| 28 | M-670109784 | Pressure Sensor Bracket |
$12.01 |
|
|
| 29 | M-670109786 | Lh Exhaust Pression Sensor P |
$112.95 |
|
|
| 30 | M-670109787 | Rh Exhaust Pression Sensor P |
$183.67 |
|
|
| 31 | M-670175163 | Pressure Sensor |
$128.19 |
|
|
| 32 | M-670105160 | Retaining Clip |
$1.49 |
|
|
| 33 | M-675000076 | Clip |
$0.88 |
|
|
| 35 | M-14059211 | Nut |
$1.49 |
|
|
| 36 | M-675000369 | Strap Collar |
$1.71 |
|
|
| 40 | M-670109785 | Pressure Sensor Bracket |
$18.50 |
|
|
| 41 | M-670002259 | Bracket |
$6.80 |
|
