Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

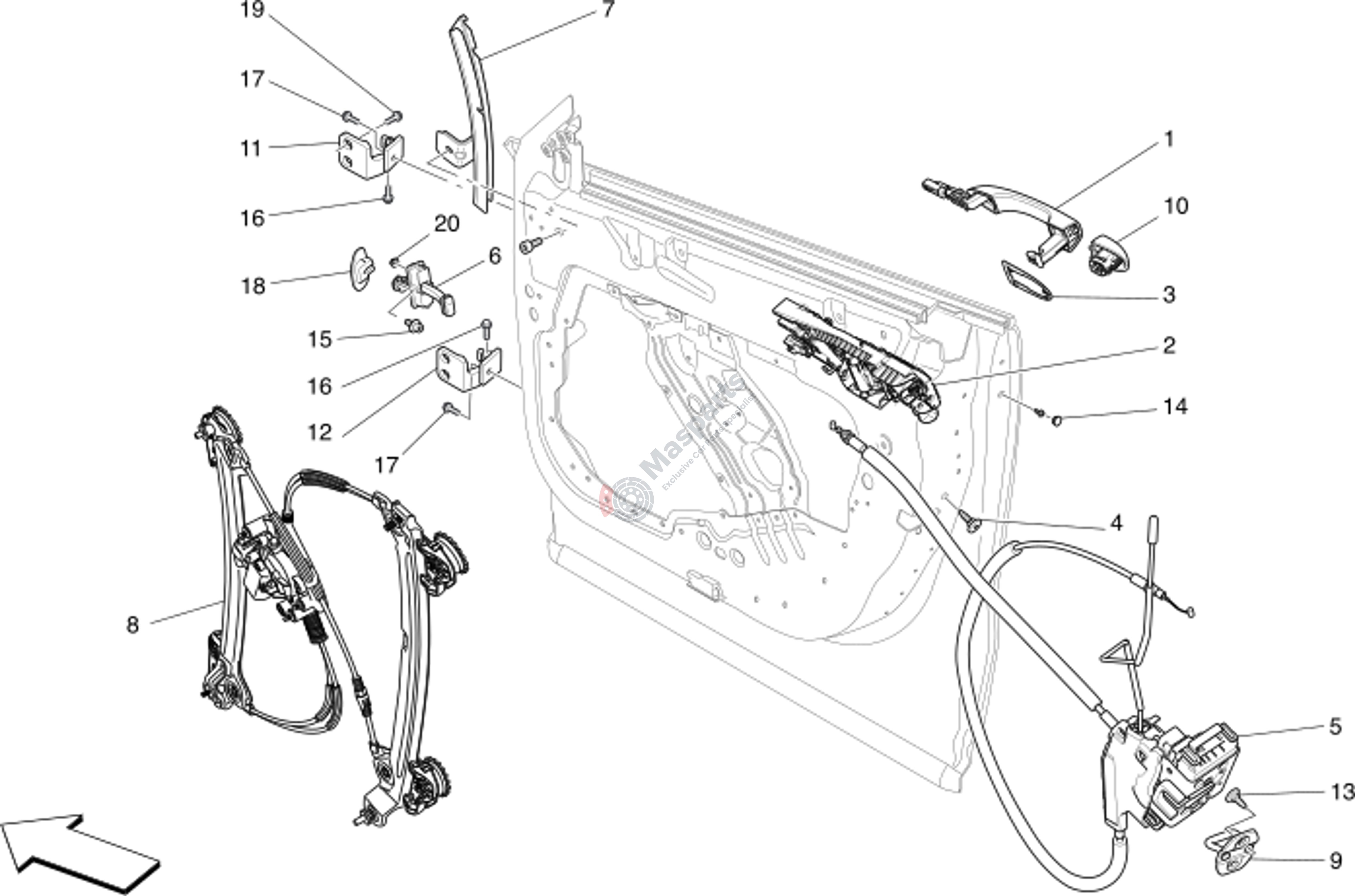

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670109516 | Rh Outer Handle Retaining Br |
€81,88 |
|
|
| 3 | M-670005442 | External Door Handle Gasket |
€1,46 |
|
|
| 4 | M-670154292 | Screw |
€3,24 |
|
|
| 5 | M-670216489 | Rh Front Door Lock |
€134,32 |
|
|
| 6 | M-670035101 | Tie Rod |
€17,68 |
|
|
| 7 | M-670032749 | Front Rh Window Run Channel |
€18,40 |
|
|
| 8 | M-670176156 | Electric Windows Front Right |
€345,72 |
|
|
| 9 | M-675000573 | Doors Lock Striker |
€15,18 |
|
|
| 11 | M-675000162 | Rh Door Upper Hinge |
€37,81 |
|
|
| 12 | M-675000161 | Rh Door Lower Hinge |
€22,45 |
|
|
| 13 | M-670009758 | Screw |
€1,78 |
|
|
| 15 | M-670006984 | Screw |
€1,99 |
|
|
| 16 | M-675000005 | Special Screw |
€1,94 |
|
|
| 17 | M-675000485 | Special Screw |
€1,32 |
|
|
| 18 | M-670034687 | Door Stopping Seal |
€2,61 |
|
|
| 19 | M-675000485 | Special Screw |
€1,32 |
|
|
| 20 | M-670006983 | Flanged Nut |
€1,46 |
|
