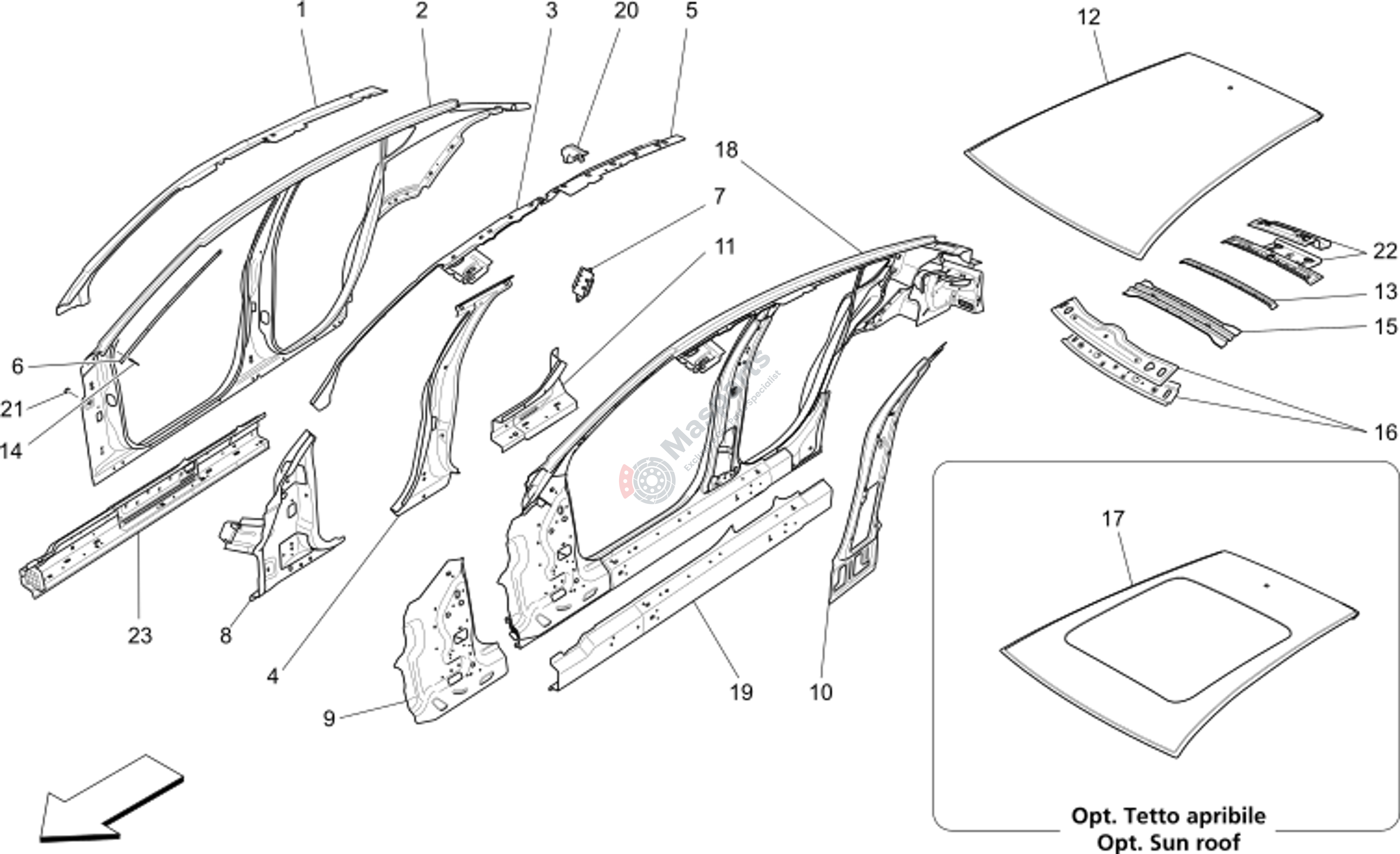

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006978 | Rh Front Pillar Member Reinf |
$256.54 |
|
|
| 2 | M-673008249 | Rh External Body Side Assemb |
$2,336.68 |
|
|
| 3 | M-673006976 | Rh Front Pillar Side Rail As |
$144.30 |
|
|
| 4 | M-673006979 | Rh Central Pillar Reinforcem |
$432.91 |
|
|
| 5 | M-673006974 | Rh Rear Upper Side Rail Asse |
$146.19 |
|
|
| 7 | M-673005637 | Rh Rear Door Striker Plate C |
$21.65 |
|
|
| 8 | M-673005639 | Rh Front Pillare Reinforceme |
$327.28 |
|
|
| 9 | M-673011061 | Cpl Rh Body Side Framing |
$99.03 |
|
|
| 10 | M-673006982 | Rh Central Pillar Frame |
$212.21 |
|
|
| 11 | M-673005643 | Rh B-Pillar Lower Framework |
$91.51 |
|
|
| 12 | M-673007935 | Ext Roofpanel Cover |
$500.21 |
|
|
| 13 | M-673005646 | Central Cross Member |
$48.18 |
|
|
| 14 | M-670105701 | Rivet |
$2.24 |
|
|
| 15 | M-673005647 | Central Cross Member |
$63.64 |
|
|
| 16 | M-673005648 | Windscreen Upper Cross Membe |
$92.01 |
|
|
| 17 | M-673007936 | Ext Roof Panel Cover (399+) |
$720.71 |
|
|
| 18 | M-673010875 | Cpl Rh Body Side Framing |
$2,002.33 |
|
|
| 19 | M-673011062 | Rh Side Member Assembly |
$296.15 |
|
|
| 20 | M-670034917 | R.H. Diaphragm |
$13.50 |
|
|
| 21 | M-670031350 | Plug |
$5.00 |
|
|
| 22 | M-673005654 | Rear Cross Member |
$79.08 |
|
|
| 23 | M-673006847 | Rh Reinforcement |
$298.98 |
|
