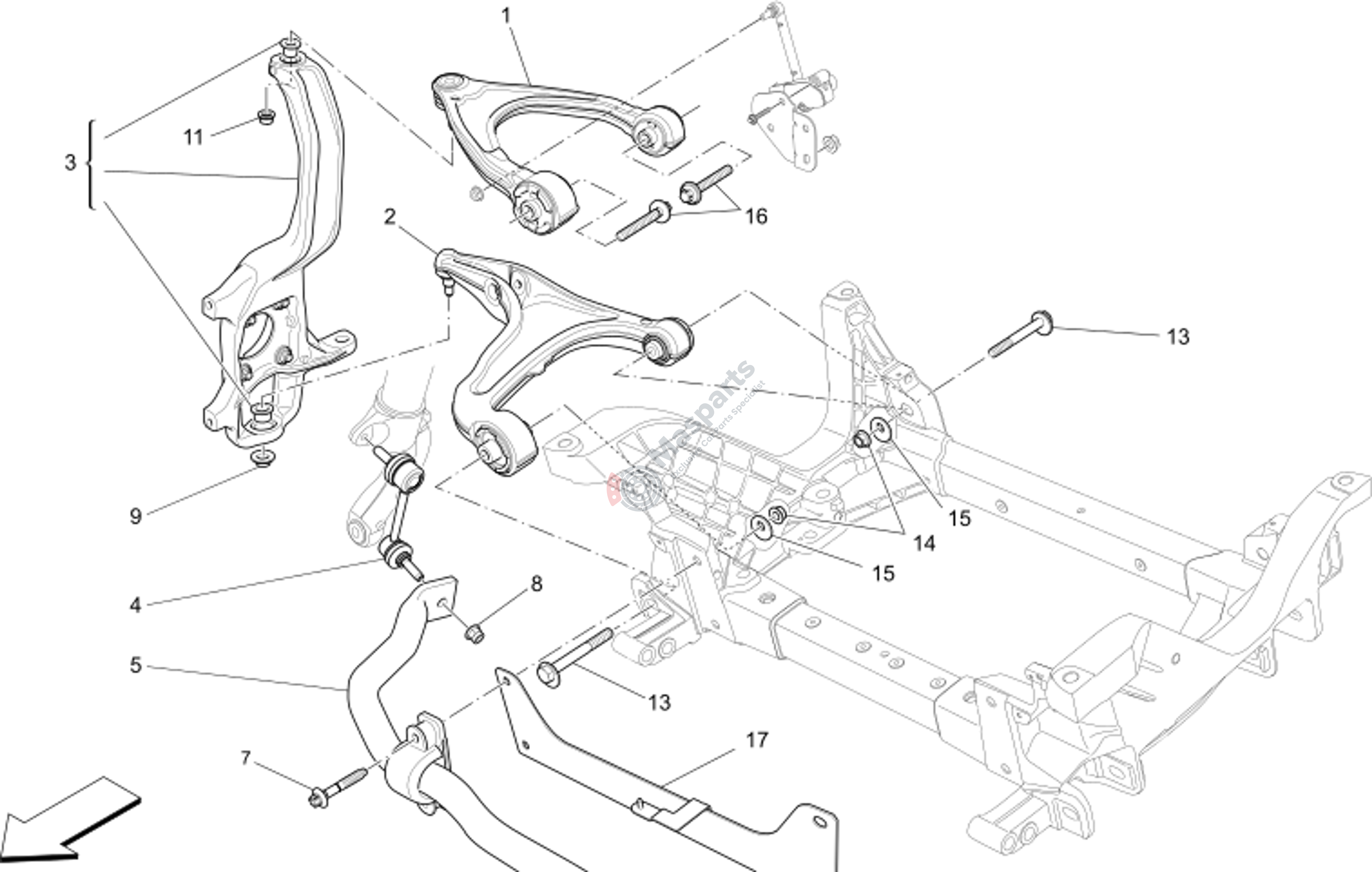

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031994 | Cpl Rh Upper Lower Lever |
$477.09 |
|
|
| 3 | M-670106872 | Cpl Rh Front Suspension Pill |
$686.24 |
|
|
| 4 | M-670032003 | Spherical Tension Rod |
$60.12 |
|
|
| 5 | M-670103991 | Front Stabilizer Bar |
$342.15 |
|
|
| 7 | M-670103997 | Screw M12X1.75 M161 |
$4.17 |
|
|
| 8 | M-675000586 | Nut ˇ |
$1.49 |
|
|
| 9 | M-675000082 | Nut |
$4.37 |
|
|
| 11 | M-670002916 | Nut |
$2.44 |
|
|
| 13 | M-670035427 | Screw ˇ |
$9.98 |
|
|
| 14 | M-675000585 | Nut ˇ |
$2.96 |
|
|
| 15 | M-670035428 | Washer ˇ |
$3.64 |
|
|
| 16 | M-670007895 | Special Screw |
$7.54 |
|
|
| 17 | M-670104593 | Bracket |
$28.35 |
|
