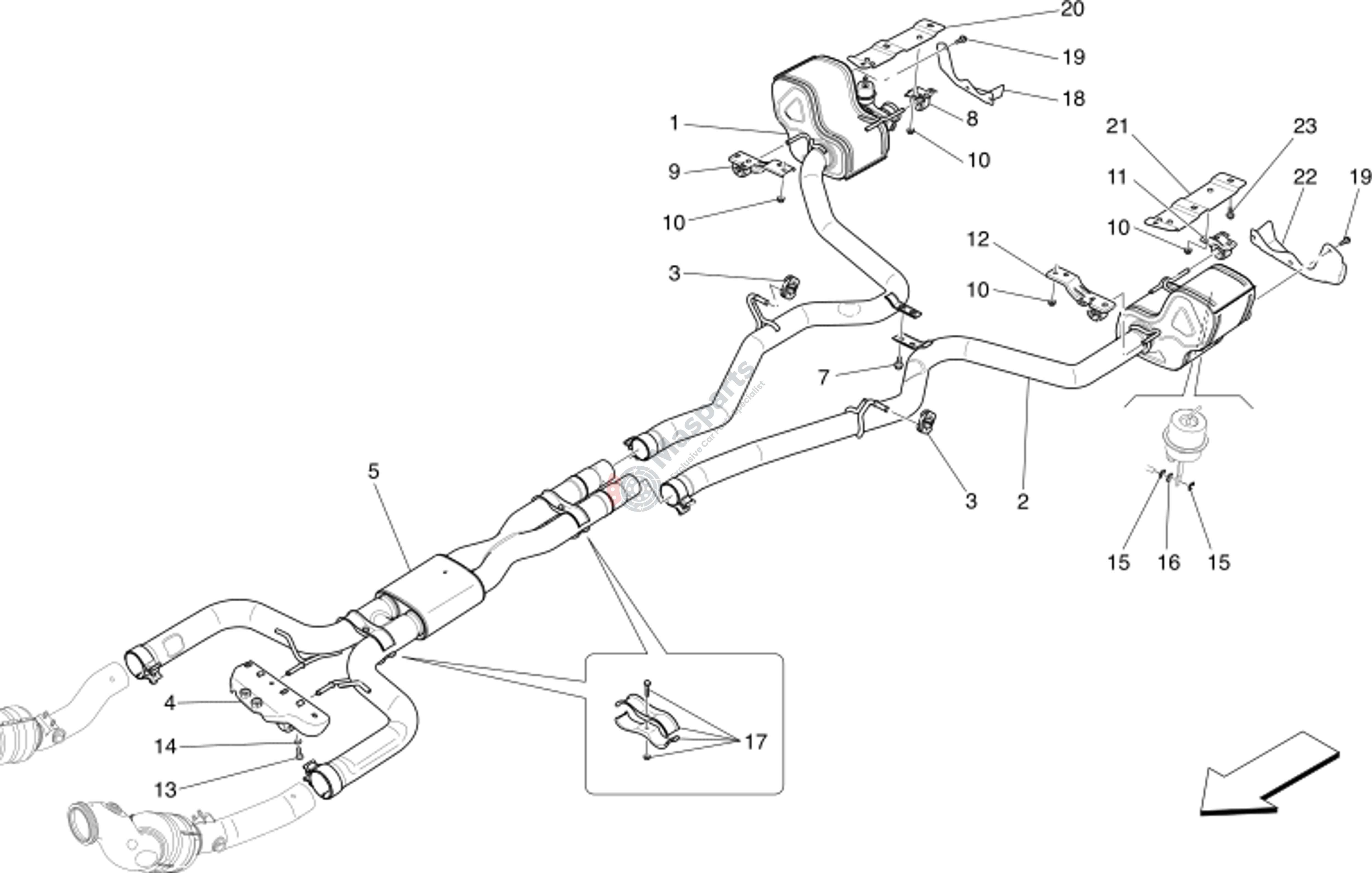

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-673015680 | Rear Rh+Lh Muffler Kit |
$1,376.28 |
|
|
| 3 | M-675001949 | Small Block |
$18.45 |
|
|
| 4 | M-670003897 | Central Bracket |
$79.45 |
|
|
| 7 | M-675000705 | Screw |
$1.43 |
|
|
| 8 | M-670031936 | Rh Rear Silencer Support |
$49.91 |
|
|
| 9 | M-670174967 | Rh Rear Bracket Exhaust Pipe |
$25.85 |
|
|
| 10 | M-675000328 | Nut |
$1.40 |
|
|
| 11 | M-670034561 | Lh Rear Silencer Support |
$18.99 |
|
|
| 12 | M-670174966 | Lh Rear Bracket Exhaust Pipe |
$25.85 |
|
|
| 13 | M-675000774 | Screw |
$1.35 |
|
|
| 14 | M-675000089 | Washer |
$0.99 |
|
|
| 15 | M-673003135 | Lock Ring |
$87.74 |
|
|
| 16 | M-673003136 | Elastic Washer |
$92.37 |
|
|
| 17 | M-673003961 | Central Silencer Kit |
$90.25 |
|
|
| 19 | M-675000665 | Sc/Hex.Hd Fl. M6 X 12 |
$2.14 |
|
|
| 20 | M-670178878 | Rear Rh Compl Bracket |
$19.73 |
|
|
| 21 | M-670178879 | Rear Lh Compl Bracket |
$19.73 |
|
|
| 23 | M-675000761 | Screw |
$2.99 |
|
