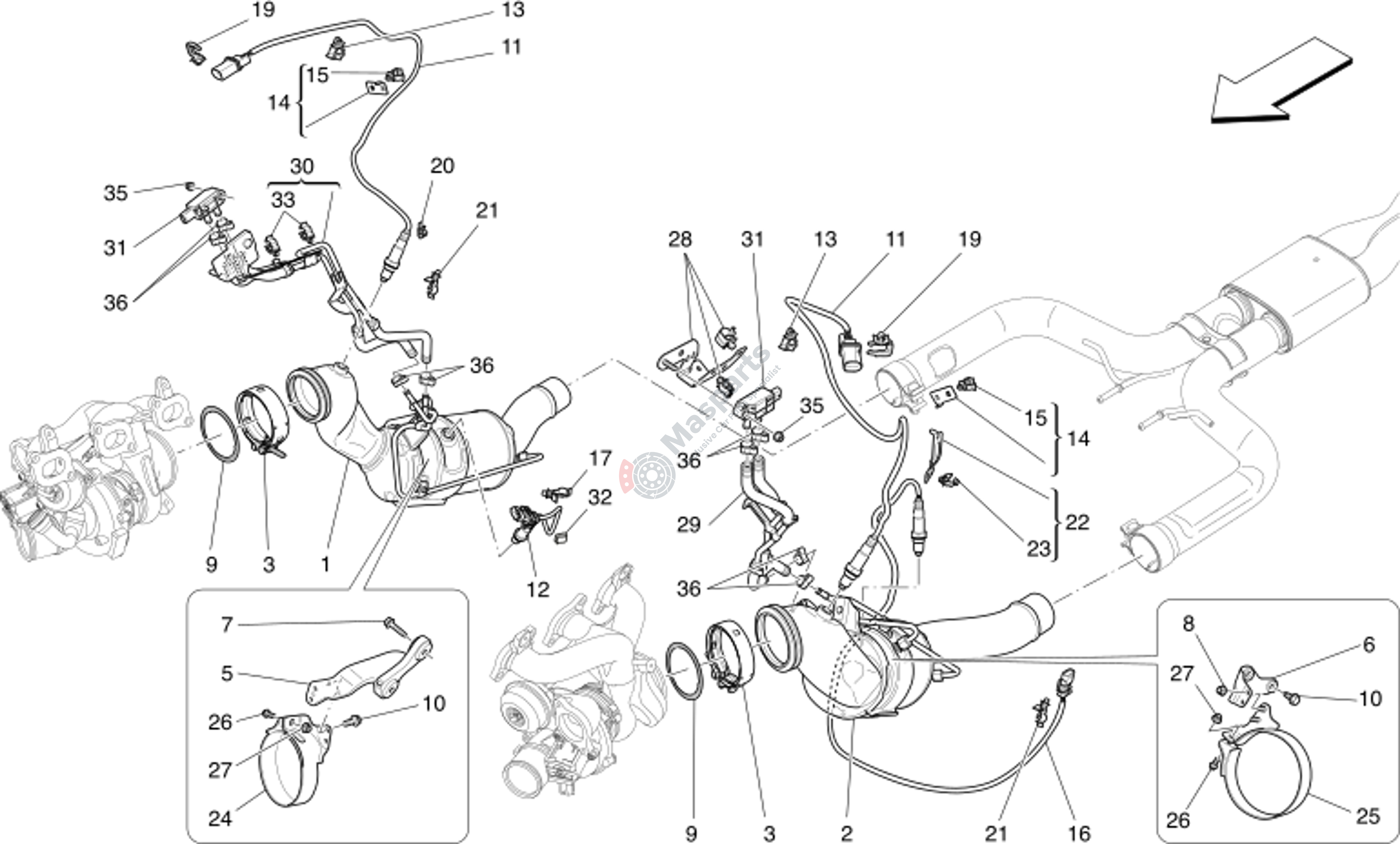

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670107530 | Hot-End Cpl.Ccgpf Rt |
$2,393.02 |
|
|
| 2 | M-670107529 | Hot-End Cpl.Ccgpf Lt |
$3,044.35 |
|
|
| 3 | M-675000060 | Collar |
$28.73 |
|
|
| 5 | M-670104958 | Rh Bracket |
$42.04 |
|
|
| 6 | M-670104957 | Lh Bracket |
$40.69 |
|
|
| 7 | M-675000397 | Screw |
$8.98 |
|
|
| 8 | M-675000779 | Nut |
$2.78 |
|
|
| 9 | M-675000052 | Gasket |
$8.39 |
|
|
| 10 | M-675000257 | Screw |
$5.91 |
|
|
| 11 | M-670214728 | Rh Front Lambda Sensor |
$109.82 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$120.42 |
|
|
| 13 | M-675000143 | Clip |
$0.96 |
|
|
| 14 | M-670005333 | Cpl Bracket |
$24.58 |
|
|
| 15 | M-675000134 | Clip |
$5.85 |
|
|
| 16 | M-670104045 | Rear Lambda Sensor |
$120.42 |
|
|
| 17 | M-675000143 | Clip |
$0.96 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.68 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.68 |
|
|
| 21 | M-675000143 | Clip |
$0.96 |
|
|
| 22 | M-670104048 | Bracket Assembly |
$14.16 |
|
|
| 26 | M-675000257 | Screw |
$5.91 |
|
|
| 27 | M-675000779 | Nut |
$2.78 |
|
|
| 28 | M-670107580 | Lh Pressure Sensor Bracket |
$24.94 |
|
|
| 29 | M-670182472 | Rigid Pipe Exhaust Gas Pres |
$107.60 |
|
|
| 30 | M-670182471 | Rigid Pipe Exhaust Gas Pres |
$119.02 |
|
|
| 31 | M-670175163 | Pressure Sensor |
$124.27 |
|
|
| 32 | M-670105160 | Retaining Clip |
$1.45 |
|
|
| 33 | M-675000076 | Clip |
$0.85 |
|
|
| 35 | M-14059211 | Nut |
$1.45 |
|
|
| 36 | M-675000369 | Strap Collar |
$1.66 |
|
