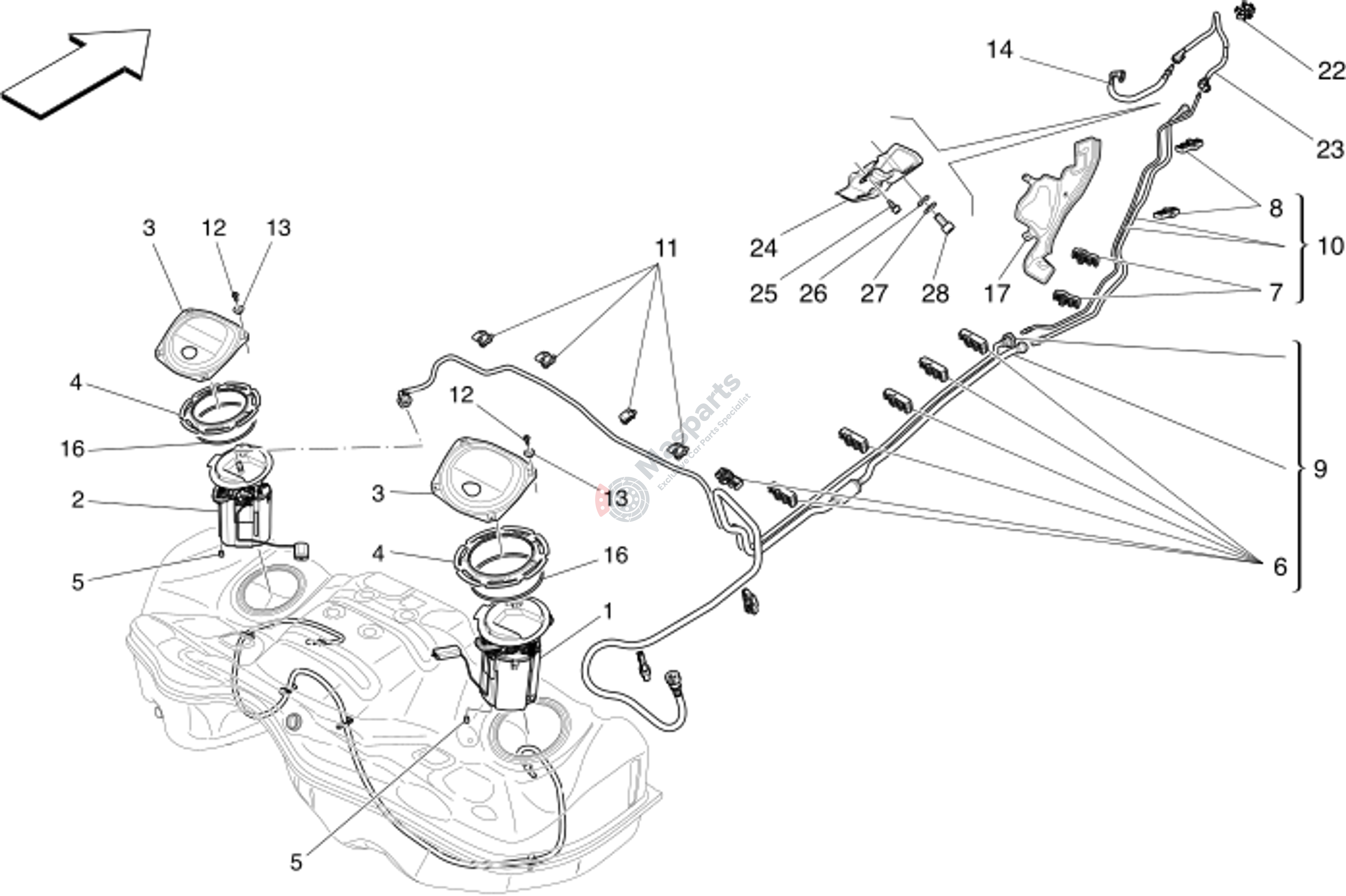

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003733 | Rh Fuel Level Indicator (V8 |
$451.96 |
|
|
| 2 | M-670178911 | Lh Fuel Pump (V6 Gasoline) |
$572.10 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
$17.92 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
$45.33 |
|
|
| 5 | M-670009292 | Fuel Adjustment Dowel |
$3.29 |
|
|
| 6 | M-670033279 | Clip |
$2.84 |
|
|
| 9 | M-670105399 | Pipe |
$188.09 |
|
|
| 10 | M-670103707 | Front Underfloor Fuel Pipes |
$155.76 |
|
|
| 11 | M-670005082 | Spring |
$1.56 |
|
|
| 13 | M-675000452 | Small Block Trim Screw Retai |
$1.23 |
|
|
| 14 | M-670108532 | Engine Compartment Fuel Pipe |
$21.16 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
$20.32 |
|
|
| 17 | M-670174329 | Heat Guard |
$96.38 |
|
|
| 22 | M-670100118 | Clip |
$2.79 |
|
|
| 23 | M-670105401 | Gasoline Pipe Section |
$37.78 |
|
|
| 24 | M-670030163 | Front Fuel Pipe Guard |
$8.92 |
|
|
| 25 | M-675000173 | Screw |
$2.04 |
|
|
| 28 | M-675000796 | Screw |
$2.86 |
|
