Diagram image not available

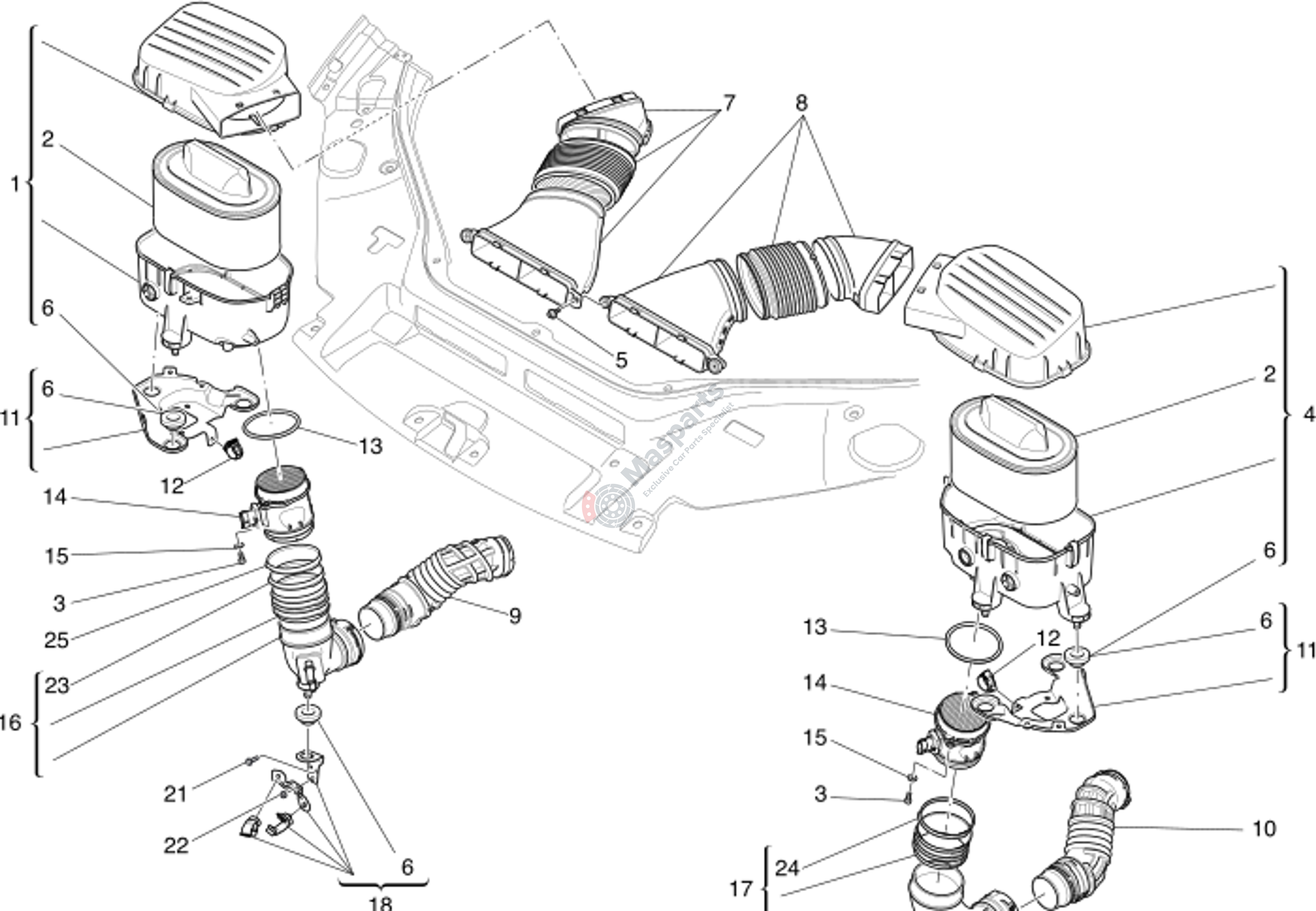

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007389 | Rh Filter Box Cpl |
$92.07 |
|
|
| 2 | M-670001545 | Air Filter |
$57.96 |
|
|
| 4 | M-673007391 | Lh Filter Box Cpl V6 Tt |
$92.07 |
|
|
| 5 | M-675000776 | Screw |
$2.07 |
|
|
| 6 | M-670005249 | Bushing |
$14.22 |
|
|
| 7 | M-670031925 | Upper Rh Air Intake Sleeve |
$130.02 |
|
|
| 8 | M-670031926 | Upper Lh Air Intake Sleeve |
$130.02 |
|
|
| 9 | M-670031927 | Lower Rh Air Intake Sleeve |
$145.31 |
|
|
| 10 | M-670031928 | Lower Lh Air Intake Sleeve |
$145.31 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
$15.62 |
|
|
| 12 | M-675000135 | Clip |
$0.97 |
|
|
| 13 | M-670005248 | Circlip |
$94.65 |
|
|
| 14 | M-670002164 | Air Flow Meter |
$208.92 |
|
|
| 15 | M-675000097 | Washer |
$1.07 |
|
|
| 16 | M-670162005 | Rh Clean Air Intake Sleeve |
$126.19 |
|
|
| 17 | M-670101260 | Lh Clean Air Intake Sleeve |
$131.93 |
|
|
| 18 | M-670102965 | Rh Clean Air Intake Sleeve B |
$14.28 |
|
|
| 21 | M-675000308 | Screw |
$1.62 |
|
|
| 23 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.53 |
|
|
| 24 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.53 |
|
|
| 25 | M-675000685 | Collar |
$7.38 |
|
