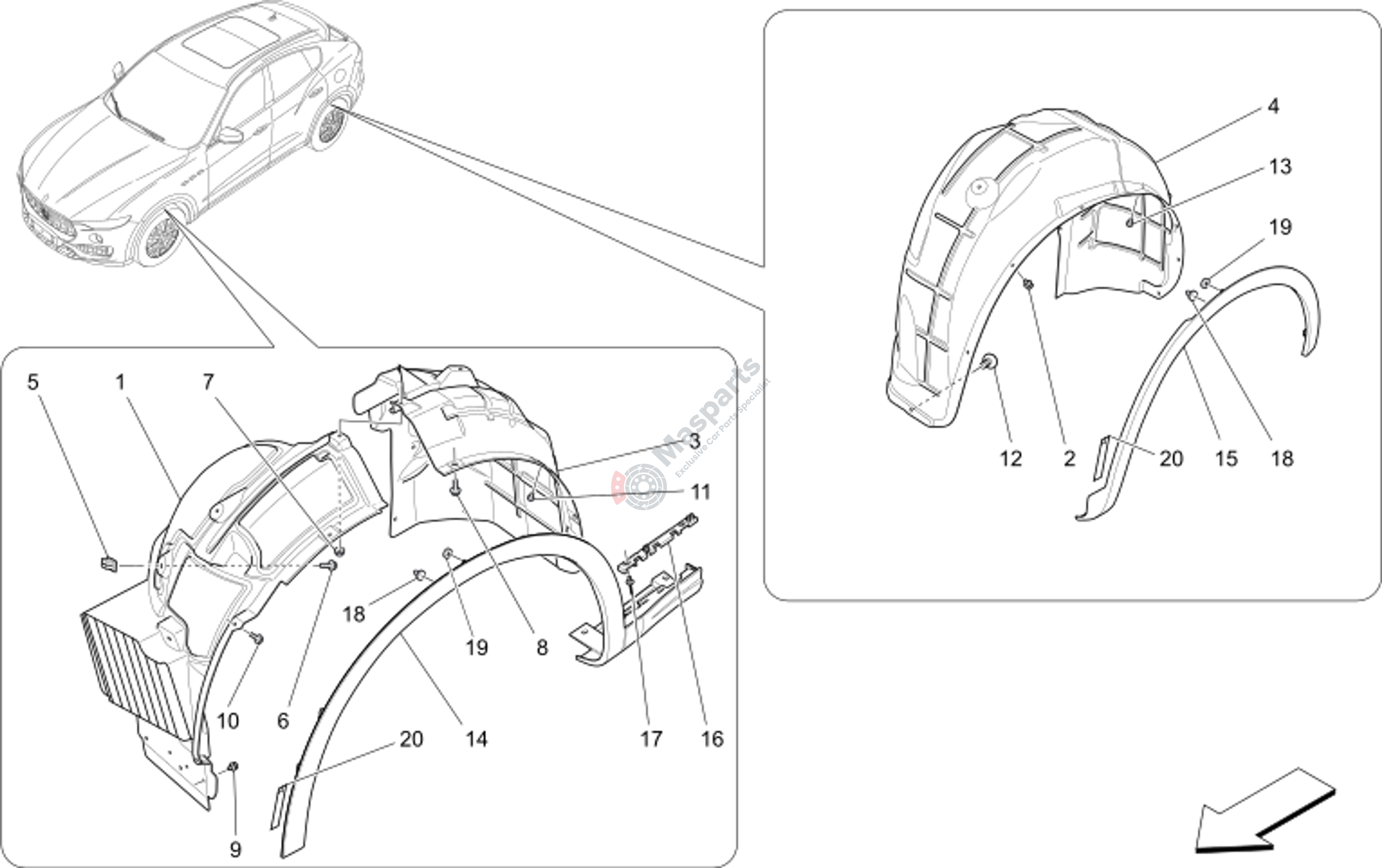

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102313 | Rh Front Wheelhouse Guard Fr |
$161.67 |
|
|
| 2 | M-675000629 | Fastening Clip |
$2.12 |
|
|
| 3 | M-670106676 | Rh Front Wheelhouse Guard Re |
$183.43 |
|
|
| 4 | M-670217118 | Rh Wheelhouse Guard |
$118.75 |
|
|
| 5 | M-675000327 | Fastening Block |
$0.98 |
|
|
| 6 | M-675000326 | Screw |
$1.98 |
|
|
| 7 | M-675000324 | Special Nut |
$1.28 |
|
|
| 8 | M-675000294 | Pin |
$2.51 |
|
|
| 9 | M-670009112 | Fastening Pin |
$3.67 |
|
|
| 10 | M-675000326 | Screw |
$1.98 |
|
|
| 11 | M-670003320 | Fastening Button |
$1.72 |
|
|
| 12 | M-670009112 | Fastening Pin |
$3.67 |
|
|
| 13 | M-675000326 | Screw |
$1.98 |
|
|
| 14 | M-670089060 | Rh Front Wheel Arch (Primeri |
$504.38 |
|
|
| 16 | M-670006112 | Bracket |
$7.34 |
|
|
| 17 | M-675000404 | Cpl. Tv Control Station Fixi |
$1.48 |
|
|
| 18 | M-675000609 | Pin |
$4.05 |
|
|
| 19 | M-670036883 | Wheelhouse Liner Adhesive Bu |
$2.45 |
|
|
| 20 | M-670105674 | Adhesive Tape |
$2.31 |
|
