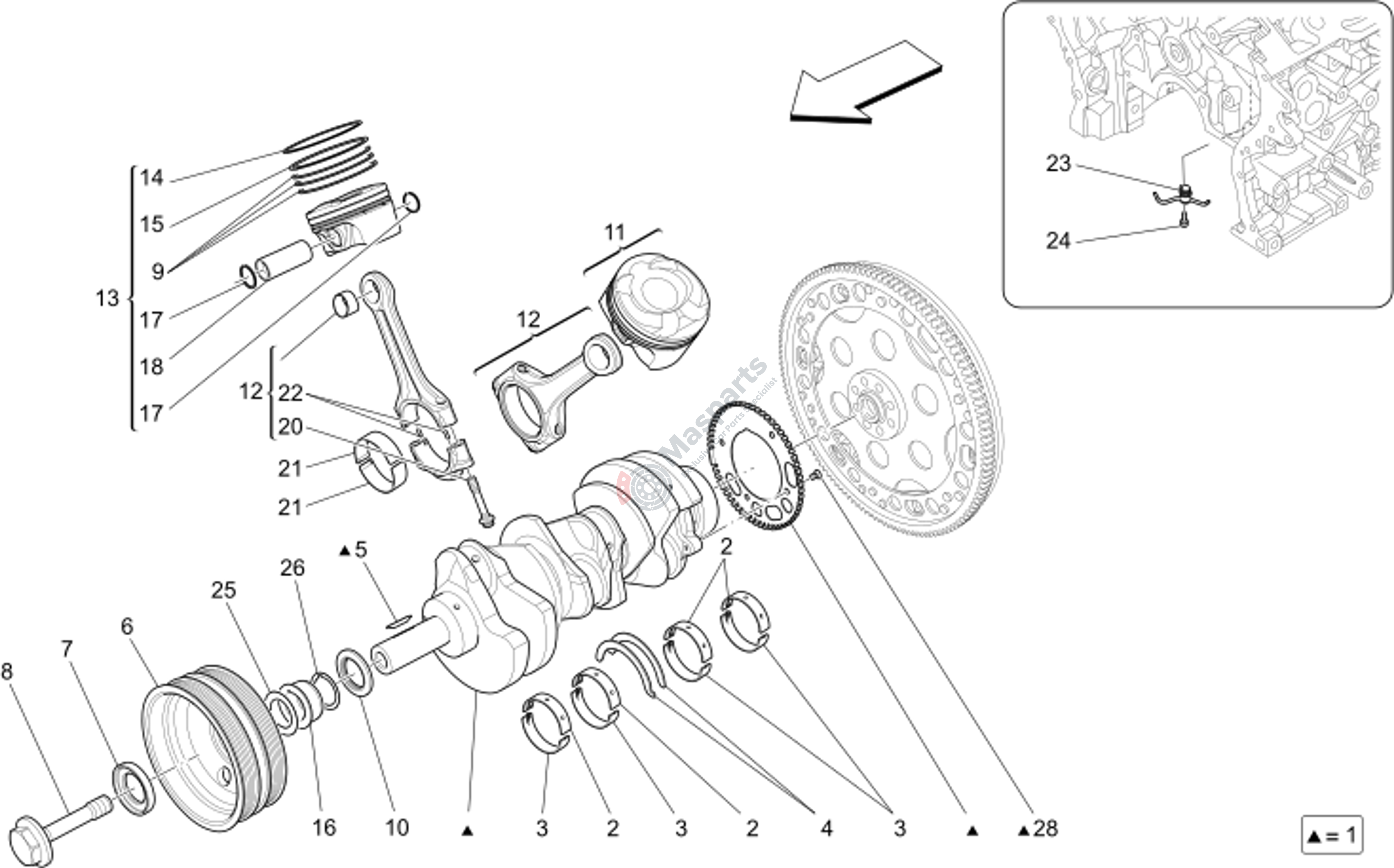

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-868821 | Cpl Engine Shaft |
$2,556.60 |
|
|
| 2 | M-280323 | Upper Half-Bearing (Red) |
$24.29 |
|
|
| 3 | M-280321 | Lower Half-Bearing (Red) |
$24.29 |
|
|
| 4 | M-304033 | Shim |
$19.45 |
|
|
| 5 | M-279503 | Key |
$12.23 |
|
|
| 6 | M-280609 | Torsion Damper |
$284.90 |
|
|
| 7 | M-282723 | Washer |
$23.91 |
|
|
| 9 | M-287177 | Oil Scraper Ring |
$59.17 |
|
|
| 10 | M-275339 | Gasket (Crank Shaft) |
$30.83 |
|
|
| 11 | M-318342 | Piston With Segments (Lh Sid |
$393.85 |
|
|
| 12 | M-326368 | Piston Rod Gasoline V6 |
$192.51 |
|
|
| 13 | M-318341 | Piston With Segments (Rh Sid |
$393.85 |
|
|
| 14 | M-286954 | O-Ring |
$80.26 |
|
|
| 15 | M-299797 | 2Nd Groove Seal Ring |
$21.79 |
|
|
| 16 | M-282814 | Spacer |
$226.43 |
|
|
| 17 | M-270275 | Stop Ring |
$11.20 |
|
|
| 18 | M-270274 | Pin |
$35.08 |
|
|
| 20 | M-280576 | Conrod Link Clamping Screw |
$65.12 |
|
|
| 21 | M-280325 | Con.Rod Half-Bearing |
$16.20 |
|
|
| 22 | M-292751 | Centring Pin For Connecting |
$34.58 |
|
|
| 23 | M-303031 | Cpl V6 Piston Heat-Exch. Noz |
$61.13 |
|
|
| 24 | M-294780 | Screw |
$2.46 |
|
|
| 25 | M-310101 | Diamond Washer (Turquoise) |
$65.06 |
|
|
| 26 | M-310102 | Diamond Washer (Turquoise) |
$62.93 |
|
|
| 28 | M-281836 | Screw |
$22.77 |
|
