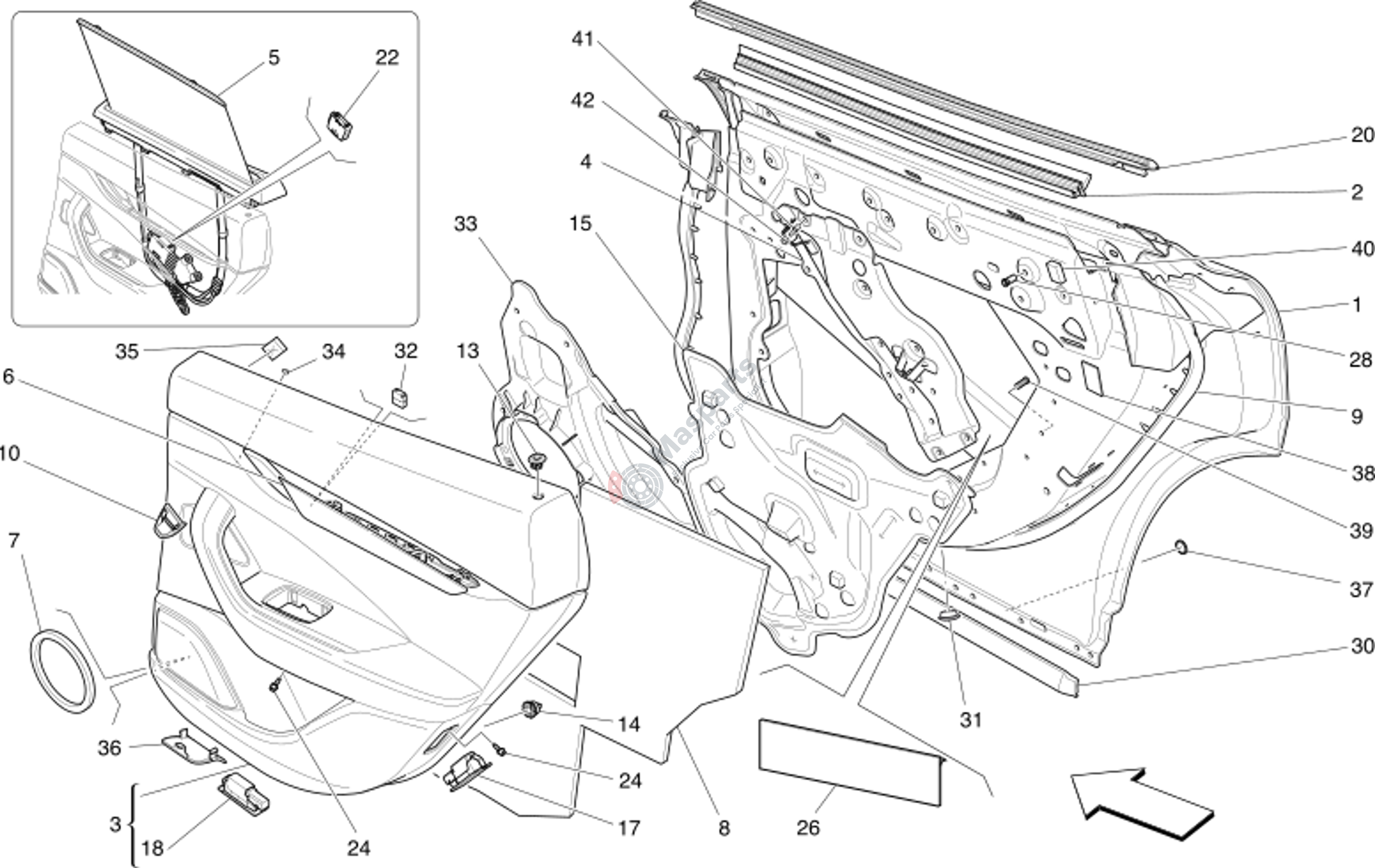

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009991 | Cpl Rh Rear Door |
$1,591.56 |
|
|
| 4 | M-670032898 | Rh Rear Door Central Reinfor |
$56.60 |
|
|
| 7 | M-673005973 | Woofer Speaker Seal |
$5.27 |
|
|
| 8 | M-673005972 | Rear Acoustic Insulator |
$41.00 |
|
|
| 13 | M-673005970 | Lock Knob Lid |
$7.07 |
|
|
| 14 | M-670219478 | Perno Di Fiss. |
$2.86 |
|
|
| 15 | M-670032895 | Rh Rear Door Water Guard |
$71.04 |
|
|
| 17 | M-670106485 | R.H. Domelight |
$11.58 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.67 |
|
|
| 22 | M-673003891 | Rear Lh And Rh Sunshade Ctr. |
$229.02 |
|
|
| 24 | M-675000432 | Screw |
$2.30 |
|
|
| 26 | M-670034380 | Doors Soundproofing Adhesive |
$3.61 |
|
|
| 28 | M-670005149 | Rivet |
$2.94 |
|
|
| 30 | M-670033840 | Rear R.H. Dust Protection Ga |
$48.88 |
|
|
| 32 | M-673005975 | Rh Locking System Micro Swit |
$21.44 |
|
|
| 34 | M-673005974 | Metal Bushing |
$2.45 |
|
|
| 35 | M-673005979 | Locator Seal |
$2.14 |
|
|
| 37 | M-675000762 | Rubber Closing Plug |
$1.94 |
|
|
| 38 | M-675000401 | Noise-Proof Felt Pad |
$0.99 |
|
|
| 39 | M-670005788 | Pin |
$2.94 |
|
|
| 41 | M-670039784 | Rivet Pin |
$6.15 |
|
|
| 42 | M-675000095 | Nut |
$0.78 |
|
