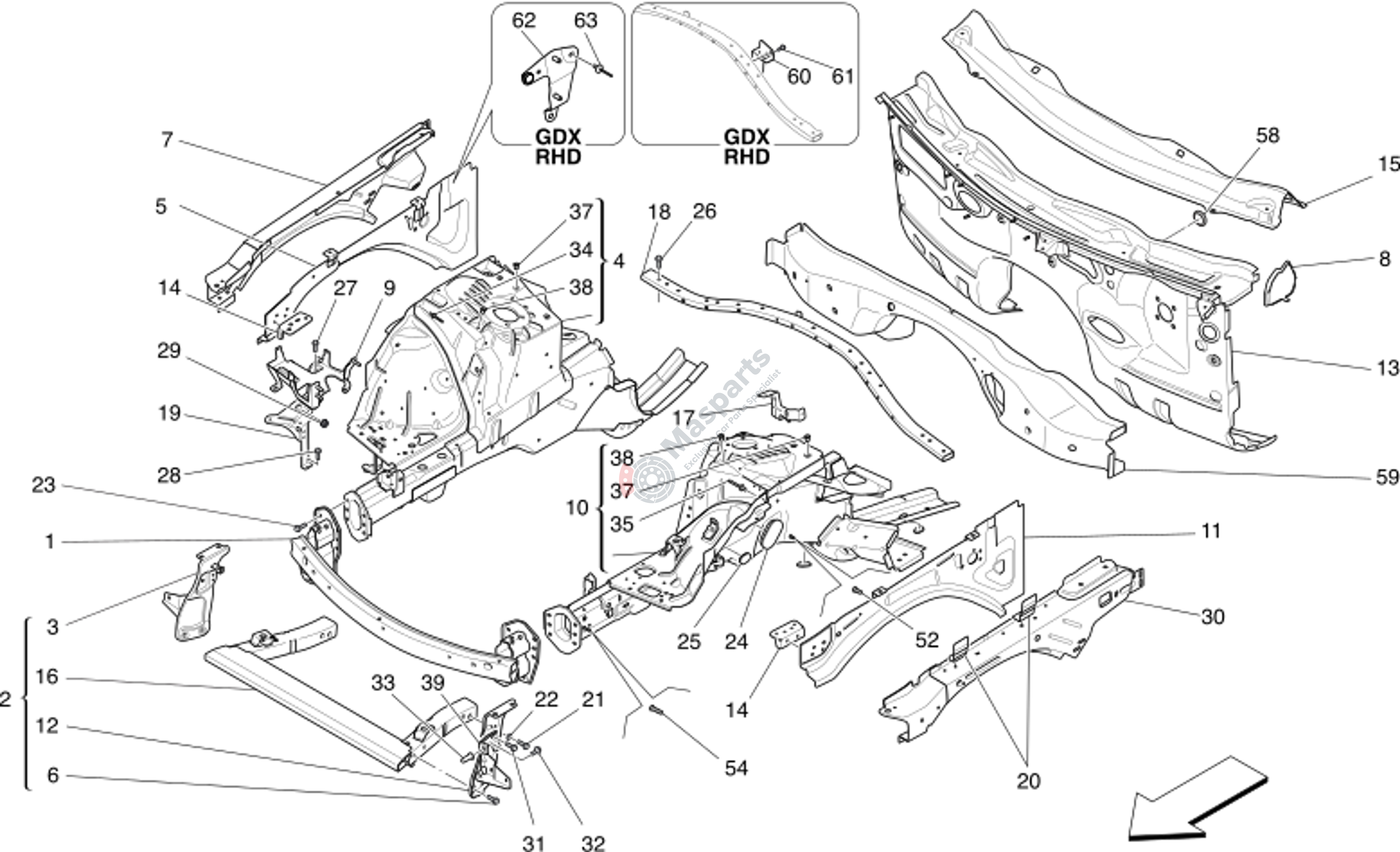

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007200 | Front Cross Member Ass. |
€476,00 |
|
|
| 3 | M-670175518 | Rh Bracket |
€31,46 |
|
|
| 4 | M-673010951 | Rh Complete Front Control Ro |
€1.924,40 |
|
|
| 5 | M-673005729 | Rh Upper Strut Frame Assembl |
€145,35 |
|
|
| 6 | M-675000469 | Screw |
€1,04 |
|
|
| 7 | M-673010873 | Rh Upper Strut Box Section |
€156,40 |
|
|
| 9 | M-670104471 | Fuse Box Mounting Bracket |
€30,36 |
|
|
| 10 | M-673014099 | Lh Complete Front Control Ro |
€2.056,15 |
|
|
| 11 | M-673005658 | Lh Upper Rail Frame Assembly |
€156,40 |
|
|
| 12 | M-670175519 | Lh Bracket |
€29,62 |
|
|
| 13 | M-673009450 | Lower Instrument Panel |
€371,68 |
|
|
| 14 | M-670034251 | Headlamp Support Bracket |
€24,38 |
|
|
| 15 | M-673005662 | Windscreen Lower Cross Membe |
€71,57 |
|
|
| 16 | M-670175522 | Pedestrian Impact Crossmembe |
€351,90 |
|
|
| 18 | M-670222382 | Lhd Suspension Connecting Cr |
€77,61 |
|
|
| 20 | M-670034858 | Fender Bracket |
€2,61 |
|
|
| 21 | M-670036974 | Special Screw |
€4,28 |
|
|
| 22 | M-675000105 | Washer |
€1,89 |
|
|
| 23 | M-670035227 | Screw And Washer |
€2,09 |
|
|
| 24 | M-670004843 | Plug |
€3,13 |
|
|
| 25 | M-670004844 | Plug |
€2,61 |
|
|
| 26 | M-675000470 | Screw |
€1,13 |
|
|
| 27 | M-675000382 | Screw |
€2,10 |
|
|
| 28 | M-675000421 | Screw |
€1,78 |
|
|
| 29 | M-675000095 | Nut |
€0,66 |
|
|
| 30 | M-673010874 | Lh Upper Strut Box Section |
€153,85 |
|
|
| 31 | M-675000469 | Screw |
€1,04 |
|
|
| 32 | M-675000469 | Screw |
€1,04 |
|
|
| 33 | M-670002185 | Rivet |
€2,50 |
|
|
| 37 | M-670005395 | Rivet |
€3,13 |
|
|
| 38 | M-670006571 | Rivet |
€2,50 |
|
|
| 39 | M-670034982 | Bracket |
€3,86 |
|
|
| 52 | M-675000623 | Special Screw |
€1,46 |
|
|
| 58 | M-670030073 | Rubber Plug |
€1,46 |
|
|
| 59 | M-673008198 | Front Crossmember |
€195,50 |
|
