Diagram image not available

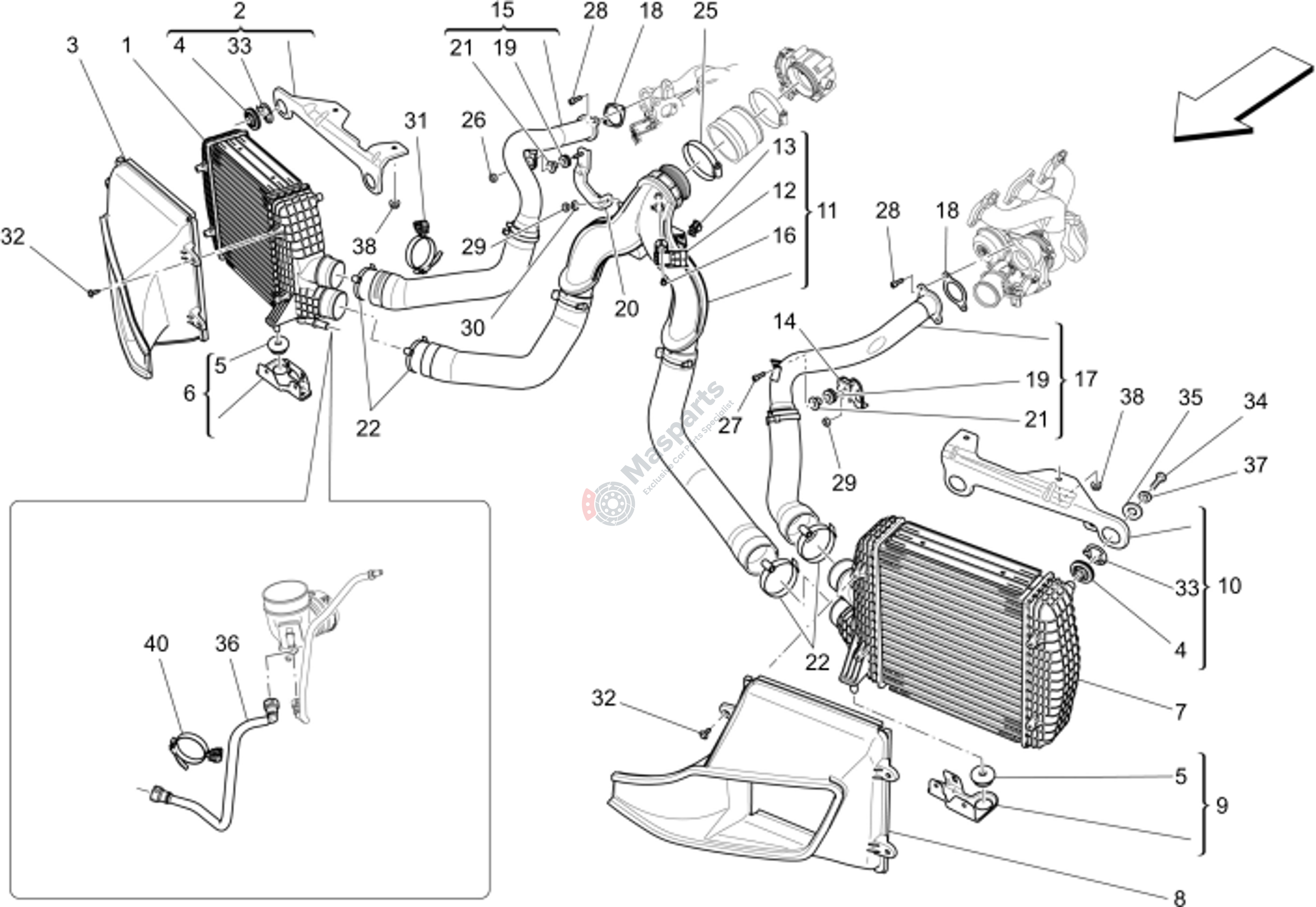

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670109554 | Rh Intercooler M161 V6 Bz |
$399.46 |
|
|
| 2 | M-670031962 | Rh Intercooler Bracket |
$31.63 |
|
|
| 4 | M-675000201 | Small Block. |
$9.27 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
$3.14 |
|
|
| 6 | M-670031963 | Rh Lower Intercooler Bracket |
$60.17 |
|
|
| 7 | M-670109550 | Lh Intercooler |
$416.87 |
|
|
| 9 | M-670031960 | Lh Lower Intercooler Bracket |
$68.15 |
|
|
| 10 | M-670031961 | Lh Intercooler Bracket |
$35.90 |
|
|
| 11 | M-670039138 | Sleeve |
$420.74 |
|
|
| 12 | M-675000248 | Air Temp Sensor |
$116.45 |
|
|
| 13 | M-670006739 | Retaining Clip |
$2.42 |
|
|
| 14 | M-670009370 | Lh Bracket |
$10.67 |
|
|
| 15 | M-670104145 | Sleeve From Turbine To Rh In |
$277.59 |
|
|
| 16 | M-675000190 | Screw |
$2.89 |
|
|
| 17 | M-670104915 | Sleeve From Turbine To Lh In |
$264.05 |
|
|
| 18 | M-670006210 | Gasket |
$4.29 |
|
|
| 19 | M-675000016 | Rubber Bushing |
$5.71 |
|
|
| 20 | M-670105605 | Rh Bracket |
$11.08 |
|
|
| 21 | M-675000017 | Spacer |
$8.09 |
|
|
| 22 | M-675000362 | Collar |
$4.81 |
|
|
| 25 | M-675000685 | Collar |
$7.46 |
|
|
| 27 | M-675000088 | Screw |
$2.62 |
|
|
| 28 | M-675000104 | Screw |
$1.56 |
|
|
| 30 | M-675000366 | Washer |
$1.66 |
|
|
| 32 | M-675000354 | Screw |
$2.69 |
|
|
| 35 | M-670039441 | Washer |
$12.89 |
|
|
| 36 | M-670105049 | Vapour Pipe |
$38.29 |
|
|
| 37 | M-675000718 | Washer |
$2.21 |
|
|
| 40 | M-670101334 | Clip |
$3.04 |
|
