Diagram image not available

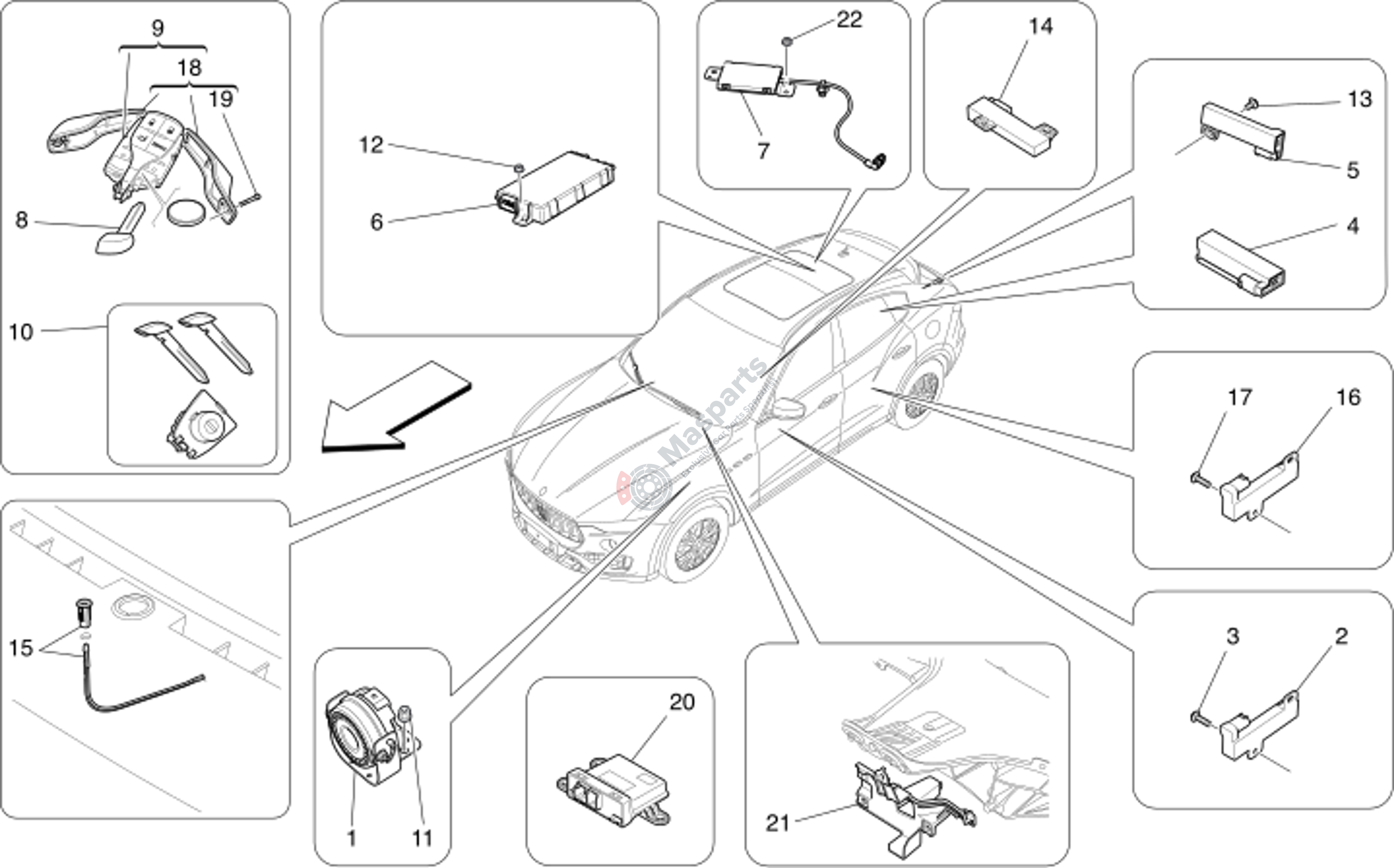

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670001723 | Alarm System Siren M156 |
€134,16 |
|
|
| 2 | M-675000207 | Passive Entry Antenna |
€17,72 |
|
|
| 3 | M-673002004 | Screw For Pass. Entry Antenn |
€11,61 |
|
|
| 5 | M-675000357 | Passive Entry Antenna |
€17,42 |
|
|
| 8 | M-673000106 | Key Blade 670013664 |
€108,56 |
|
|
| 11 | M-675000095 | Nut |
€0,68 |
|
|
| 13 | M-675001953 | Screw |
€1,02 |
|
|
| 14 | M-675000207 | Passive Entry Antenna |
€17,72 |
|
|
| 15 | M-670032806 | Anti-Theft System Infoled |
€35,60 |
|
|
| 16 | M-675000207 | Passive Entry Antenna |
€17,72 |
|
|
| 17 | M-673002004 | Screw For Pass. Entry Antenn |
€11,61 |
|
|
| 19 | M-673008174 | Fob Cover Screw |
€4,97 |
|
|
| 20 | M-670153631 | Gateway Security Module |
€87,72 |
|
|
| 21 | M-670102483 | Gateway Bracket Lhd+ 9Fx+.. |
€12,08 |
|
