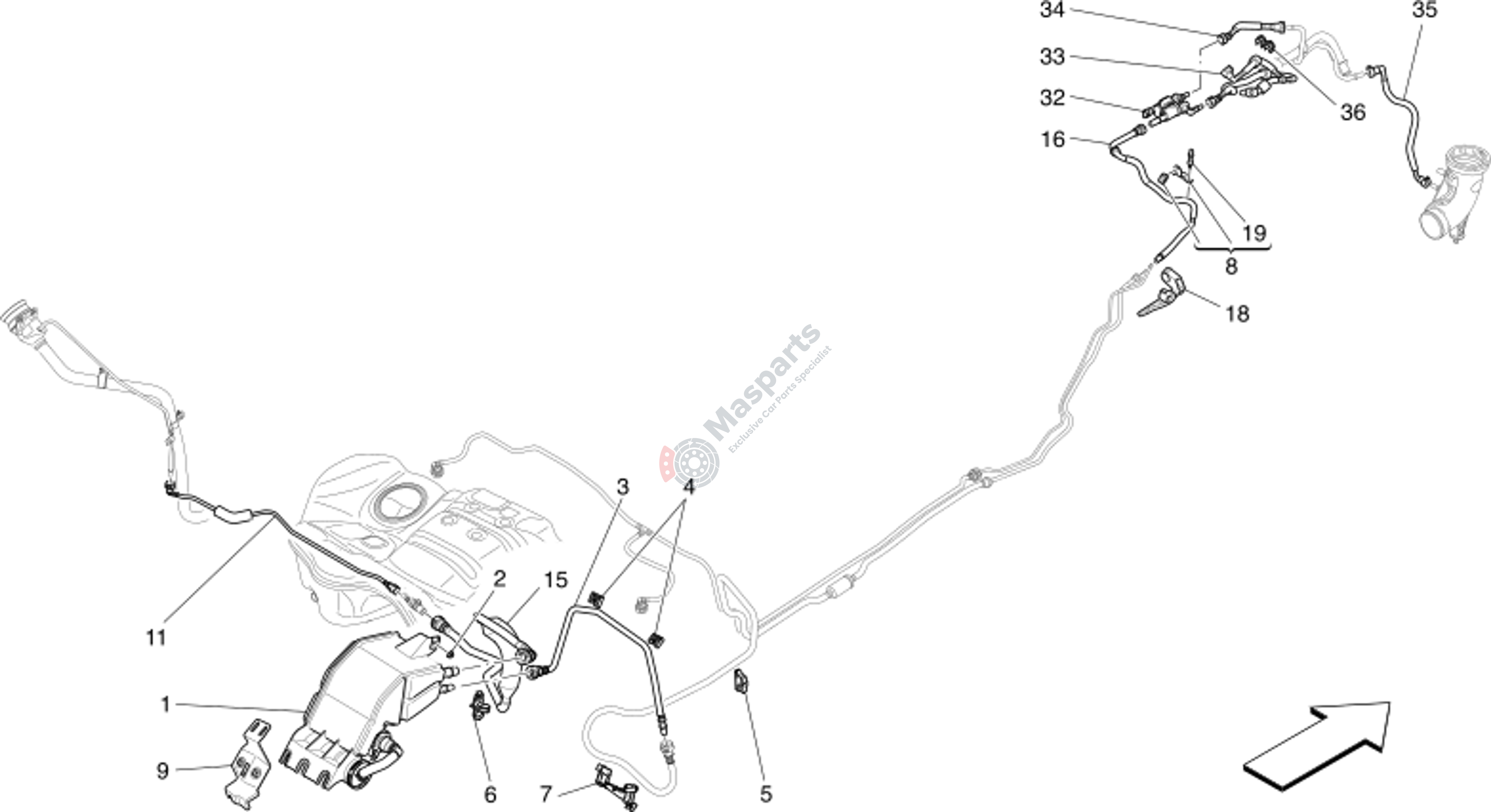

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033287 | Fuel Vapour Filter |
$199.67 |
|
|
| 2 | M-675000095 | Nut |
$0.78 |
|
|
| 3 | M-670033294 | Canister Pipe |
$32.80 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-675000790 | Clip |
$1.27 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.18 |
|
|
| 7 | M-670031947 | Vapour System Clip |
$10.15 |
|
|
| 8 | M-670153080 | Motor Cover Rear Bracket |
$18.56 |
|
|
| 9 | M-670217138 | Canister Bracket |
$15.44 |
|
|
| 11 | M-670033572 | Flexible Vapour Pipe |
$35.88 |
|
|
| 15 | M-670033274 | Vent Pipe |
$93.40 |
|
|
| 16 | M-670104109 | Vapour Pipe To Intake Manifo |
$43.97 |
|
|
| 18 | M-670104126 | Canister Pipe Bracket |
$7.23 |
|
|
| 19 | M-670005779 | Ball Pin |
$6.15 |
|
|
| 32 | M-670162028 | Solenoid Valve |
$39.77 |
|
|
| 33 | M-670104110 | Vapour Pipe |
$108.74 |
|
|
| 34 | M-670104111 | Vapour Pipe |
$23.60 |
|
|
| 35 | M-670104112 | Vapour Pipe |
$34.49 |
|
|
| 36 | M-670104150 | Clip |
$1.00 |
|
