The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

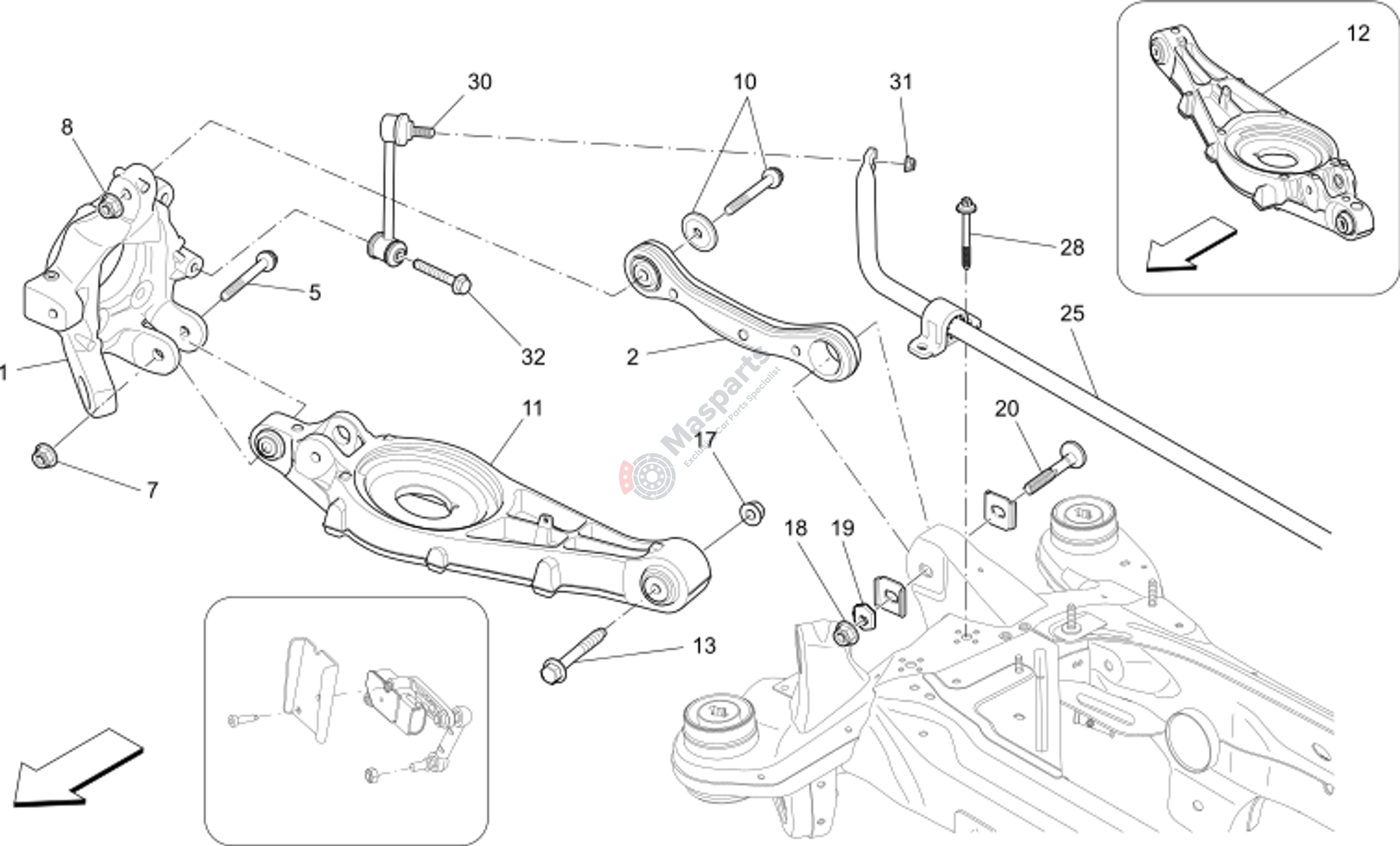

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670308370 | Asta Lat.Sosp.Post. |
€69,02 |
|
|
| 5 | M-670035563 | Screw ˇ |
€8,10 |
|
|
| 7 | M-675000584 | Nut |
€4,97 |
|
|
| 8 | M-670035573 | Nut |
€3,13 |
|
|
| 11 | M-670106334 | Rh Rear Suspension Lever M16 |
€234,60 |
|
|
| 12 | M-670106331 | Lh Rear Suspension Lever M16 |
€234,60 |
|
|
| 13 | M-670035562 | Screw ˇ |
€5,70 |
|
|
| 17 | M-675000127 | Nut |
€1,86 |
|
|
| 18 | M-670035570 | Nut ˇ |
€2,59 |
|
|
| 19 | M-670002806 | Special Washer With Eccentri |
€5,24 |
|
|
| 20 | M-670035569 | Screw ˇ |
€5,61 |
|
|
| 25 | M-670038850 | Rear Stabilizer Bar |
€499,80 |
|
|
| 28 | M-675000140 | Screw |
€2,09 |
|
|
| 30 | M-670038693 | Spherical Tension Rod Rh |
€43,01 |
|
|
| 31 | M-670002916 | Nut |
€2,09 |
|
|
| 32 | M-670035582 | Screw ˇ |
€3,34 |
|
