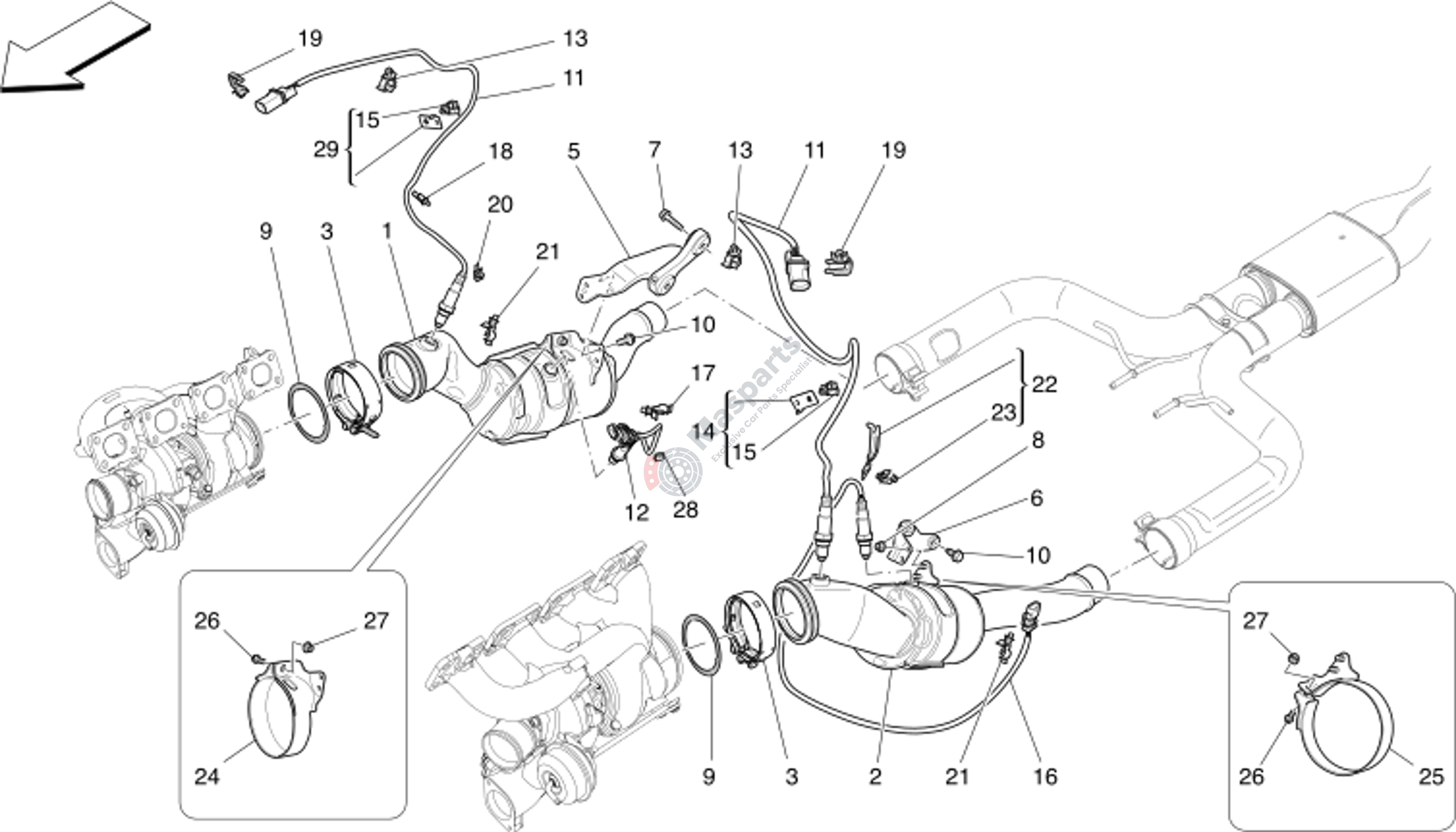

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154492 | Cpl Rh Catalytic Converter |
$3,509.04 |
|
|
| 2 | M-670154490 | Cpl Lh Catalytic Converter |
$3,033.97 |
|
|
| 3 | M-675000060 | Collar |
$29.90 |
|
|
| 5 | M-670104017 | Rh Bracket |
$90.47 |
|
|
| 6 | M-670104016 | Lh Bracket |
$82.82 |
|
|
| 7 | M-675000397 | Screw |
$9.35 |
|
|
| 8 | M-675000780 | Nut |
$2.47 |
|
|
| 9 | M-675000052 | Gasket |
$8.73 |
|
|
| 11 | M-670104046 | Lambda Sensor |
$125.31 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$125.31 |
|
|
| 13 | M-670005126 | Clip |
$1.13 |
|
|
| 14 | M-670002259 | Bracket |
$6.86 |
|
|
| 15 | M-675000134 | Clip |
$6.08 |
|
|
| 16 | M-670104045 | Rear Lambda Sensor |
$125.31 |
|
|
| 17 | M-675000143 | Clip |
$1.00 |
|
|
| 18 | M-670003739 | Clip |
$2.52 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.75 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.75 |
|
|
| 21 | M-675000143 | Clip |
$1.00 |
|
|
| 22 | M-670104048 | Bracket Assembly |
$14.74 |
|
|
| 23 | M-670009081 | Fastening Clip |
$10.26 |
|
|
| 26 | M-675000257 | Screw |
$6.16 |
|
|
| 27 | M-675000779 | Nut |
$2.90 |
|
|
| 28 | M-670105160 | Retaining Clip |
$1.50 |
|
|
| 29 | M-670002259 | Bracket |
$6.86 |
|
