The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

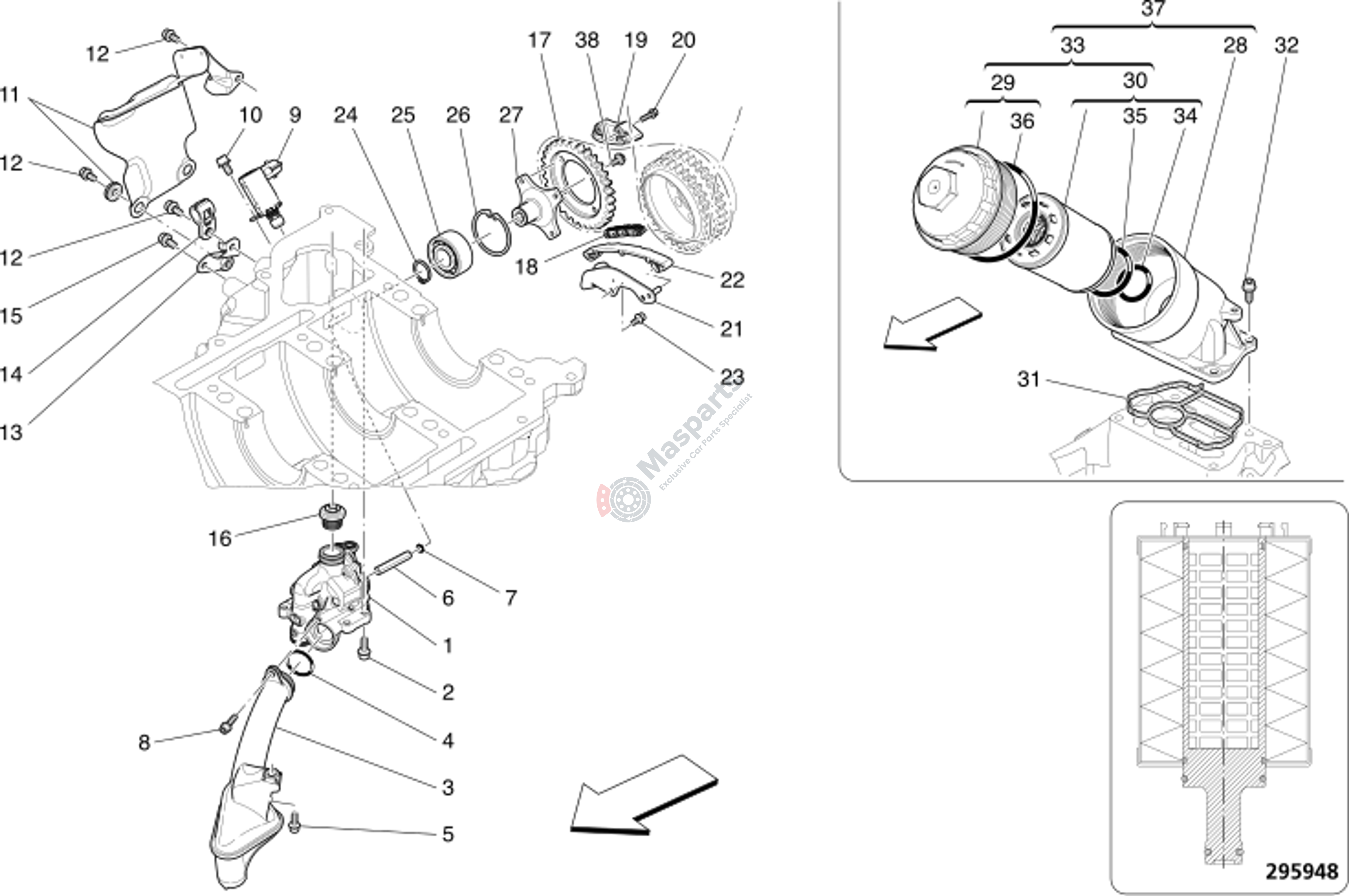

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-807411 | Oil Pump Assembly |
€853,40 |
|
|
| 2 | M-282409 | Screw |
€3,24 |
|
|
| 3 | M-787088 | Oil Suction Fan |
€84,36 |
|
|
| 4 | M-271463 | O.R. Gasket |
€2,09 |
|
|
| 5 | M-301493 | Screw |
€1,88 |
|
|
| 6 | M-288129 | Oil Pump Control Hex.Bar |
€13,09 |
|
|
| 7 | M-11057076 | Seeger Ring |
€2,21 |
|
|
| 8 | M-282397 | Screw |
€2,09 |
|
|
| 9 | M-269972 | Oil Pressure Valve |
€163,20 |
|
|
| 10 | M-233600 | Screw |
€1,99 |
|
|
| 11 | M-291662 | Heat Guard |
€132,48 |
|
|
| 12 | M-231616 | Screw |
€1,78 |
|
|
| 13 | M-279626 | Bracket |
€6,90 |
|
|
| 14 | M-244219 | Clip |
€5,61 |
|
|
| 15 | M-233600 | Screw |
€1,99 |
|
|
| 16 | M-294614 | Non Return Valve |
€12,84 |
|
|
| 17 | M-286225 | Pumps Control Toothed Wheel |
€139,40 |
|
|
| 18 | M-271871 | Oil Pump Chain |
€76,73 |
|
|
| 20 | M-282397 | Screw |
€2,09 |
|
|
| 21 | M-276463 | Guide Shoe Support |
€18,36 |
|
|
| 23 | M-282393 | Screw |
€3,34 |
|
|
| 24 | M-11066876 | Seeger Ring For Shaft D.20 |
€4,45 |
|
|
| 25 | M-247049 | Bearing |
€42,84 |
|
|
| 26 | M-11060276 | Seeger Ring |
€1,46 |
|
|
| 27 | M-288133 | Oil Pump Shaft Joint |
€96,05 |
|
|
| 28 | M-295950 | V8 Complete Oil Filter Assem |
€148,12 |
|
|
| 29 | M-286244 | Threaded Plug |
€74,21 |
|
|
| 30 | M-295948 | V8 Oil Filter Cartridge |
€41,33 |
|
|
| 31 | M-270805 | Oil Filter Gasket |
€15,73 |
|
|
| 32 | M-231618 | Screw |
€0,95 |
|
|
| 33 | M-295943 | V8 Oil Filter (With Cap) |
€52,95 |
|
|
| 35 | M-167135 | O-Ring D.267X178 |
€1,46 |
|
|
| 37 | M-295950 | V8 Complete Oil Filter Assem |
€148,12 |
|
|
| 38 | M-284899 | Hex Washer Screw |
€15,46 |
|
