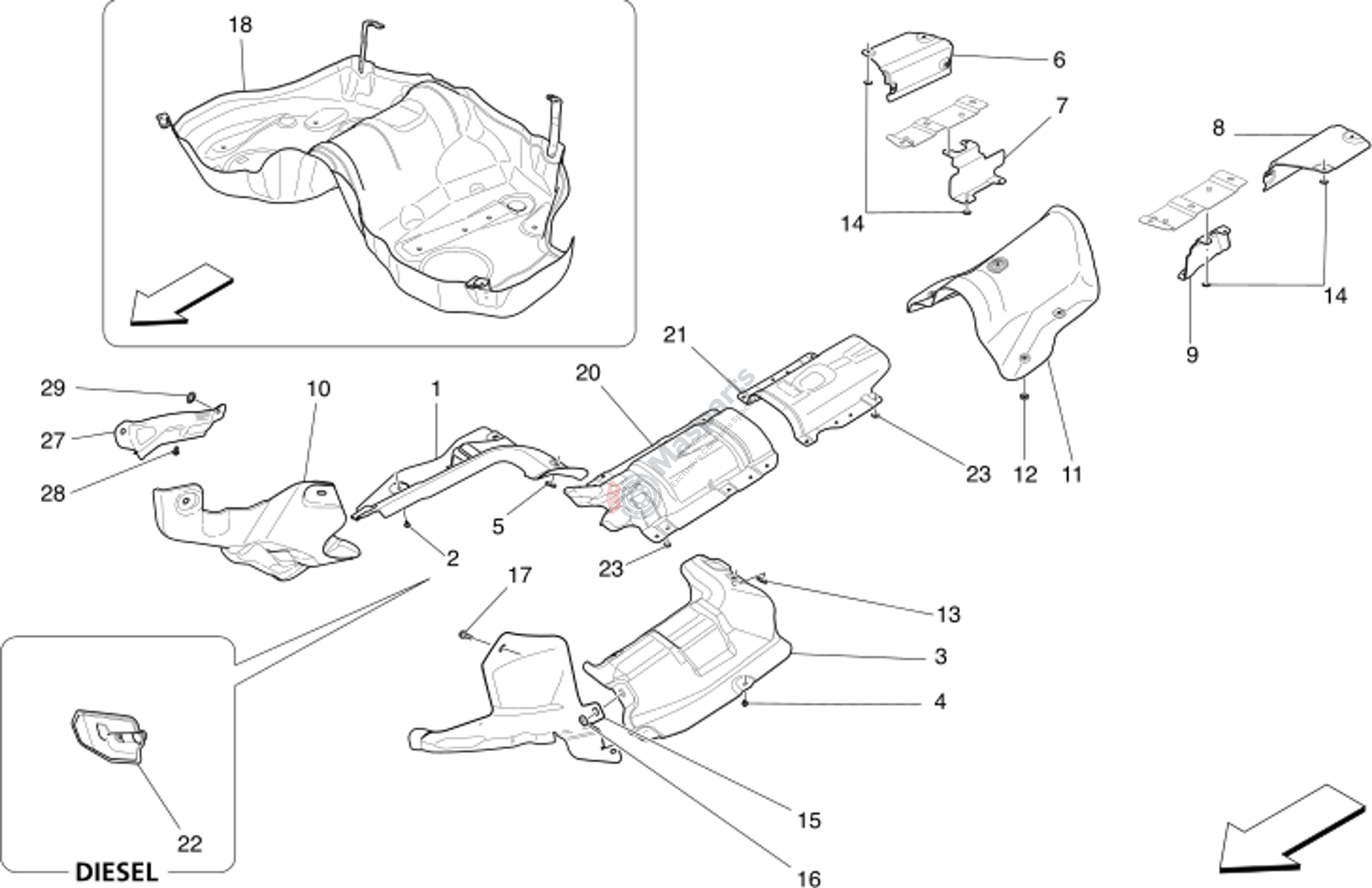

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003899 | R.H. Heat Shield |
$37.09 |
|
|
| 2 | M-675000136 | Screw |
$2.36 |
|
|
| 4 | M-675000136 | Screw |
$2.36 |
|
|
| 5 | M-675000047 | Washer |
$5.83 |
|
|
| 6 | M-670004545 | Rear R.H. Heat Shield |
$24.95 |
|
|
| 7 | M-670031941 | Rh Silencer Heat Shield |
$22.70 |
|
|
| 8 | M-670004542 | Rear L.H. Heat Shield |
$24.95 |
|
|
| 10 | M-670103709 | Front Fuel Pipe Guard |
$97.45 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.92 |
|
|
| 14 | M-675000047 | Washer |
$5.83 |
|
|
| 15 | M-670106027 | Shield |
$35.59 |
|
|
| 18 | M-670157367 | Heat Cover |
$318.41 |
|
|
| 20 | M-670104056 | Front Drive Shaft Guard |
$60.85 |
|
|
| 21 | M-670031973 | Drive Shaft Central Guard |
$29.16 |
|
|
| 23 | M-675000047 | Washer |
$5.83 |
|
