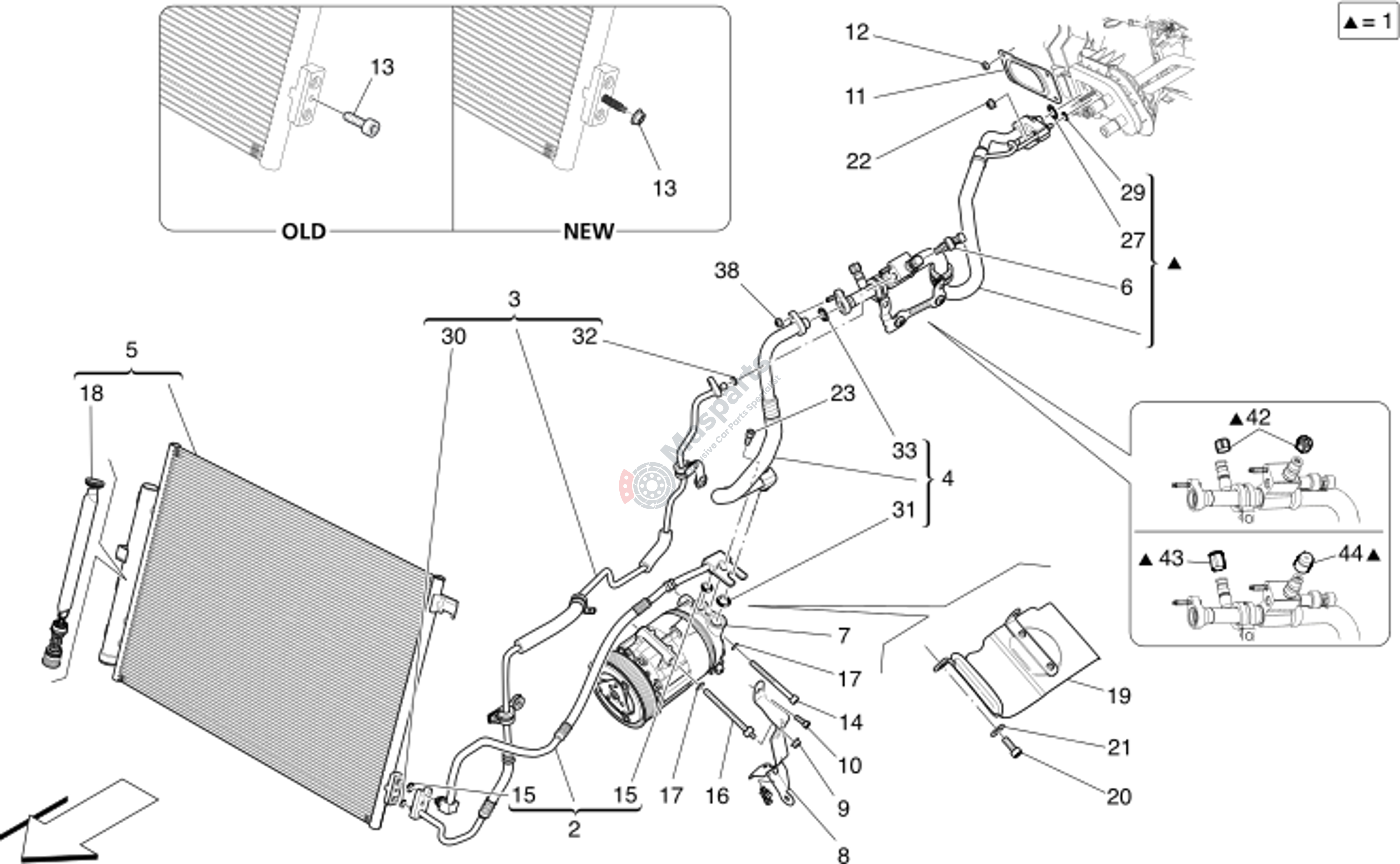

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038664 | Pipe From Evapourator To Uni |
$248.49 |
|
|
| 2 | M-670104392 | Pipe A.C. - Compressor |
$110.00 |
|
|
| 3 | M-670003216 | Pipe From Condenser To Union |
$138.49 |
|
|
| 4 | M-670104394 | Pipe From Compressor To Unio |
$114.91 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$808.33 |
|
|
| 6 | M-670038668 | Pressostat |
$60.67 |
|
|
| 7 | M-954109 | Ac Compressor V8 |
$1,528.26 |
|
|
| 8 | M-819174 | Bracket |
$43.27 |
|
|
| 9 | M-14059211 | Nut |
$1.49 |
|
|
| 10 | M-675000314 | Screw |
$1.38 |
|
|
| 11 | M-670005087 | Plug |
$16.65 |
|
|
| 12 | M-675000315 | Nut |
$1.78 |
|
|
| 13 | M-675000456 | Screw |
$4.70 |
|
|
| 14 | M-14307224 | Screw |
$3.93 |
|
|
| 15 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.89 |
|
|
| 16 | M-286687 | Column |
$33.78 |
|
|
| 17 | M-11193874 | Washer |
$1.36 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$234.74 |
|
|
| 22 | M-675000328 | Nut |
$1.39 |
|
|
| 23 | M-675000249 | Screw |
$1.41 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.32 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.25 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.25 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.32 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.99 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
$1.96 |
|
|
| 38 | M-675000315 | Nut |
$1.78 |
|
|
| 42 | M-673009426 | Gas Cap |
$28.67 |
|
