Diagram image not available

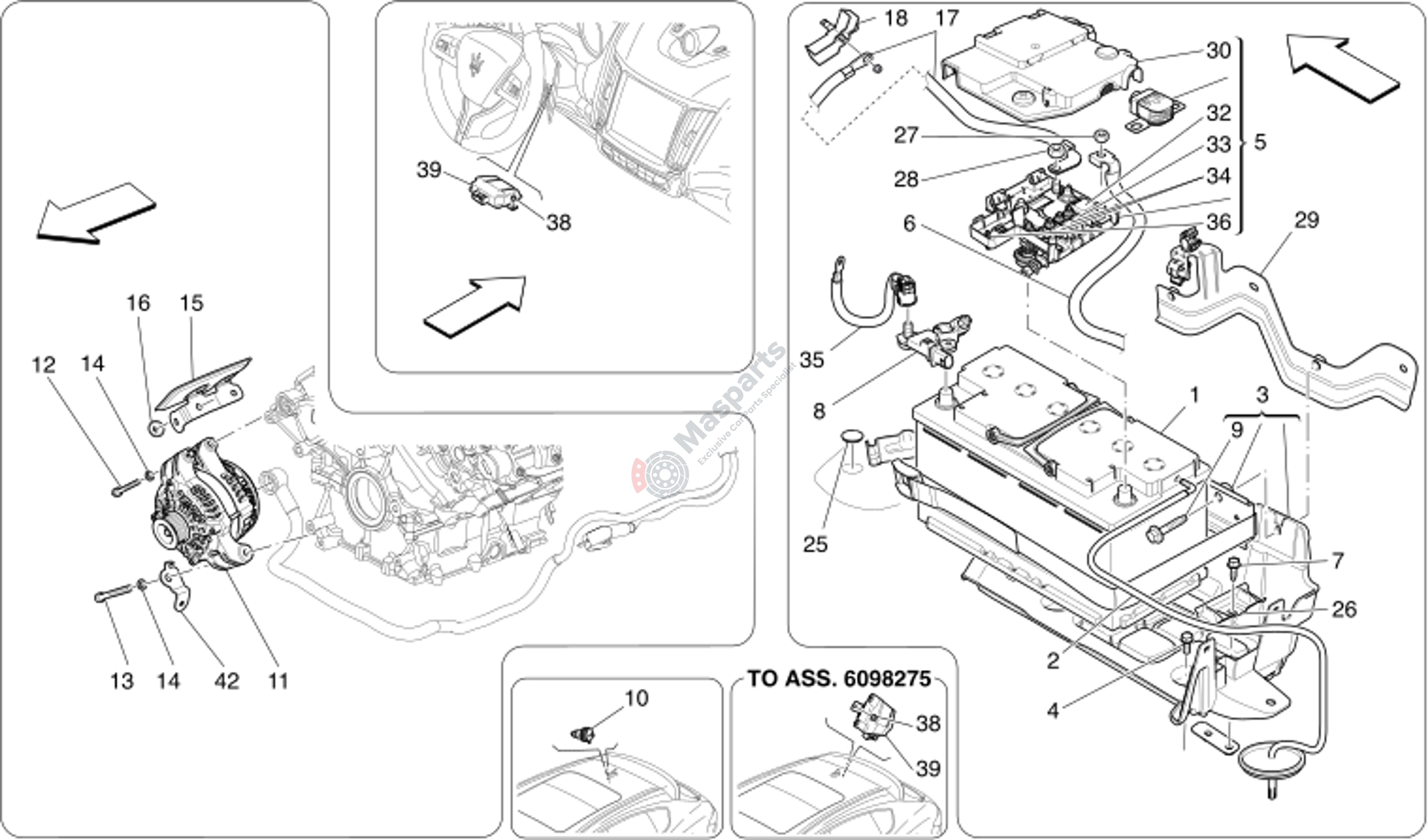

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670008109 | Hose |
$19.87 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$82.15 |
|
|
| 4 | M-675000174 | Screw |
$1.63 |
|
|
| 5 | M-670105054 | Battery Multi-Function Ecu |
$145.77 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$29.90 |
|
|
| 7 | M-675000088 | Screw |
$2.58 |
|
|
| 8 | M-670107365 | Ibs Sensor |
$103.40 |
|
|
| 9 | M-675000214 | Screw |
$24.65 |
|
|
| 11 | M-283531 | Alternator |
$1,018.57 |
|
|
| 13 | M-14359524 | Screw |
$3.71 |
|
|
| 14 | M-11193874 | Washer |
$1.33 |
|
|
| 16 | M-675000093 | Nut |
$1.44 |
|
|
| 17 | M-670032363 | Battery Positive Pole Cable |
$186.51 |
|
|
| 18 | M-675000578 | Connector |
$23.35 |
|
|
| 25 | M-675000244 | Plug |
$0.97 |
|
|
| 26 | M-675000426 | Battery Bracket |
$6.42 |
|
|
| 27 | M-675000439 | Nut |
$3.63 |
|
|
| 28 | M-675000450 | Nut |
$4.46 |
|
|
| 29 | M-670031002 | Battery Compartment Bracket |
$27.88 |
|
|
| 30 | M-675000806 | Fuse Ecu Cover |
$13.21 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.63 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.33 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.20 |
|
|
| 35 | M-670109171 | Battery Negative Pole Cable |
$34.89 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.69 |
|
|
| 38 | M-675000095 | Nut |
$0.76 |
|
|
| 39 | M-675000786 | Voltage Stabilizer |
$219.17 |
|
|
| 42 | M-831230 | Service Cable Fixing Bracket |
$22.42 |
|
