Diagram image not available

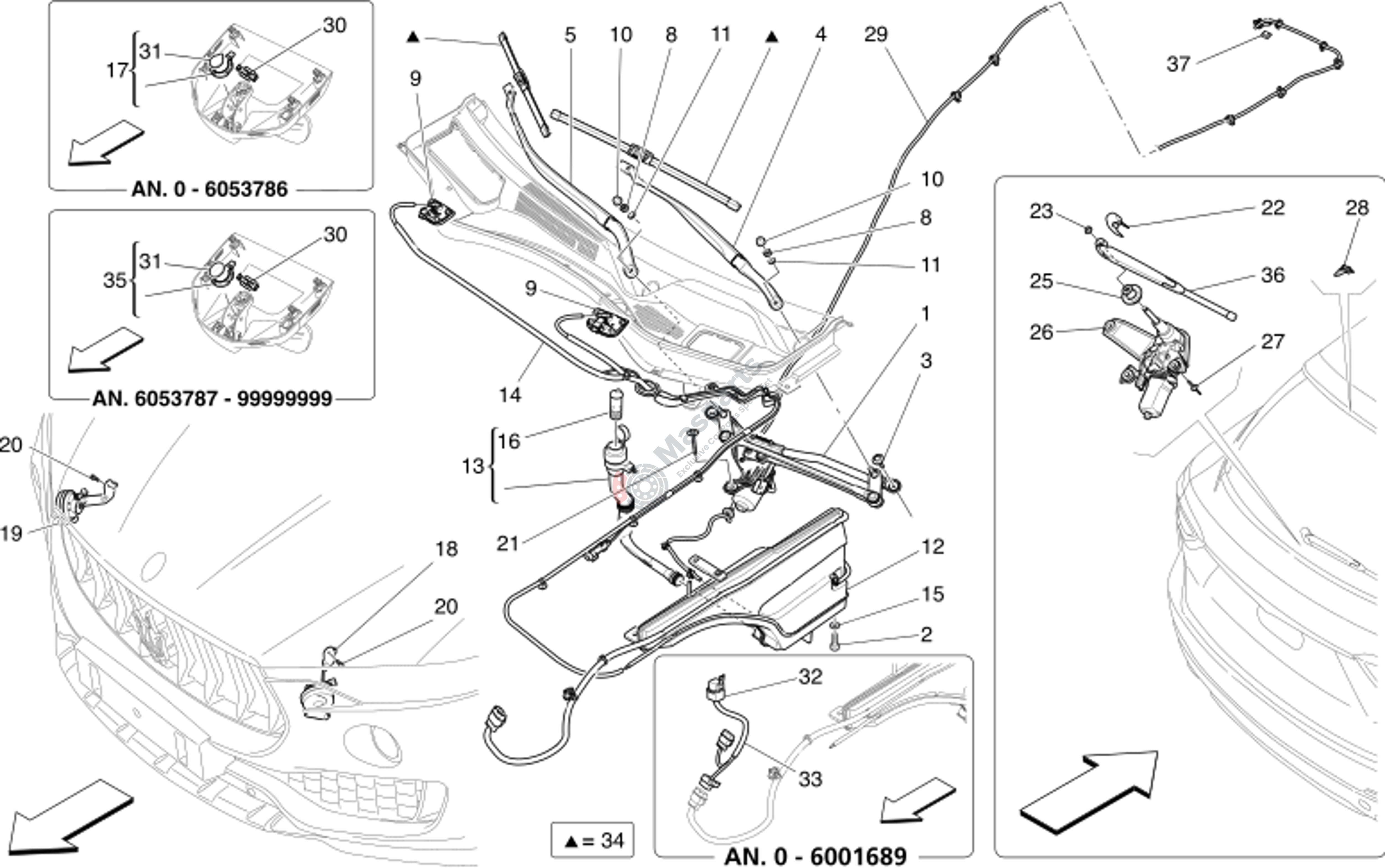

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670105984 | Windshield Wiper Motor |
$404.26 |
|
|
| 2 | M-670030635 | Screw |
$2.05 |
|
|
| 3 | M-670005392 | Screw |
$3.79 |
|
|
| 4 | M-670032335 | Lh Windscreen Wiper Arm |
$162.85 |
|
|
| 5 | M-670032336 | Passenger Side Windscreen Wiper Arm |
$144.86 |
|
|
| 8 | M-675000175 | Nut |
$0.98 |
|
|
| 10 | M-670007188 | Protection Boot. |
$1.09 |
|
|
| 11 | M-675000176 | Washer |
$1.10 |
|
|
| 13 | M-670032344 | Windshield Washer Hose |
$41.53 |
|
|
| 15 | M-670030893 | Special Washer |
$2.86 |
|
|
| 20 | M-675000433 | Screw |
$1.63 |
|
|
| 21 | M-670005392 | Screw |
$3.79 |
|
|
| 22 | M-670037445 | Cap |
$9.92 |
|
|
| 23 | M-675000582 | Nut |
$1.23 |
|
|
| 25 | M-670035110 | Gasket |
$10.98 |
|
|
| 26 | M-675000620 | Rear Liftgate Windscreen Wip |
$104.42 |
|
|
| 27 | M-675000593 | Rivet |
$1.47 |
|
|
| 28 | M-675000581 | Rear Window Washer Jets M161 |
$4.62 |
|
|
| 29 | M-670033525 | Hose Liftgate Washer |
$39.41 |
|
|
| 30 | M-675000651 | Clip Rain Sensor |
$5.59 |
|
|
| 34 | M-673013657 | Lhd Wiper Set |
$58.81 |
|
|
| 36 | M-670107927 | Rear Liftgate Window Wiper A |
$44.12 |
|
|
| 37 | M-675002230 | Clip |
$3.17 |
|
