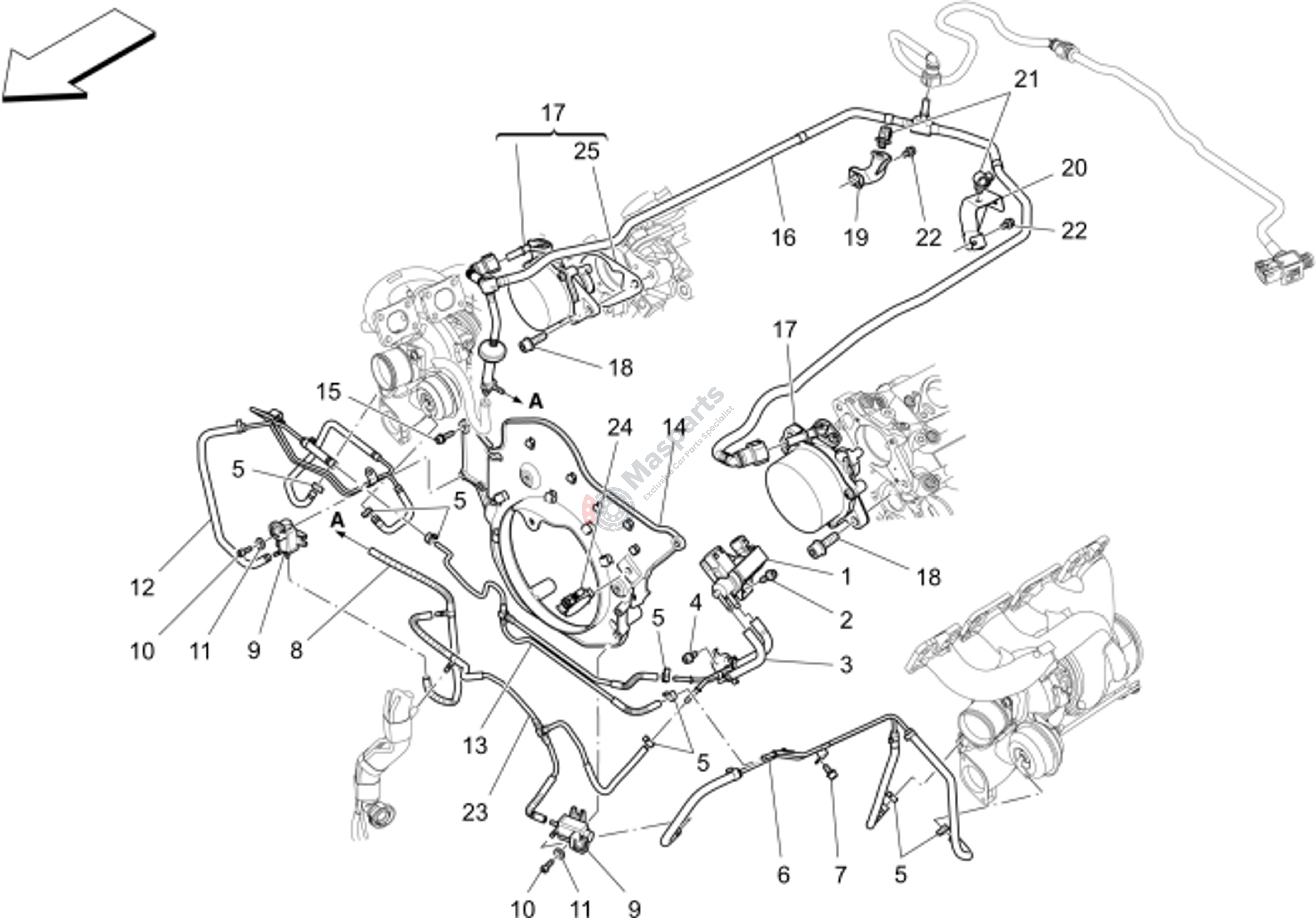

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-287732 | Valve |
€65,21 |
|
|
| 2 | M-231617 | Socket Head Screw With Washe |
€2,13 |
|
|
| 3 | M-294143 | Wg-Dv Control Pipes |
€94,35 |
|
|
| 4 | M-231616 | Screw |
€1,81 |
|
|
| 5 | M-13125070 | Collar |
€1,43 |
|
|
| 6 | M-797774 | Lh Wg-Dv Control Pipe |
€339,15 |
|
|
| 7 | M-231616 | Screw |
€1,81 |
|
|
| 8 | M-299445 | Pipe From Solenoid Valve To |
€27,29 |
|
|
| 9 | M-315769 | On/Off Solenoid Valve |
€56,78 |
|
|
| 10 | M-14304624 | Screw |
€0,85 |
|
|
| 11 | M-12601174 | Washer |
€1,38 |
|
|
| 12 | M-756928 | Rh Wg-Dv Control Pipe |
€314,50 |
|
|
| 13 | M-297635 | Upper Fixed Pipe On Guard Be |
€37,57 |
|
|
| 14 | M-295314 | Shield |
€33,42 |
|
|
| 15 | M-231619 | Socket Head Screw With Washe |
€2,13 |
|
|
| 16 | M-782715 | Vacuum Pump Pipe |
€246,50 |
|
|
| 17 | M-303259 | Vacuum Pump (V8) |
€510,00 |
|
|
| 18 | M-231628 | Screw |
€2,13 |
|
|
| 19 | M-288906 | Bracket |
€20,33 |
|
|
| 20 | M-287562 | Bracket |
€36,62 |
|
|
| 21 | M-222826 | Clip |
€5,00 |
|
|
| 22 | M-231616 | Screw |
€1,81 |
|
|
| 23 | M-297636 | Lower Fixed Pipe On Guard Be |
€57,60 |
|
|
| 24 | M-292206 | Pipe Retaining Clip |
€3,18 |
|
|
| 25 | M-295436 | Vacuum Pump Gasket |
€26,50 |
|
