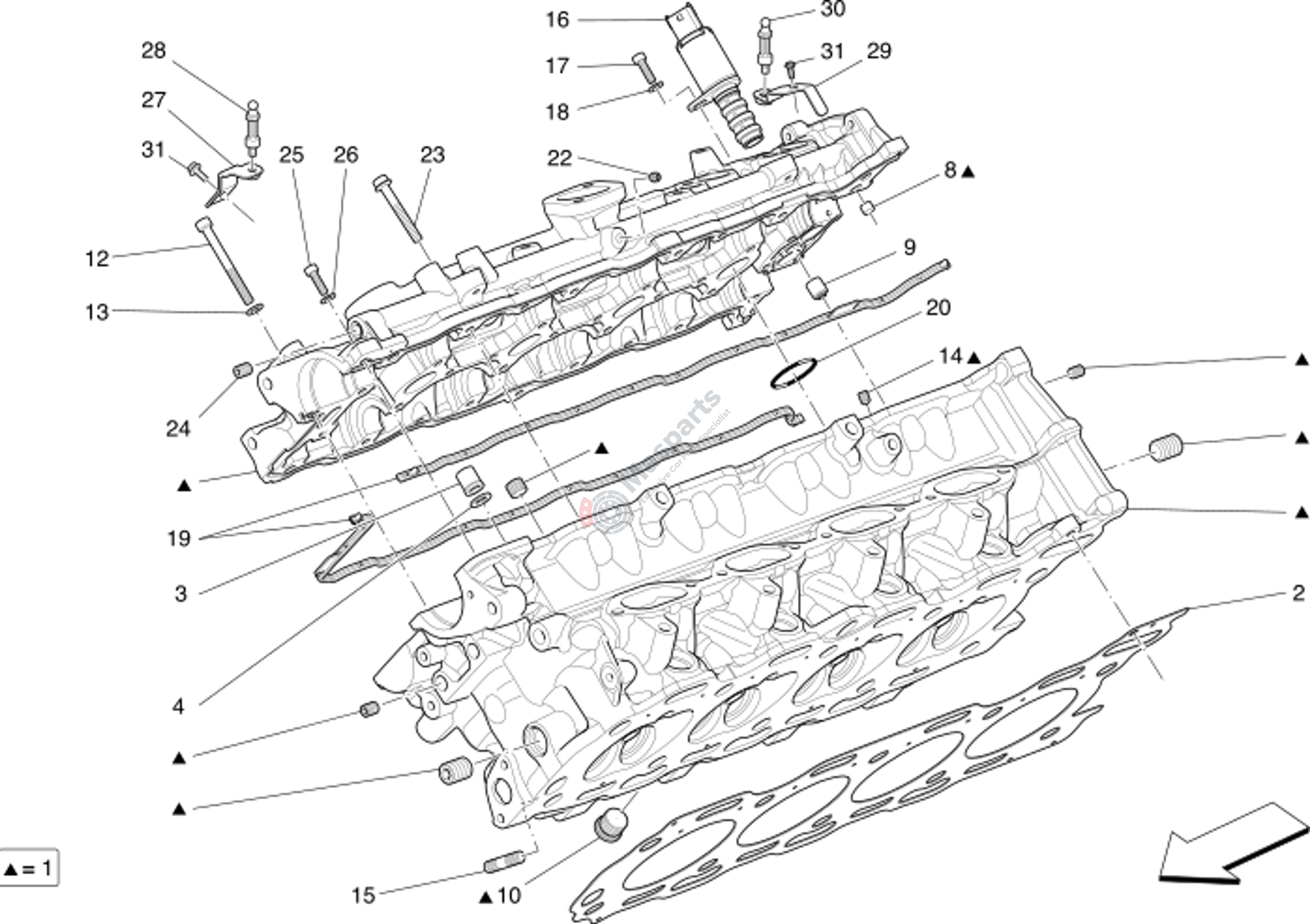

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-342960 | Rh Head Assembly |
$4,413.14 |
|
|
| 2 | M-278645 | Rh Head-Crankcase Gasket |
$379.32 |
|
|
| 3 | M-271125 | Nut |
$11.54 |
|
|
| 4 | M-271129 | Washer |
$3.56 |
|
|
| 8 | M-276793 | Dowel |
$3.56 |
|
|
| 9 | M-342272 | Nonreturn Valve |
$17.84 |
|
|
| 10 | M-325719 | Threaded Plug |
$2.54 |
|
|
| 12 | M-296759 | Screw |
$2.26 |
|
|
| 13 | M-296075 | Kok 13X5.8 Washer |
$14.23 |
|
|
| 14 | M-226414 | Threaded Dowel M5X8 - Hole D |
$6.45 |
|
|
| 15 | M-794716 | Stud |
$14.74 |
|
|
| 16 | M-801187 | Oil Pressure Check Valve |
$176.18 |
|
|
| 17 | M-14304224 | Screw |
$1.67 |
|
|
| 18 | M-11181574 | Tapered Rubber Washer D. 5.3 |
$1.67 |
|
|
| 19 | M-673009080 | Rh Head Cover Gaskets |
$44.52 |
|
|
| 20 | M-166657 | O-Ring |
$1.68 |
|
|
| 22 | M-199760 | Tapered Threaded Plug 6X1 |
$1.48 |
|
|
| 23 | M-14303821 | Screw |
$14.89 |
|
|
| 24 | M-277903 | Threaded Plug. |
$1.60 |
|
|
| 25 | M-231620 | Socket Head Screw With Washe |
$1.59 |
|
|
| 26 | M-296075 | Kok 13X5.8 Washer |
$14.23 |
|
