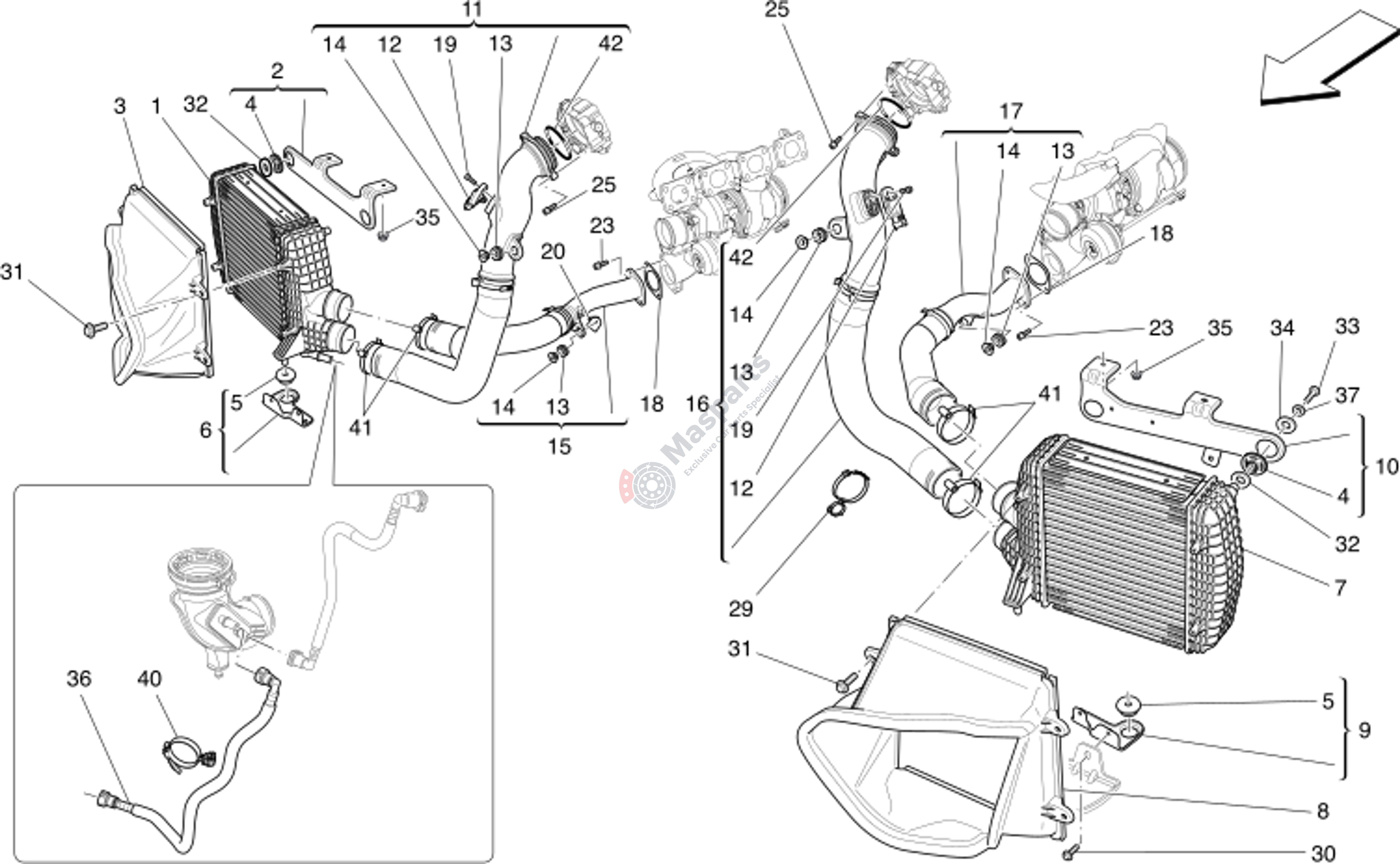

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670103670 | R.H. Intercooler |
$429.08 |
|
|
| 2 | M-670031962 | Rh Intercooler Bracket |
$32.04 |
|
|
| 3 | M-670300486 | INTERCOOL AIR CONVEYOR |
$57.11 |
|
|
| 4 | M-670009576 | Intercooler Elastic Support |
$6.58 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
$3.18 |
|
|
| 6 | M-670031963 | Rh Lower Intercooler Bracket |
$60.95 |
|
|
| 7 | M-670103671 | L.H. Intercooler |
$408.50 |
|
|
| 8 | M-670300489 | Lh Side Air Duct |
$55.54 |
|
|
| 9 | M-670031960 | Lh Lower Intercooler Bracket |
$69.03 |
|
|
| 10 | M-670031961 | Lh Intercooler Bracket |
$36.36 |
|
|
| 11 | M-670103764 | Pipe Between Intercooler And |
$245.89 |
|
|
| 12 | M-675000014 | Pressure Sensor |
$121.91 |
|
|
| 13 | M-675000016 | Rubber Bushing |
$5.79 |
|
|
| 14 | M-675000017 | Spacer |
$8.20 |
|
|
| 15 | M-670103766 | Sleeve From Turbine To Rh In |
$242.95 |
|
|
| 16 | M-670103765 | Sleeve |
$350.71 |
|
|
| 17 | M-670103767 | Sleeve From Turbine To Lh In |
$220.42 |
|
|
| 18 | M-670006209 | Gasket For Air Delivery Pipe |
$16.51 |
|
|
| 19 | M-675000190 | Screw |
$2.93 |
|
|
| 20 | M-670103782 | Rh Bracket |
$18.03 |
|
|
| 23 | M-675000375 | Screw |
$0.76 |
|
|
| 25 | M-675000376 | Screw |
$1.39 |
|
|
| 29 | M-670005919 | Retaining Clip |
$3.67 |
|
|
| 30 | M-675000087 | Screw |
$3.56 |
|
|
| 31 | M-675000354 | Screw |
$2.71 |
|
|
| 32 | M-670009712 | Washer |
$11.12 |
|
|
| 34 | M-670039441 | Washer |
$13.06 |
|
|
| 36 | M-670104113 | Vapour Pipe |
$42.77 |
|
|
| 37 | M-675000718 | Washer |
$2.24 |
|
|
| 40 | M-670101334 | Clip |
$3.07 |
|
|
| 41 | M-675000685 | Collar |
$7.56 |
|
|
| 42 | M-14464786 | O-Ring |
$34.10 |
|
