Diagram image not available

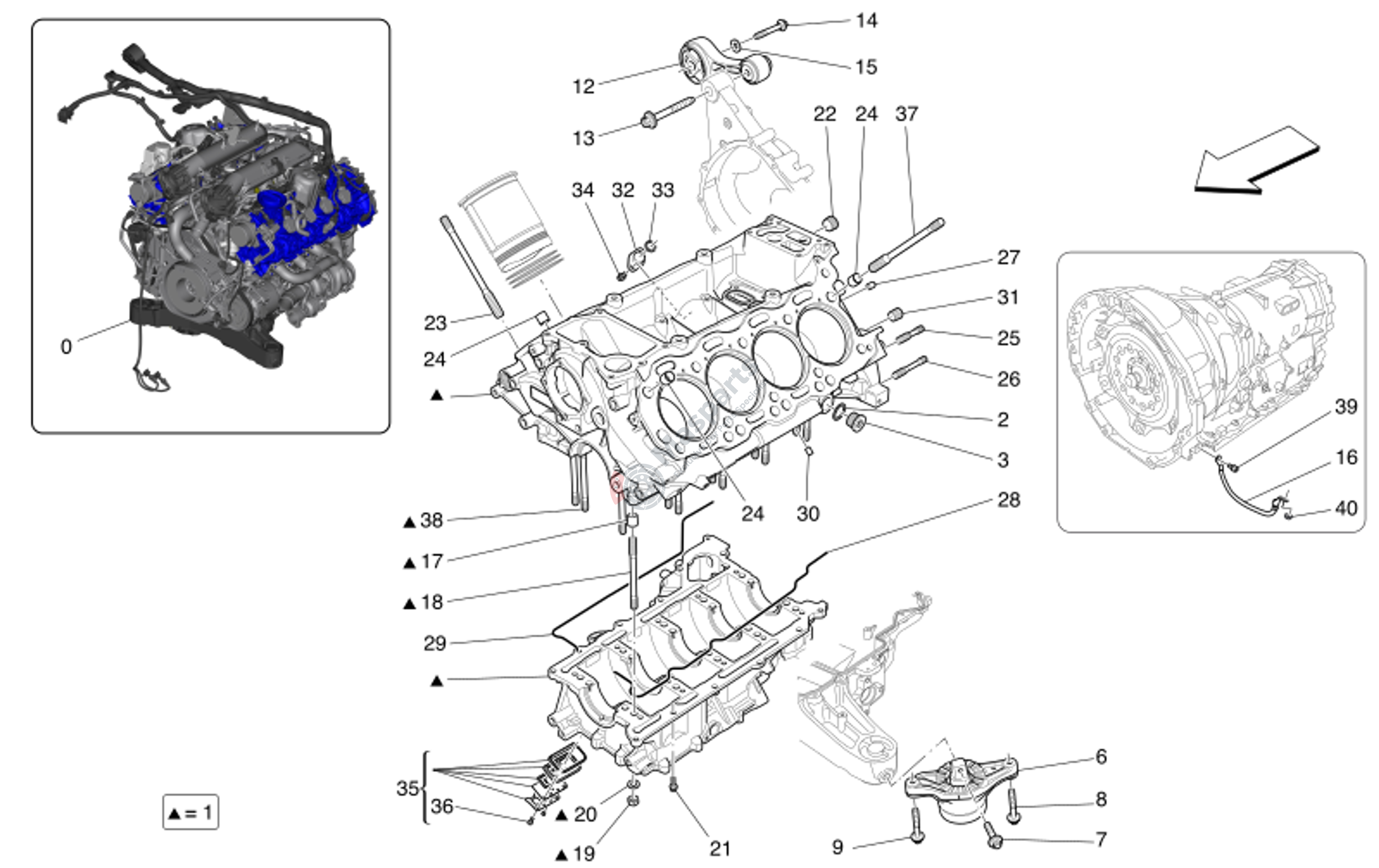

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670104135 | Cpl Engine V8 (Kw405+) |
$38,384.36 |
|
|
| 1 | M-838634 | Engine Block |
$5,853.94 |
|
|
| 2 | M-10263460 | Gasket 22- 28X 1.5 |
$1.73 |
|
|
| 3 | M-282754 | Threaded Plug |
$6.58 |
|
|
| 6 | M-670103986 | Rh Engine Bushing |
$292.64 |
|
|
| 7 | M-670038507 | Special Screw |
$5.77 |
|
|
| 8 | M-670103983 | Screw |
$24.67 |
|
|
| 9 | M-670035588 | Fastening Screw |
$9.62 |
|
|
| 12 | M-670103985 | High Link Rod |
$83.50 |
|
|
| 13 | M-670103996 | Screw |
$7.67 |
|
|
| 14 | M-675000051 | Screw ˇ |
$2.72 |
|
|
| 16 | M-670104432 | Cable For Engine-Frame Earth |
$29.67 |
|
|
| 17 | M-102725 | Centring Dowel D.8X8 |
$1.73 |
|
|
| 18 | M-270465 | Threaded Stud |
$28.60 |
|
|
| 19 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.80 |
|
|
| 20 | M-178348 | Machined Washer D.10.2-20X2. |
$3.67 |
|
|
| 21 | M-231620 | Socket Head Screw With Washe |
$1.63 |
|
|
| 22 | M-282753 | Threaded Plug |
$8.18 |
|
|
| 23 | M-270464 | Threaded Stud |
$26.43 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.41 |
|
|
| 25 | M-278120 | Threaded Stud |
$30.10 |
|
|
| 26 | M-278119 | Threaded Stud |
$28.06 |
|
|
| 27 | M-311001 | Centering Dowel |
$9.50 |
|
|
| 28 | M-339289 | Lh Crankcase Gasket |
$53.55 |
|
|
| 29 | M-339298 | Rh Crankcase Gasket |
$114.51 |
|
|
| 31 | M-291078 | Threaded Plug |
$3.60 |
|
|
| 32 | M-265562 | Flange |
$22.93 |
|
|
| 33 | M-264447 | O-Ring |
$1.11 |
|
|
| 34 | M-231617 | Socket Head Screw With Washe |
$2.45 |
|
|
| 35 | M-255138 | Blow By Valve Assembly |
$72.47 |
|
|
| 37 | M-271564 | Threaded Stud |
$30.10 |
|
|
| 38 | M-270466 | Threaded Stud |
$32.04 |
|
