Diagram image not available

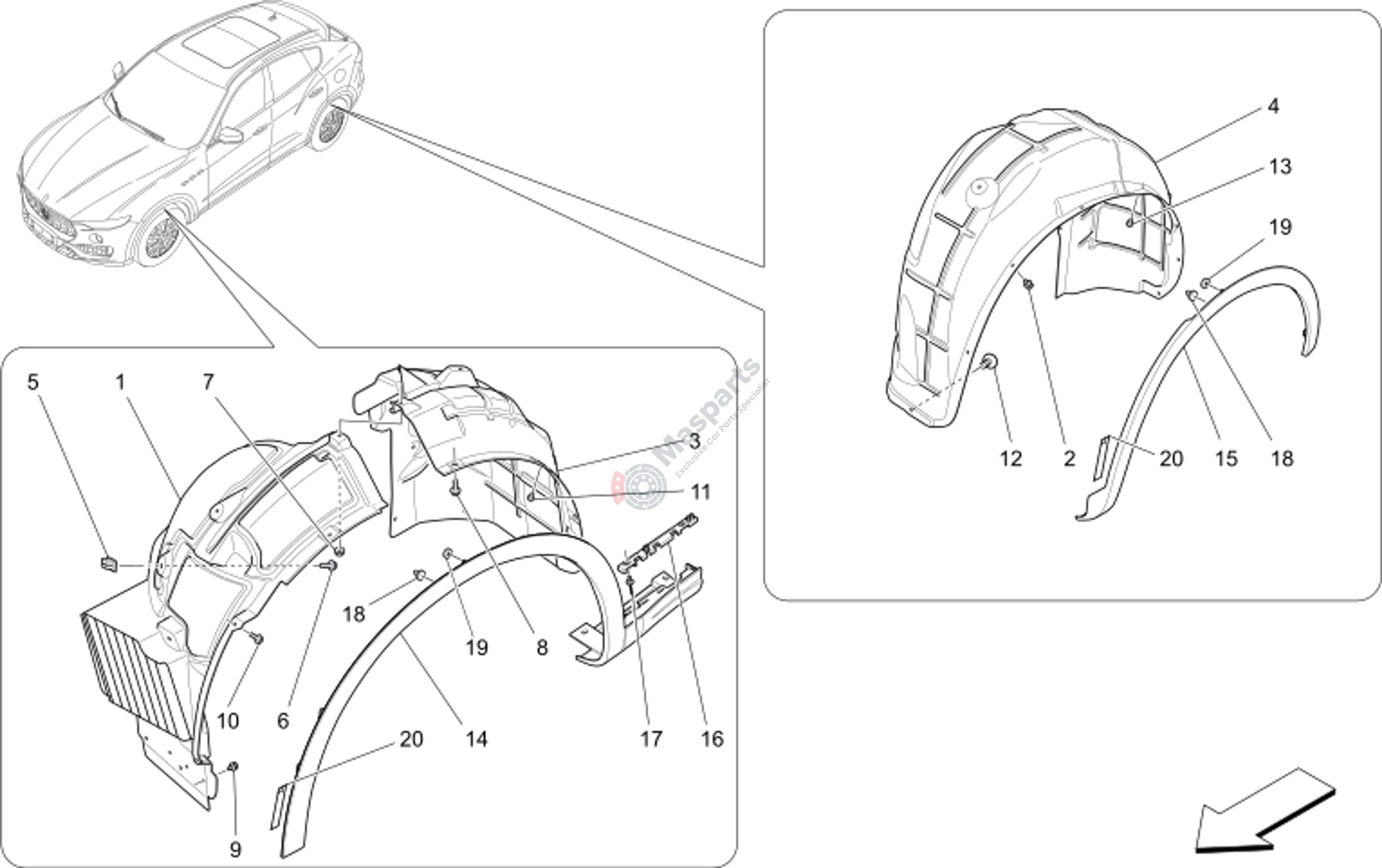

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102313 | Rh Front Wheelhouse Guard Fr |
$161.50 |
|
|
| 2 | M-675000629 | Fastening Clip |
$2.08 |
|
|
| 3 | M-670106676 | Rh Front Wheelhouse Guard Re |
$183.24 |
|
|
| 4 | M-670217118 | Rh Wheelhouse Guard |
$116.51 |
|
|
| 5 | M-675000327 | Fastening Block |
$0.95 |
|
|
| 6 | M-675000326 | Screw |
$1.93 |
|
|
| 7 | M-675000324 | Special Nut |
$1.24 |
|
|
| 8 | M-675000294 | Pin |
$2.45 |
|
|
| 9 | M-670009112 | Fastening Pin |
$3.60 |
|
|
| 10 | M-675000326 | Screw |
$1.93 |
|
|
| 11 | M-670003320 | Fastening Button |
$1.68 |
|
|
| 12 | M-670009112 | Fastening Pin |
$3.60 |
|
|
| 13 | M-675000326 | Screw |
$1.93 |
|
|
| 14 | M-670089060 | Rh Front Wheel Arch (Primeri |
$495.15 |
|
|
| 16 | M-670006112 | Bracket |
$7.20 |
|
|
| 18 | M-675000609 | Pin |
$3.97 |
|
|
| 19 | M-670036883 | Wheelhouse Liner Adhesive Bu |
$2.40 |
|
|
| 20 | M-670105674 | Adhesive Tape |
$2.25 |
|
