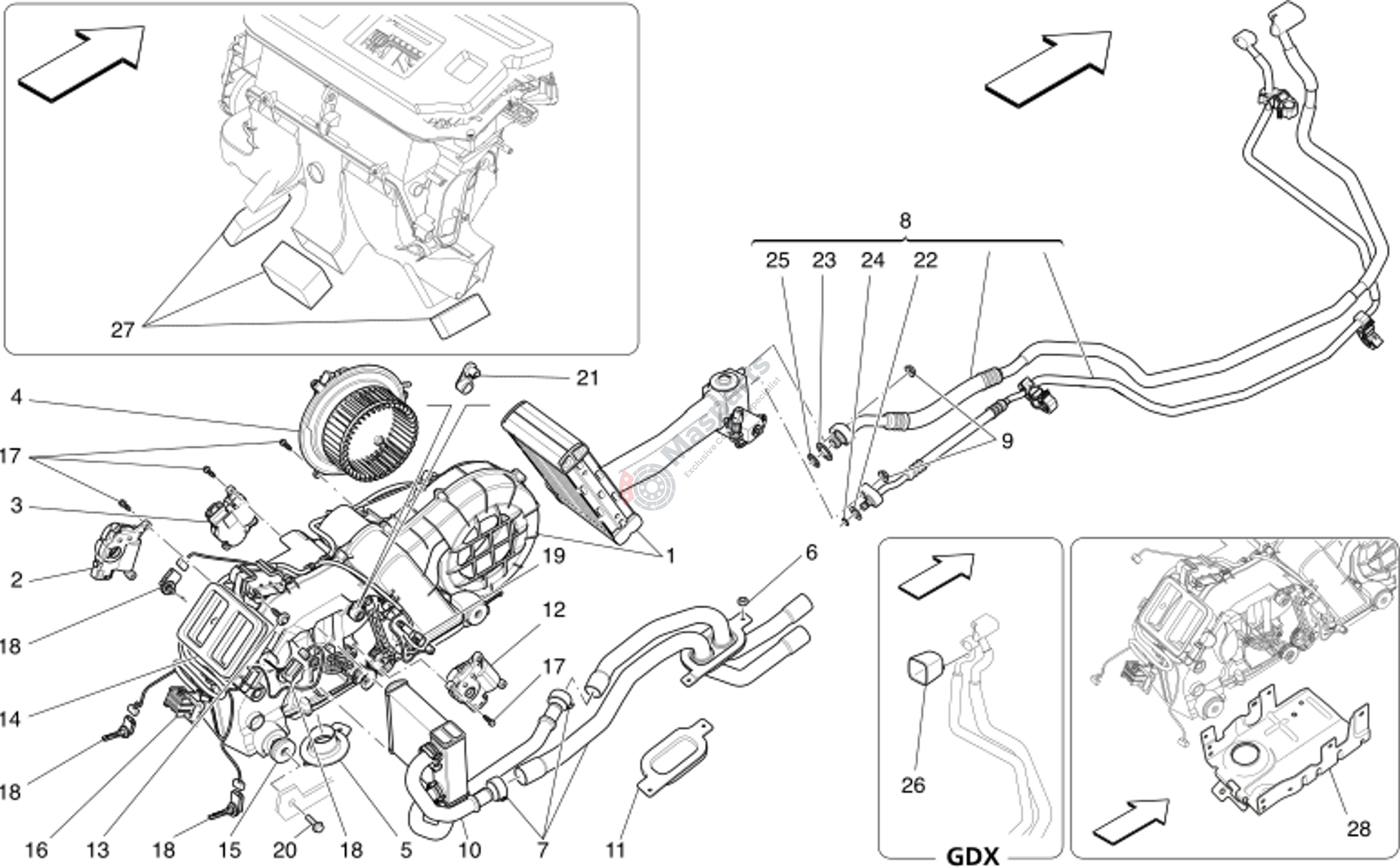

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673002681 | Rear Air Conditioning Case |
$1,418.49 |
|
|
| 2 | M-670035896 | Rear Hvac Distrib. Actuator |
$136.89 |
|
|
| 3 | M-670035898 | Rear Hvac Lh Distrib. Actuat |
$136.89 |
|
|
| 6 | M-675000093 | Nut |
$1.49 |
|
|
| 7 | M-673007341 | Evaporator Rubber Pipes Assy |
$287.67 |
|
|
| 9 | M-675000328 | Nut |
$1.41 |
|
|
| 10 | M-673000042 | Asm Heater Core/Pipes |
$425.55 |
|
|
| 11 | M-670005088 | Rubber Cap |
$28.41 |
|
|
| 12 | M-670035897 | Rear Hvac Rh Distrib. Actuat |
$136.89 |
|
|
| 13 | M-673000049 | Screw And Washer |
$30.24 |
|
|
| 14 | M-673000050 | Gasket |
$32.12 |
|
|
| 15 | M-673000044 | Rubber |
$64.26 |
|
|
| 16 | M-673002682 | Rear Cooler Wiring Harness |
$379.37 |
|
|
| 17 | M-68391900 | Screw. |
$2.97 |
|
|
| 18 | M-673000046 | Sensor |
$144.52 |
|
|
| 19 | M-673000045 | Sensor |
$49.13 |
|
|
| 20 | M-675000436 | Screw |
$2.48 |
|
|
| 21 | M-673007371 | Actuator Lever Rh/Lh |
$48.61 |
|
|
| 22 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.97 |
|
|
| 23 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.41 |
|
|
| 24 | M-675000119 | O-Ring 68X187 |
$2.01 |
|
|
| 25 | M-675000306 | O-Ring 136X243 |
$1.98 |
|
|
| 27 | M-670152733 | Buffer |
$31.67 |
|
|
| 28 | M-670109782 | Hvac Fixing Bracket Dx |
$29.20 |
|
