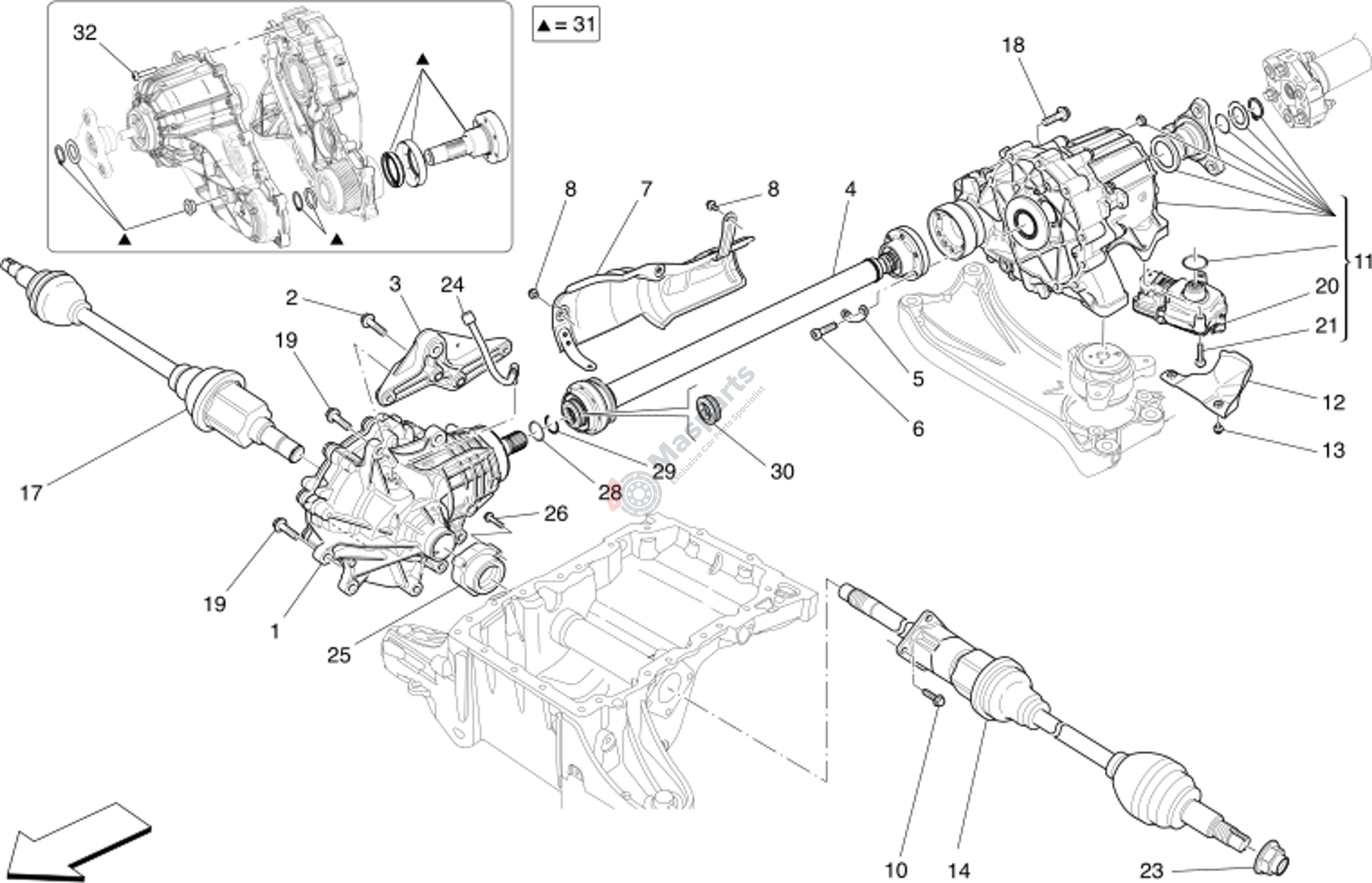

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670104057 | Cpl Front Differential |
$1,912.91 |
|
|
| 2 | M-14306534 | Screw |
$2.45 |
|
|
| 3 | M-768641 | Differential Fastening Brack |
$186.42 |
|
|
| 4 | M-670107694 | Front Drive Shaft |
$741.44 |
|
|
| 5 | M-670003772 | Plate |
$3.60 |
|
|
| 6 | M-675000583 | Screw |
$2.40 |
|
|
| 7 | M-670153213 | Heat Shield |
$58.03 |
|
|
| 8 | M-675000102 | Screw |
$2.57 |
|
|
| 10 | M-675000384 | Screw |
$5.04 |
|
|
| 12 | M-670004015 | Heat Shield |
$27.96 |
|
|
| 13 | M-675000102 | Screw |
$2.57 |
|
|
| 14 | M-670301924 | Semiasse Compl. Asse Ant. Sx |
$977.64 |
|
|
| 17 | M-670301923 | Semiasse Compl. Asse Ant. Dx |
$718.13 |
|
|
| 18 | M-675000386 | Screw |
$3.66 |
|
|
| 19 | M-675000385 | Screw |
$3.61 |
|
|
| 20 | M-670160290 | Transfer Case Control Unit |
$598.45 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.61 |
|
|
| 23 | M-675000138 | Nut |
$8.69 |
|
|
| 24 | M-670105684 | Pipe |
$24.37 |
|
|
| 26 | M-46328688 | Flange Bolt |
$3.07 |
|
|
| 28 | M-673008007 | O-Ring |
$5.04 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.51 |
|
|
| 30 | M-675000719 | Gasket |
$2.75 |
|
