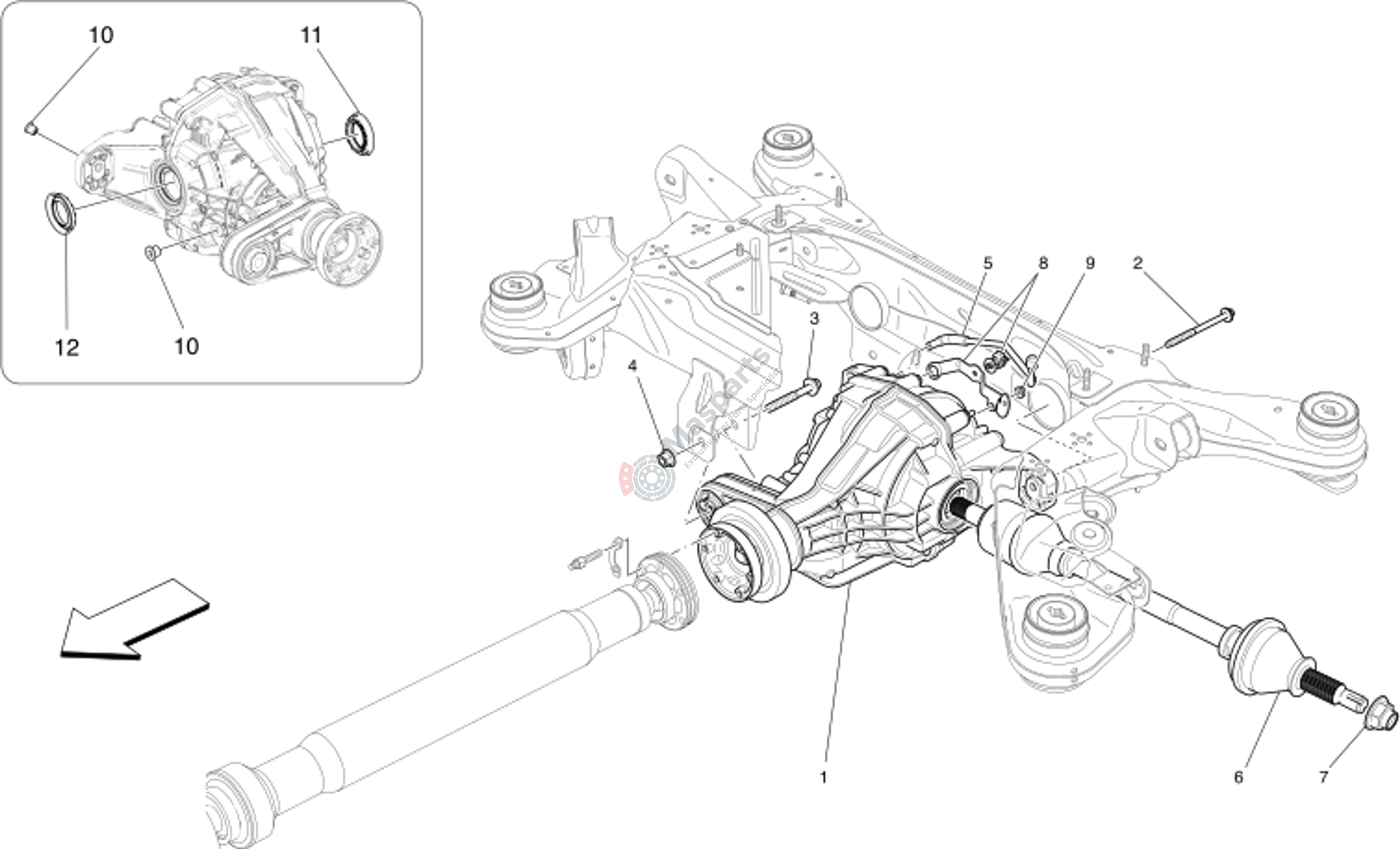

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670218942 | Rear Differential |
$1,270.12 |
|
|
| 2 | M-670035637 | Screw |
$3.77 |
|
|
| 3 | M-670035584 | Screw |
$4.72 |
|
|
| 4 | M-670035585 | Nut |
$4.67 |
|
|
| 5 | M-670033034 | Rear Differential Vent Hose |
$18.10 |
|
|
| 6 | M-670032036 | Axle Shaft |
$788.05 |
|
|
| 7 | M-675000138 | Nut |
$9.12 |
|
|
| 8 | M-670033064 | Bracket Oil Vent Hose On Rr |
$8.36 |
|
|
| 9 | M-675000759 | Nut |
$0.82 |
|
|
| 10 | M-673014531 | Fill And Drain Plug |
$40.32 |
|
|
| 11 | M-673014533 | Lh Output Seal |
$55.17 |
|
|
| 12 | M-673014532 | Rh Output Seal |
$55.17 |
|
