Diagram image not available

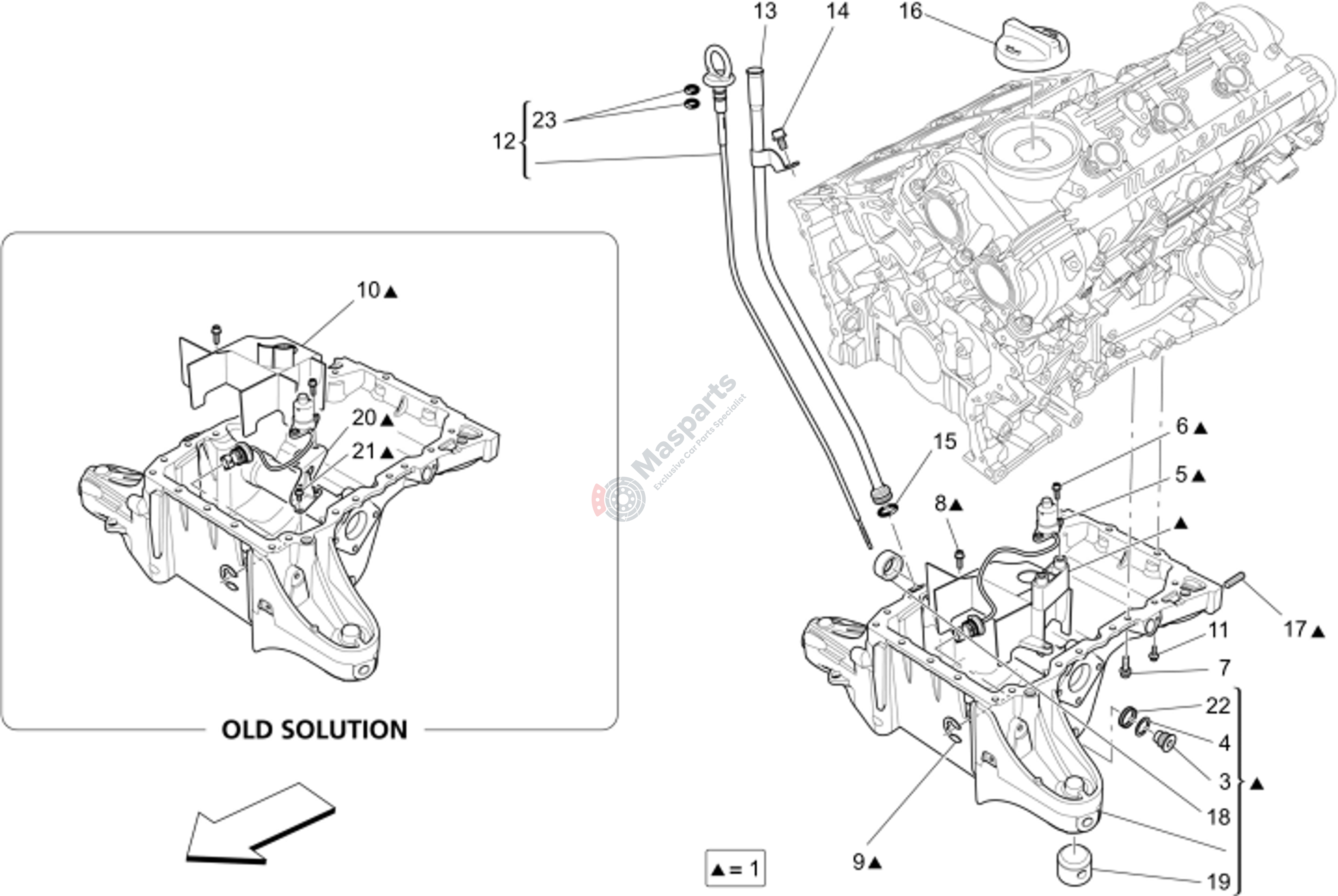

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-849084 | Cpl Oil Pan Assy (V6 Awd) |
$1,281.97 |
|
|
| 3 | M-104280 | Threaded Plug M 22X1.5 |
$12.28 |
|
|
| 4 | M-10261860 | Gasket 22- 30X 1.5 |
$1.13 |
|
|
| 5 | M-230171 | Oil Level Sensor |
$64.38 |
|
|
| 6 | M-282394 | Screw |
$2.45 |
|
|
| 7 | M-231629 | Socket Head Screw With Washe |
$2.45 |
|
|
| 8 | M-282394 | Screw |
$2.45 |
|
|
| 9 | M-16165276 | 3-Point Circlip D.19 |
$1.73 |
|
|
| 10 | M-291687 | Oil Sump Shield |
$18.99 |
|
|
| 11 | M-295634 | Screw |
$2.62 |
|
|
| 12 | M-315073 | Oil Level Rod |
$41.98 |
|
|
| 13 | M-789110 | Oil Dipstick Holder Extensio |
$72.26 |
|
|
| 14 | M-233600 | Screw |
$2.35 |
|
|
| 15 | M-282370 | O-Ring |
$2.45 |
|
|
| 16 | M-293205 | Engine Oil Filler Cap |
$31.46 |
|
|
| 17 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.62 |
|
|
| 18 | M-294812 | Bushing |
$97.23 |
|
|
| 19 | M-294029 | Bushing |
$727.67 |
|
|
| 20 | M-299494 | Bracket |
$13.09 |
|
|
| 21 | M-282394 | Screw |
$2.45 |
|
|
| 22 | M-223577 | Threaded Fitting M22X1.5X11 |
$3.72 |
|
|
| 23 | M-306702 | O-Ring 615X210 |
$6.51 |
|
