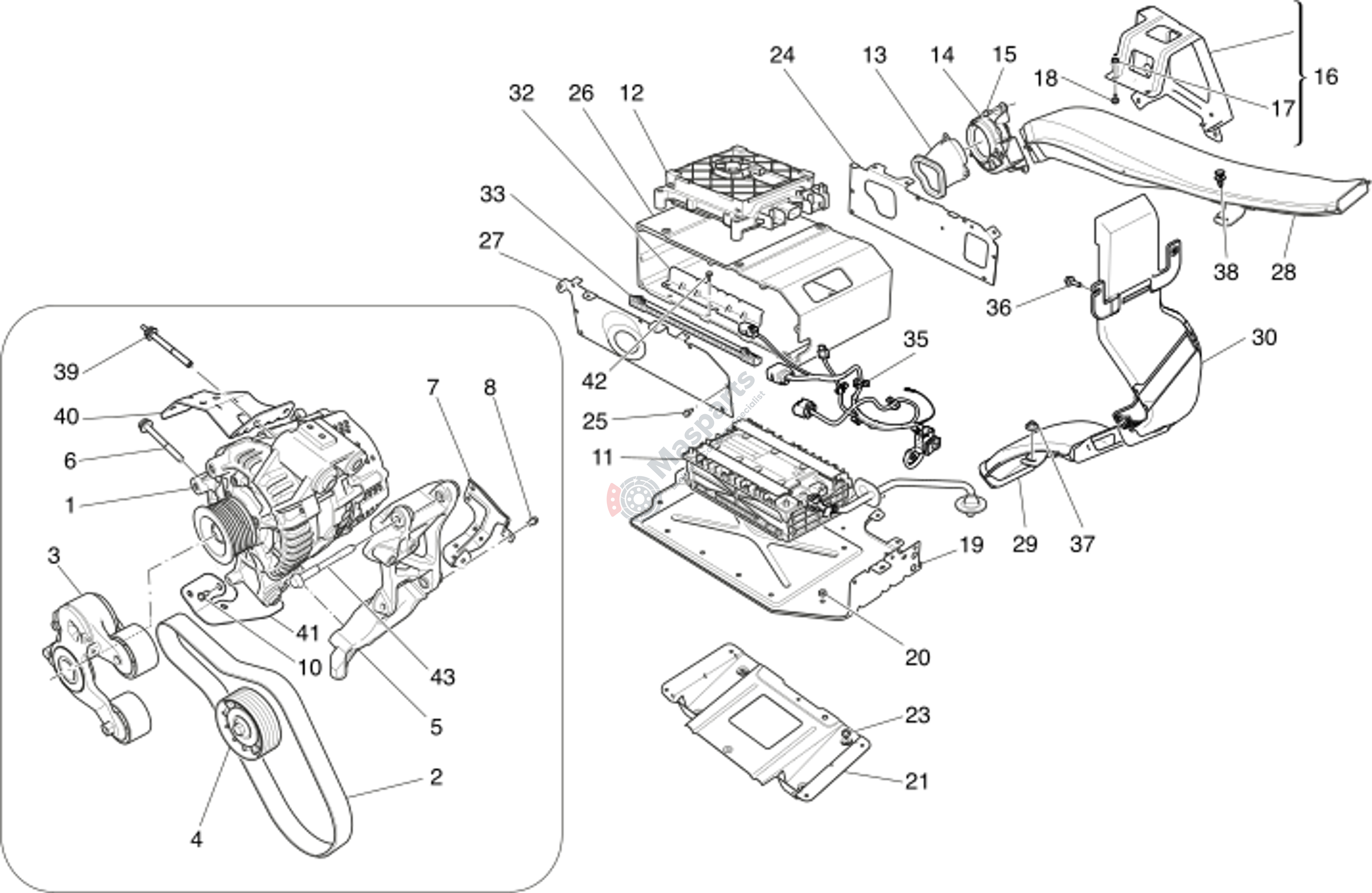

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670219336 | Electric Motor-Generator |
$2,234.58 |
|
|
| 3 | M-670054306 | Automatic Access.Drive Belt |
$218.78 |
|
|
| 4 | M-670053819 | Pulley |
$58.13 |
|
|
| 5 | M-670154512 | Bracket |
$263.82 |
|
|
| 6 | M-670181578 | Screw |
$4.88 |
|
|
| 7 | M-670154513 | Cable Guide Bracket |
$8.69 |
|
|
| 8 | M-675000172 | Screw |
$1.03 |
|
|
| 11 | M-670162269 | 48V Battery |
$1,369.42 |
|
|
| 12 | M-670154698 | Converter |
$756.07 |
|
|
| 13 | M-670174908 | Ventilation Shaft Connection |
$14.22 |
|
|
| 14 | M-670156431 | Fan |
$3,173.92 |
|
|
| 15 | M-675001444 | Screw |
$2.48 |
|
|
| 16 | M-670222541 | Bracket |
$39.04 |
|
|
| 17 | M-675000273 | Nut |
$1.00 |
|
|
| 18 | M-675000436 | Screw |
$2.48 |
|
|
| 19 | M-670157157 | Bracket |
$77.70 |
|
|
| 20 | M-675000273 | Nut |
$1.00 |
|
|
| 21 | M-670293144 | Bracket |
$22.52 |
|
|
| 23 | M-675001132 | Screw |
$0.91 |
|
|
| 24 | M-670159054 | Closing Plate |
$17.23 |
|
|
| 25 | M-675000308 | Screw |
$1.68 |
|
|
| 26 | M-670157158 | Battery Support |
$462.22 |
|
|
| 27 | M-670157159 | Closing Plate |
$19.35 |
|
|
| 28 | M-670174909 | Air Ducting |
$95.69 |
|
|
| 29 | M-670174910 | Air Ducting |
$86.71 |
|
|
| 30 | M-670174907 | Air Ducting |
$167.45 |
|
|
| 32 | M-670157161 | Bracket |
$24.97 |
|
|
| 33 | M-670158538 | Spacer |
$13.26 |
|
|
| 35 | M-670155072 | Connecting Cable |
$84.36 |
|
|
| 36 | M-675000556 | Screw |
$2.11 |
|
|
| 37 | M-675000325 | Plastic Nut |
$1.24 |
|
|
| 38 | M-675001447 | Pin |
$1.51 |
|
|
| 39 | M-670175070 | Screw |
$5.68 |
|
|
| 40 | M-670174653 | Bracket |
$10.37 |
|
|
| 41 | M-670174652 | Bracket |
$10.37 |
|
|
| 42 | M-670160349 | Screw M5X12 |
$1.66 |
|
|
| 43 | M-670173139 | Screw |
$5.46 |
|
