Diagram image not available

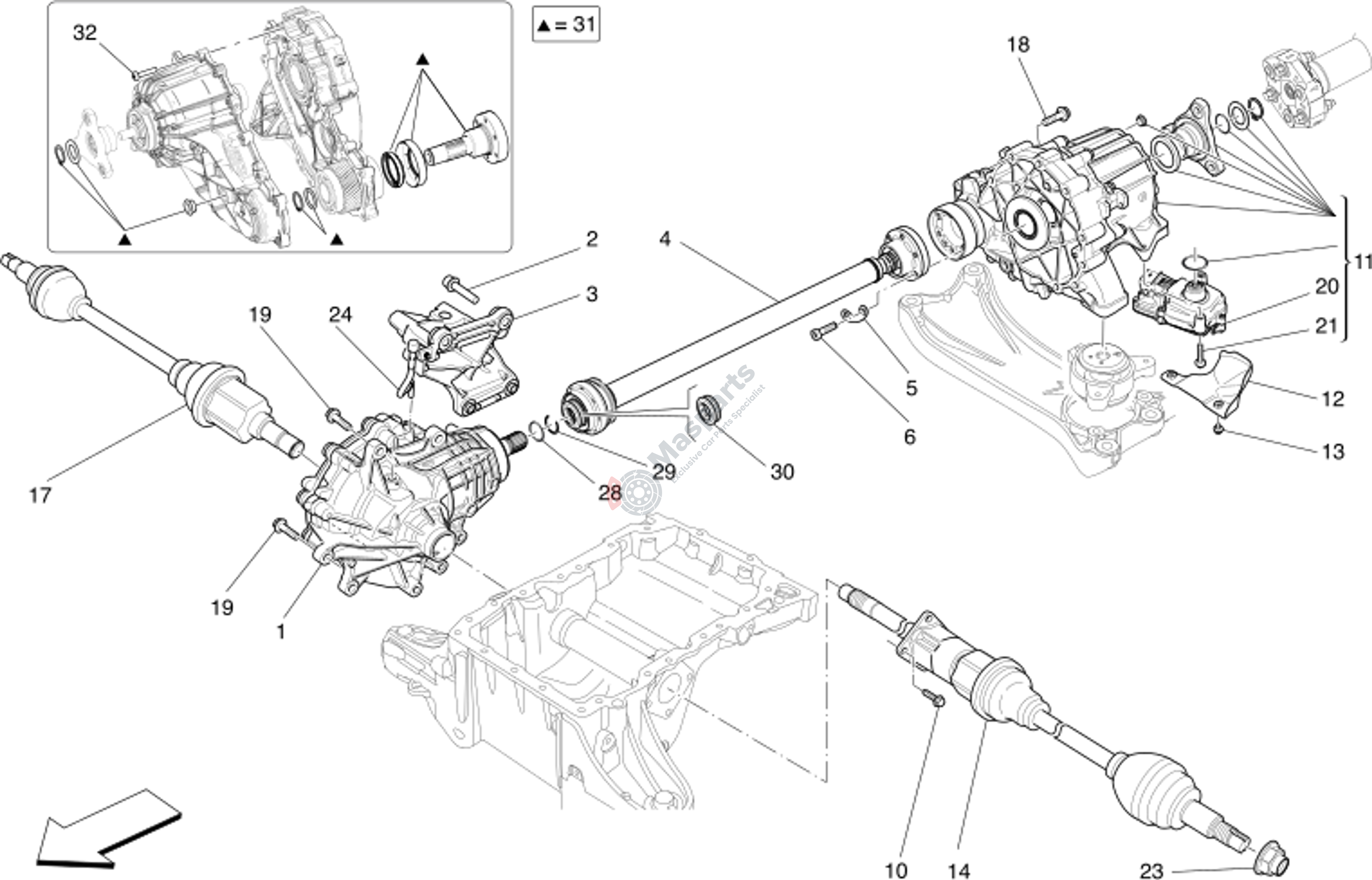

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670104057 | Cpl Front Differential |
$1,948.83 |
|
|
| 2 | M-675001128 | Screw |
$2.49 |
|
|
| 3 | M-670162242 | Bracket |
$111.33 |
|
|
| 4 | M-670162240 | Front Transmission Crankshaf |
$677.53 |
|
|
| 5 | M-670003772 | Plate |
$3.72 |
|
|
| 6 | M-675000583 | Screw |
$2.45 |
|
|
| 10 | M-675000384 | Screw |
$5.14 |
|
|
| 12 | M-670162241 | Heat Shield |
$32.72 |
|
|
| 13 | M-675000365 | Screw |
$2.67 |
|
|
| 14 | M-670301924 | Semiasse Compl. Asse Ant. Sx |
$996.68 |
|
|
| 17 | M-670301923 | Semiasse Compl. Asse Ant. Dx |
$731.61 |
|
|
| 18 | M-675000386 | Screw |
$3.74 |
|
|
| 19 | M-675000385 | Screw |
$3.68 |
|
|
| 20 | M-670181796 | Tc Ecu |
$559.84 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.73 |
|
|
| 23 | M-675000138 | Nut |
$9.00 |
|
|
| 24 | M-670162243 | Pipe |
$22.24 |
|
|
| 28 | M-673008007 | O-Ring |
$5.21 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.62 |
|
|
| 30 | M-675000719 | Gasket |
$2.86 |
|
