Diagram image not available

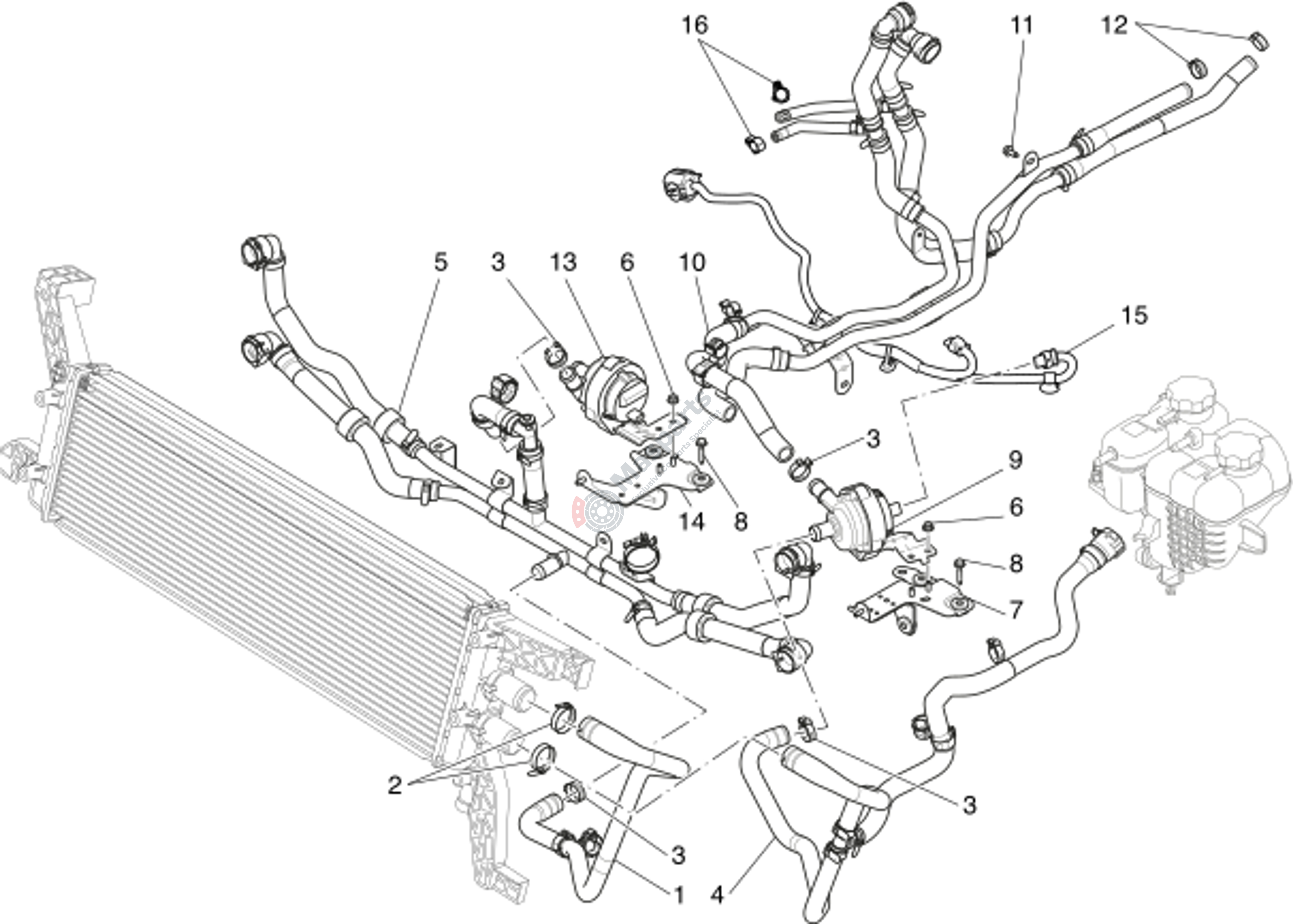

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670174766 | Pipe |
$91.11 |
|
|
| 3 | M-675000658 | Snap Collar |
$5.62 |
|
|
| 4 | M-670174765 | Sleeve |
$78.85 |
|
|
| 5 | M-670174767 | Sleeve |
$165.56 |
|
|
| 6 | M-675000794 | Flanged Nut |
$1.53 |
|
|
| 7 | M-670174781 | Bracket |
$48.34 |
|
|
| 8 | M-675000468 | Screw |
$2.28 |
|
|
| 9 | M-670174779 | Electric Pump |
$288.01 |
|
|
| 10 | M-670174951 | Sleeve |
$241.97 |
|
|
| 11 | M-675001117 | Screw |
$1.11 |
|
|
| 12 | M-675000372 | Strap Collar |
$1.80 |
|
|
| 13 | M-670154656 | Secondary Electric Water Pum |
$331.11 |
|
|
| 14 | M-670174926 | Bracket |
$48.34 |
|
|
| 15 | M-670155291 | Water Pump Bridle |
$40.65 |
|
|
| 16 | M-675000369 | Strap Collar |
$1.71 |
|
