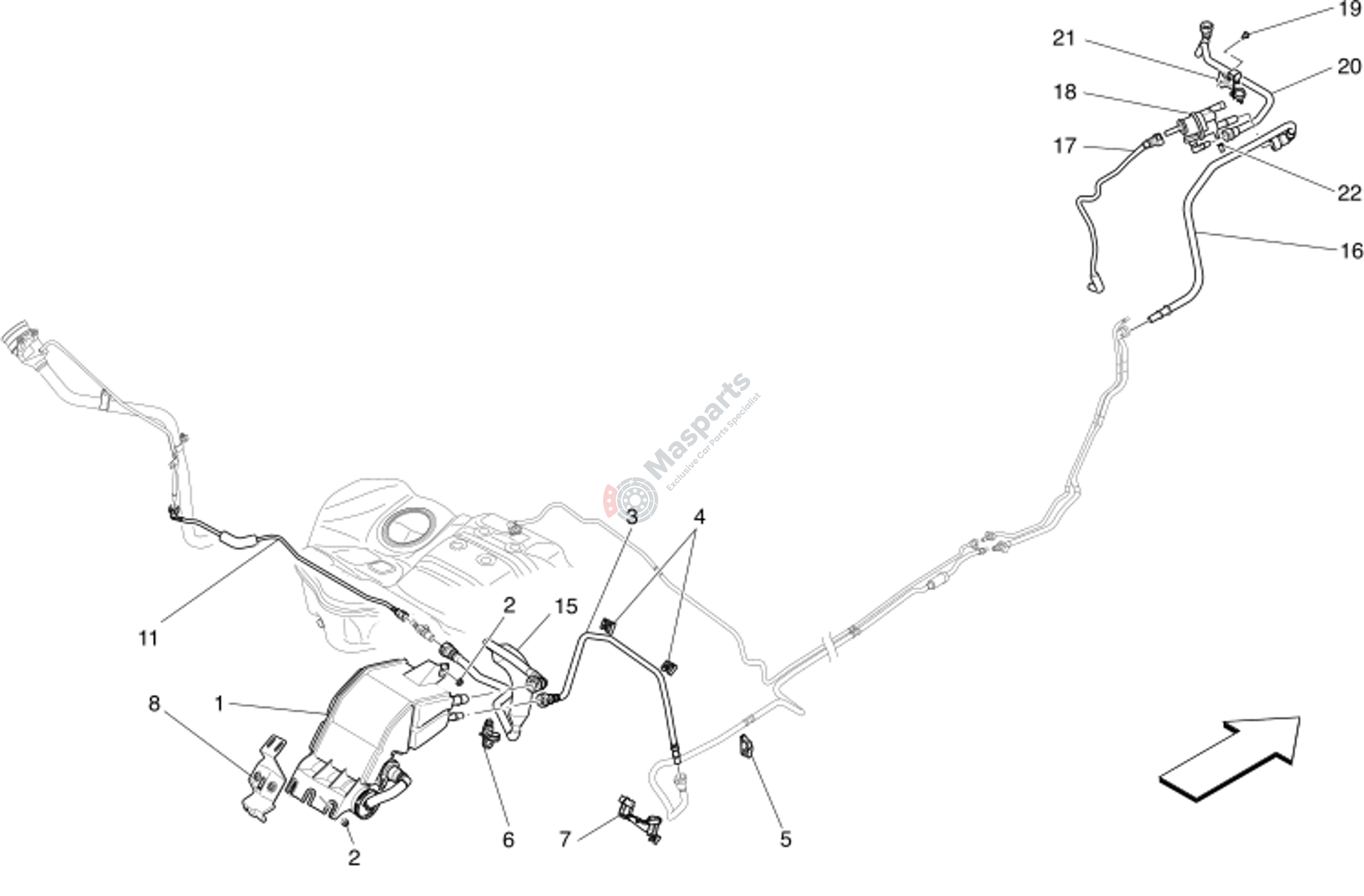

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033287 | Fuel Vapour Filter |
$201.96 |
|
|
| 2 | M-675000095 | Nut |
$0.79 |
|
|
| 3 | M-670033294 | Canister Pipe |
$33.17 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.13 |
|
|
| 5 | M-670033279 | Clip |
$2.87 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.22 |
|
|
| 7 | M-670031947 | Vapour System Clip |
$10.26 |
|
|
| 8 | M-670217138 | Canister Bracket |
$15.61 |
|
|
| 11 | M-670033572 | Flexible Vapour Pipe |
$36.29 |
|
|
| 15 | M-670033274 | Vent Pipe |
$94.47 |
|
|
| 16 | M-670174692 | Pipe |
$60.19 |
|
|
| 17 | M-675000981 | Flexible Pipe |
$195.20 |
|
|
| 18 | M-675000977 | Spurge Valve |
$198.17 |
|
|
| 19 | M-675000172 | Screw |
$1.03 |
|
|
| 20 | M-670174654 | Pipe |
$32.91 |
|
|
| 21 | M-670174656 | Pipe |
$7.10 |
|
|
| 22 | M-675000982 | Plug |
$14.12 |
|
